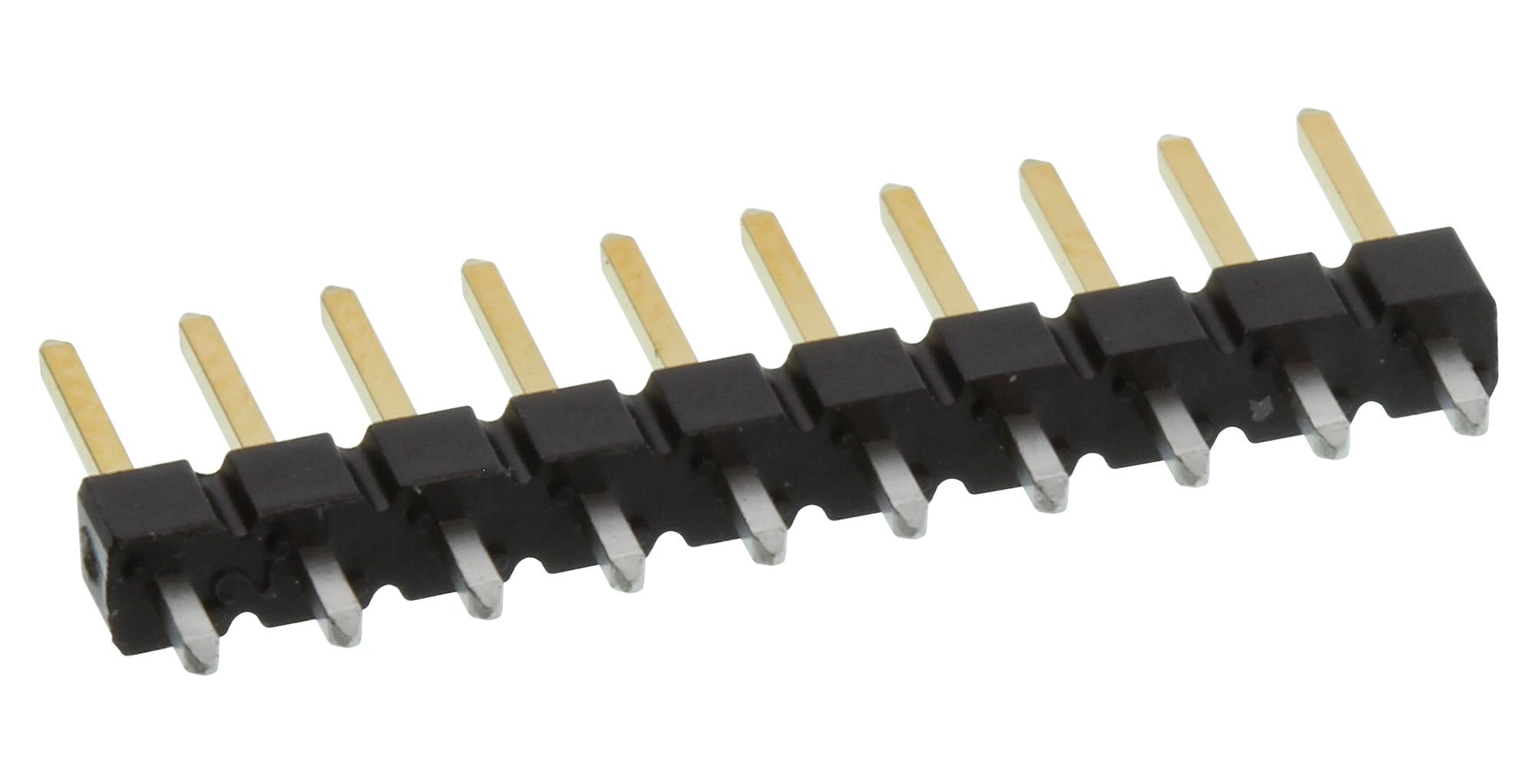

AMPHENOL COMMUNICATIONS SOLUTIONS 68001410HLF Unshrouded Header
BergStik 2.54mm unshrouded headers are versatile electronic connectors designed for Board-to-Board, Wire-to-Board, and Cable-to-Board applications. They are available in surface-mount (SMT), through-hole (THT), press-fit, stacking, and pin-in-paste configurations, supporting single and double row arrangements from 2 to 72 positions. Constructed with high-temperature thermoplastic housing, phosphor-bronze pins, and gold or tin plating over nickel, these headers offer excellent electrical performance with 3A rating, insulation resistance of 5000MQ, and dielectric withstand of 1500V. Suitable for industrial and automotive environments, they enhance modularity, reliability, and assembly efficiency in various electronic device implementations.
AMPHENOL COMMUNICATIONS SOLUTIONS 68001410HLF Unshrouded Header Specifications:
- Housing Material: High temperature thermoplastic, black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min.
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature Range: -65°C to +125°C (standard), -65°C to +130°C (pin-in-paste options)
- Retention Force: 9N min.
- Soldering Compatibility: Wave, vapor-phase, IR reflow
- RoHS Compliant: Yes
- Head dimensions and pin counts vary according to configuration, supporting from 2 up to 72 positions
- Packaging options include bags, tapes with pick-up caps, and reels, suitable for automated assembly
- Application: Suitable for modular electronic assemblies requiring reliable interconnects with high cycle lifespan
Buy the FCI 68001410HLF – Reliable 2.54mm Unshrouded Headers for Industrial Applications
Purchase the FCI 68001410HLF unshrouded header online today and benefit from a reliable, high-quality interconnect solution designed for longevity and versatility. These connectors support multiple configurations including SMT, through-hole, and stacking options, ensuring compatibility with various PCB designs. Featuring high-temperature thermoplastic housing and gold or tin plating for excellent electrical conduction, they are ideal for industrial, automotive, and electronic manufacturing applications. Enjoy fast delivery, competitive pricing, and technical support by ordering online now.
Buy FCI 68001410HLF now and experience unmatched reliability and performance in your electronic interconnect solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68001410HLF?
You can click on the BUY or RFQ button to purchase 68001410HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68001410HLF?
You can download the 68001410HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68001410HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
