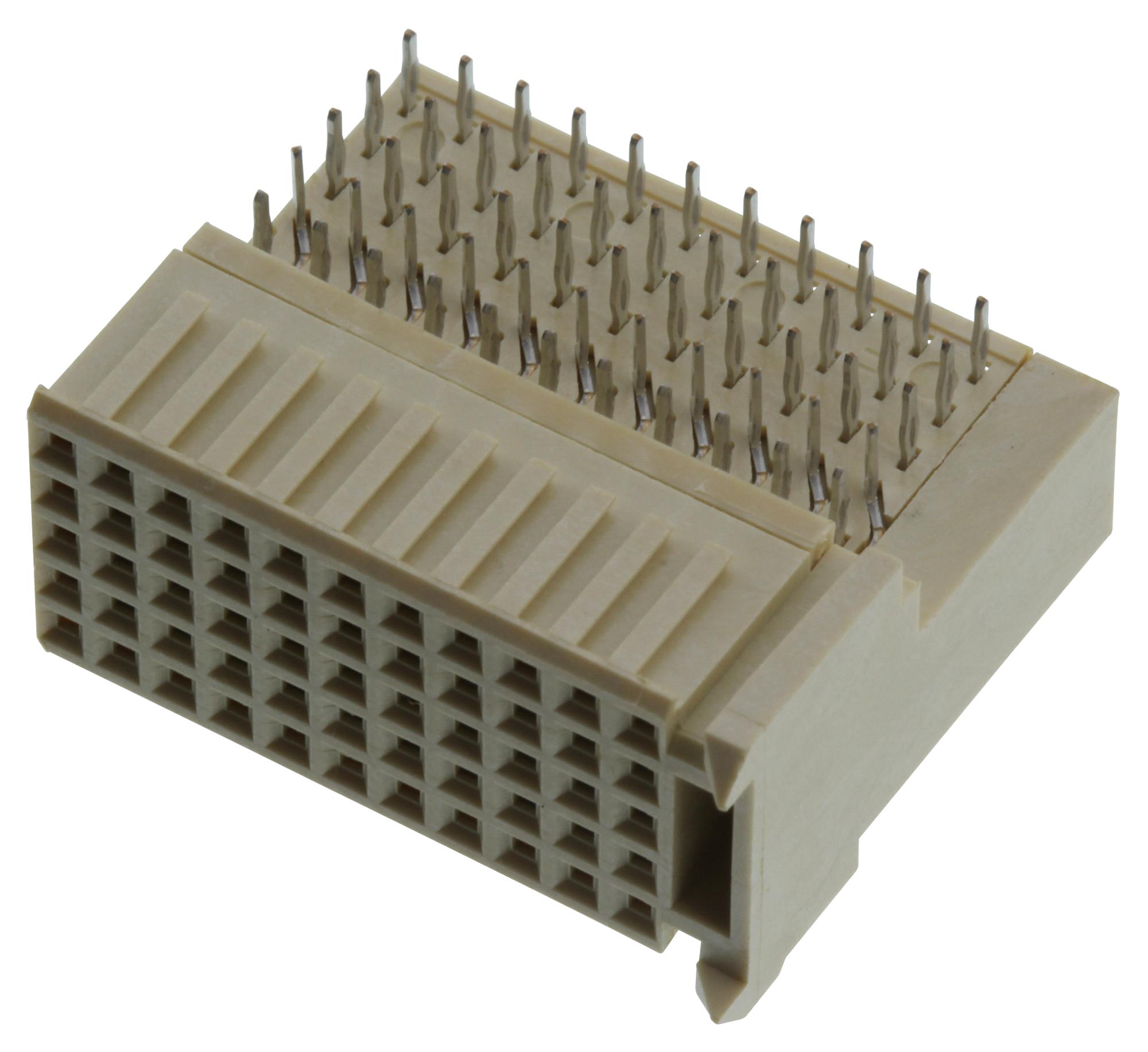

AMPHENOL COMMUNICATIONS SOLUTIONS HM2R30PA5100N9LF Backplane Connector
The HM2R30PA5100N9LF is a high-quality right angle backplane connector designed for modular PCB applications. Featuring a 2mm pitch, it includes polarization and optional location pegs for precise mating. Constructed with high-temperature polymer insulators and gold/palladium plated copper alloy contacts, it ensures reliable electrical performance with a contact resistance of 20 mΩ and operating currents up to 1.5A at 20°C. Suitable for use in communications, industrial, and medical equipment, it offers excellent mechanical durability and environmental resistance, conforming to IEC standards and UL/CSA certifications.
AMPHENOL COMMUNICATIONS SOLUTIONS HM2R30PA5100N9LF Backplane Connector Specifications:
- Pitch: 2mm
- Insulator Material: High-Temperature polymer
- Contact Material: Copper Alloy
- Contact Plating: Gold/Palladium nickel on mating areas, Tin over Nickel on press-fit areas
- Operating Current: 1.5A at 20°C, 1.0A at 70°C
- Test Voltage: 750 Vrms
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 10^9 MQ min
- Mating Force: 0.75 N max per contact
- Withdrawal Force: 0.15 N min per contact
- Operating Temperature Range: -55°C to +125°C
- Durability: Up to 500 mating cycles
- Certifications: IEC 917, IEC 61076-4-101, UL, CSA
Buy the Buy FCI HM2R30PA5100N9LF Backplane Connector Part Number HM2R30PA5100N9LF Online
Purchase the FCI HM2R30PA5100N9LF backplane connector online today to ensure reliable and efficient interconnection in your communication, industrial, or medical equipment. This high-quality right angle connector with 2mm pitch, polarization, and gold-plated contacts offers excellent electrical performance and mechanical durability. Its high-temperature polymer insulator withstands extreme conditions, making it ideal for demanding applications. Enjoy fast delivery, competitive pricing, and the convenience of online shopping for this trusted modular system solution that enhances circuit reliability and simplifies assembly.
Buy FCI HM2R30PA5100N9LF high-reliability backplane connector now and experience unmatched durability in complex modular systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HM2R30PA5100N9LF?
You can click on the BUY or RFQ button to purchase HM2R30PA5100N9LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HM2R30PA5100N9LF?
You can download the HM2R30PA5100N9LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HM2R30PA5100N9LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
