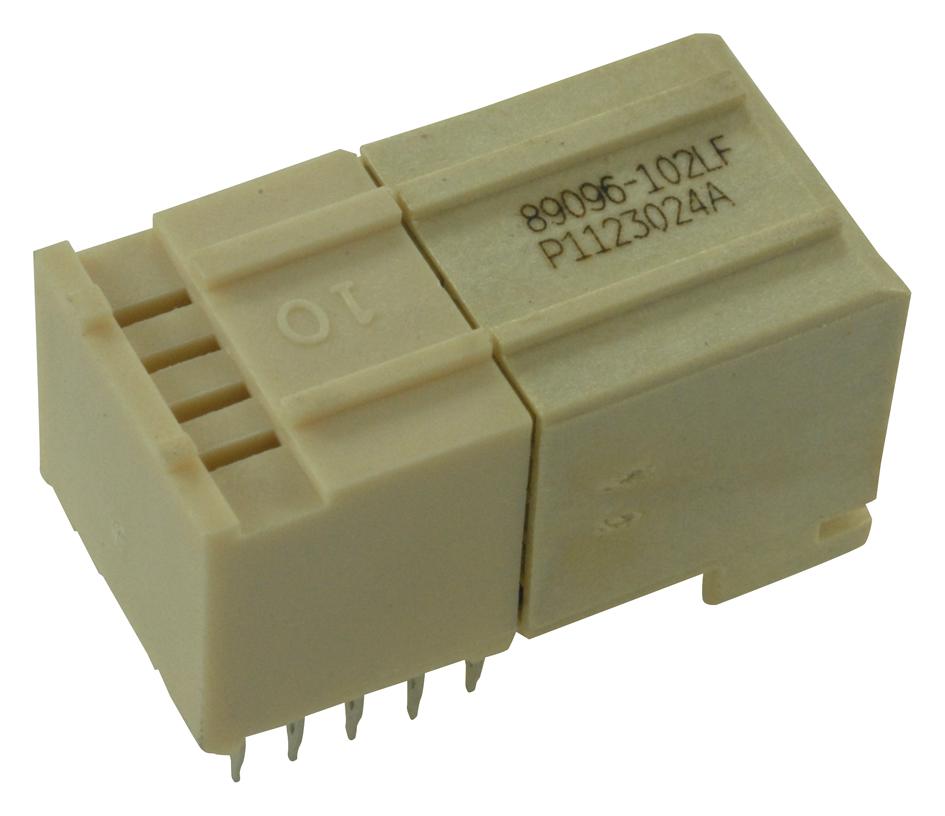

AMPHENOL COMMUNICATIONS SOLUTIONS 89096102LF Backplane Connectors
The Metral series board connectors feature right-angle and vertical orientations for headers and receptacles, offering high contact density with 250 contacts per 100mm and a 2mm pitch. Available in 4- and 5-row configurations, these modular, scalable connectors support press-fit, solder-to-board, and pin-in-paste terminations, with varying pin lengths for first-mate and last-break capabilities. They include dual beam contacts for reliability, optional locating pegs for accurate positioning, and can be stacked with high-speed version modules, making them ideal for communications, industrial automation, sensing, and medical applications, ensuring high electrical reliability and vibration resistance.
AMPHENOL COMMUNICATIONS SOLUTIONS 89096102LF Backplane Connectors Specifications:
- Contact Density: 250 contacts per 100mm length
- Pitch: 2mm
- Configurations: 4- and 5-row modules
- Contact Material: Copper Alloy
- Housing Material: High-temperature thermoplastic UL 94V-0
- Electrical Resistance: Insulation Resistance 5000MQ min, 3000MQ min for coax
- Dielectric Withstanding Voltage: 1000V rms
- Current Rating: 3-40A
- Operating Temperature: -55°C to +125°C (power), -65°C to +165°C (coax)
- Electrical Impedance: 50Ω and 75Ω (coax)
- Mating Force: 1.5 N max per pin (power), 0.9 N (coax)
- Unmating Force: 0.30 N min per pin (power), 0.9 N (coax)
- Termination Options: Press-fit, Solder-to-Board, Pin-in-Paste
- Standards & Certifications: IEC 61076-4-104, Telcordia GR-1217-CORE
Buy the Metral Power Connectors – Reliable Backplane Modules for Industrial Applications
Discover the reliability of Metral backplane connectors designed for industrial automation, communications, and medical equipment. These high-density modules support multiple configurations with press-fit, solder, and pin-in-paste terminations. With Varying pin lengths for first-mate and last-break protection, dual beam contacts for vibration resistance, and modular stacking options, these connectors ensure secure, reliable, high-speed data and power transfer. Easy to install on PCBs, they are ideal for various demanding applications requiring durability, precise positioning, and high electrical performance.
Order your Metral series backplane connectors today and enhance your projects with dependable, high-density connectivity solutions suitable for diverse industrial needs.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 89096102LF?
You can click on the BUY or RFQ button to purchase 89096102LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 89096102LF?
You can download the 89096102LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 89096102LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
