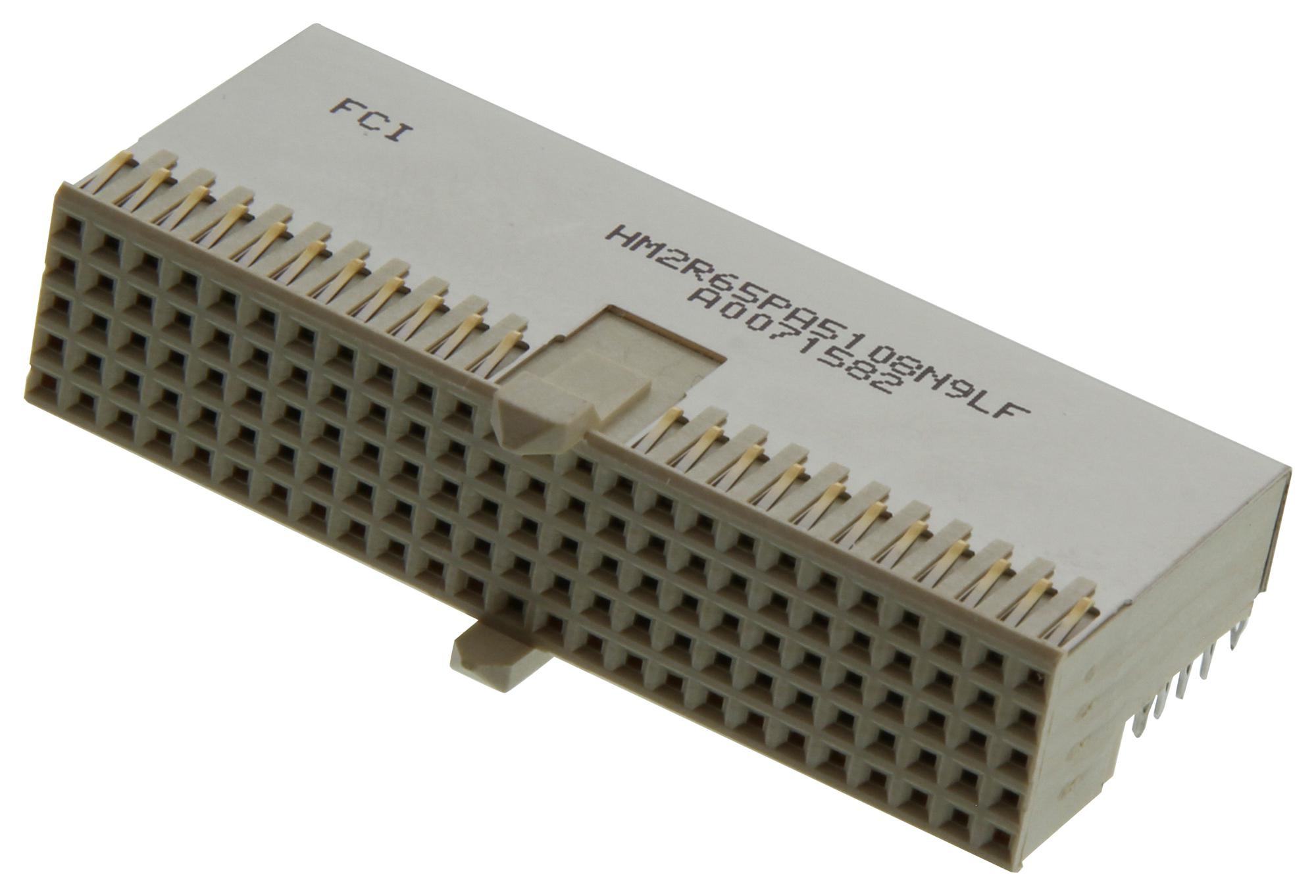

AMPHENOL COMMUNICATIONS SOLUTIONS HM2R65PA5108N9LF Backplane Connector
The Millipacs 2mm Hard Metric Series right angle receptacle connectors are modular, high-performance backplane connectors designed for reliable board-to-board and cable-to-board interconnections. Compatible with IEC standards, they feature a 2mm pitch, high-temperature polymer insulator, and gold/palladium plated copper alloy contacts for optimal electrical performance. Suitable for high-density applications, these connectors offer easy guiding, polarization, and optional shielding in compact footprints. Ideal for communications, industrial, power, medical, and multimedia markets, they deliver excellent signal integrity, mechanical durability, and customizable configurations for versatile circuit design.
AMPHENOL COMMUNICATIONS SOLUTIONS HM2R65PA5108N9LF Backplane Connector Specifications:
- Insulator Material: High-Temperature Polymer
- Contact Material: Copper Alloy
- Contact Plating: Gold/Palladium Nickel on Mating Areas, Tin over Nickel on Press-fit Areas
- Operating Current: 1.5A at 20°C, 1.0A at 70°C
- Test Voltage: 750 Vrms
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 10 MΩ min
- Mating Force: 0.75 N max per contact
- Withdrawal Force: 0.15 N min per contact
- Operating Temperature Range: -55°C to +125°C
- Misalignment Tolerance: Longitudinal +2.0mm, Transversal +2.5mm
- Hertz Stress: 200 Kpsi min
- Certifications: IEC 917, IEC 61076-4-101, Telcordia GR-1217-CORE, UL, CSA
- Application Specification: GS-20-022
- Product Specification: GS-12-203
Buy the FCI Series HM Millipacs 2mm Backplane Connector: HM2R65PA5108N9LF
Discover the versatile FCI Millipacs 2mm backplane connector HM2R65PA5108N9LF, designed for high-density, reliable interconnections across communications, industrial, and medical sectors. Featuring a modular design with optional shielding, polarization, and hybrid configurations, it ensures optimal signal integrity, durability, and easy assembly in compact formats. Crafted with high-quality materials, these connectors are capable of withstanding extensive mating cycles and temperature extremes, making them ideal for demanding high-performance applications requiring consistent electrical and mechanical reliability. Order online today for fast, secure delivery and seamless integration into your systems.
Buy FCI Millipacs 2mm backplane connector HM2R65PA5108N9LF now and experience unmatched electrical performance and reliable board-to-board connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HM2R65PA5108N9LF?
You can click on the BUY or RFQ button to purchase HM2R65PA5108N9LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HM2R65PA5108N9LF?
You can download the HM2R65PA5108N9LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HM2R65PA5108N9LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
