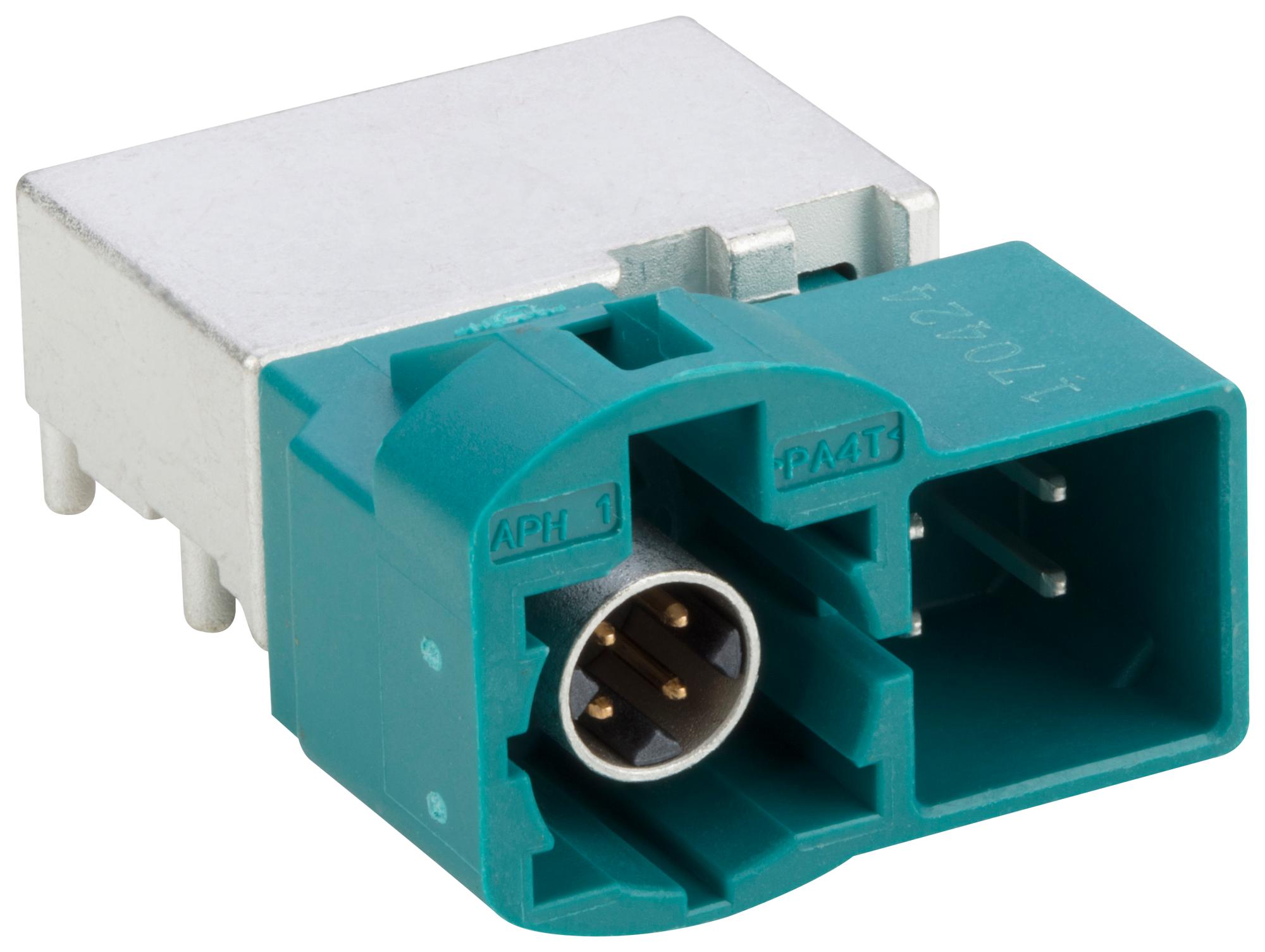

AMPHENOL COMMUNICATIONS SOLUTIONS HSDNARPPCB7B Automotive Connector System
The HSD connector system is a fully shielded, high-performance automotive interconnect designed for low-voltage differential signals, supporting applications like LVDS cameras and USB. It features high retention force, resistance to reflow soldering temperature, and is compliant with USCAR-2 standards. The system includes color-coded, self-aligning housings made from high-temperature polymers, with zinc alloy covers and stainless steel baffles. It ensures reliable electrical performance, environmental durability, and is suitable for automated assembly in various automotive modules such as ADAS and infotainment systems. Its robust design prevents damage during mating and release, ensuring long-term operational stability.
AMPHENOL COMMUNICATIONS SOLUTIONS HSDNARPPCB7B Automotive Connector System Specifications:
- Housing: High Temperature Polymer, UL94V-0
- Contacts: Copper Alloy
- Die Casting: Zinc Alloy
- Cover: Zinc Alloy
- Baffle: Stainless Steel
- Insertion Force: 35N max.
- Extraction Force without Locking Latch: 5N min.
- Durability: 25 Cycles
- Contact Resistance: 20 mΩ max. per pin
- Isolation Resistance: >100 MΩ at 500 VDC
- Dielectric Withstanding Voltage: AC 250 Vrms per minute
- Temperature Range: -40°C to +105°C
- Humidity Cycling: 90-95% RH, 40 cycles
- High Temperature Exposure: Static 105°C, 1008 hours
- RoHS, REACH/SVHC, Low Halogen certified
- Packaging: Tray, Tape and Reel available upon request
Buy the Buy Amphenol HSD Connector Part Number HSDNARPPCB7B Online
Purchase the Amphenol Automotive Connector System HSDNARPPCB7B online today to benefit from its high-performance, reliable electrical characteristics, and robust environmental resistance. Designed for automotive applications like ADAS, in-vehicle infotainment, and surround view cameras, this connector ensures superior signal integrity, easy automated assembly, and long-term durability. Its USCAR-2 compliance guarantees safety and quality standards. With multiple packaging options, including tray and reel, it simplifies large-scale installations while providing excellent retention force and resistance to harsh conditions. Buy now for trusted automotive connectivity solutions.
Order your Amphenol SeriesHSDNARPPCB7B connector today and ensure reliable automotive interconnections with high durability and automatic assembly compatibility.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HSDNARPPCB7B?
You can click on the BUY or RFQ button to purchase HSDNARPPCB7B from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HSDNARPPCB7B?
You can download the HSDNARPPCB7B datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HSDNARPPCB7B?
AMPHENOL COMMUNICATIONS SOLUTIONS
