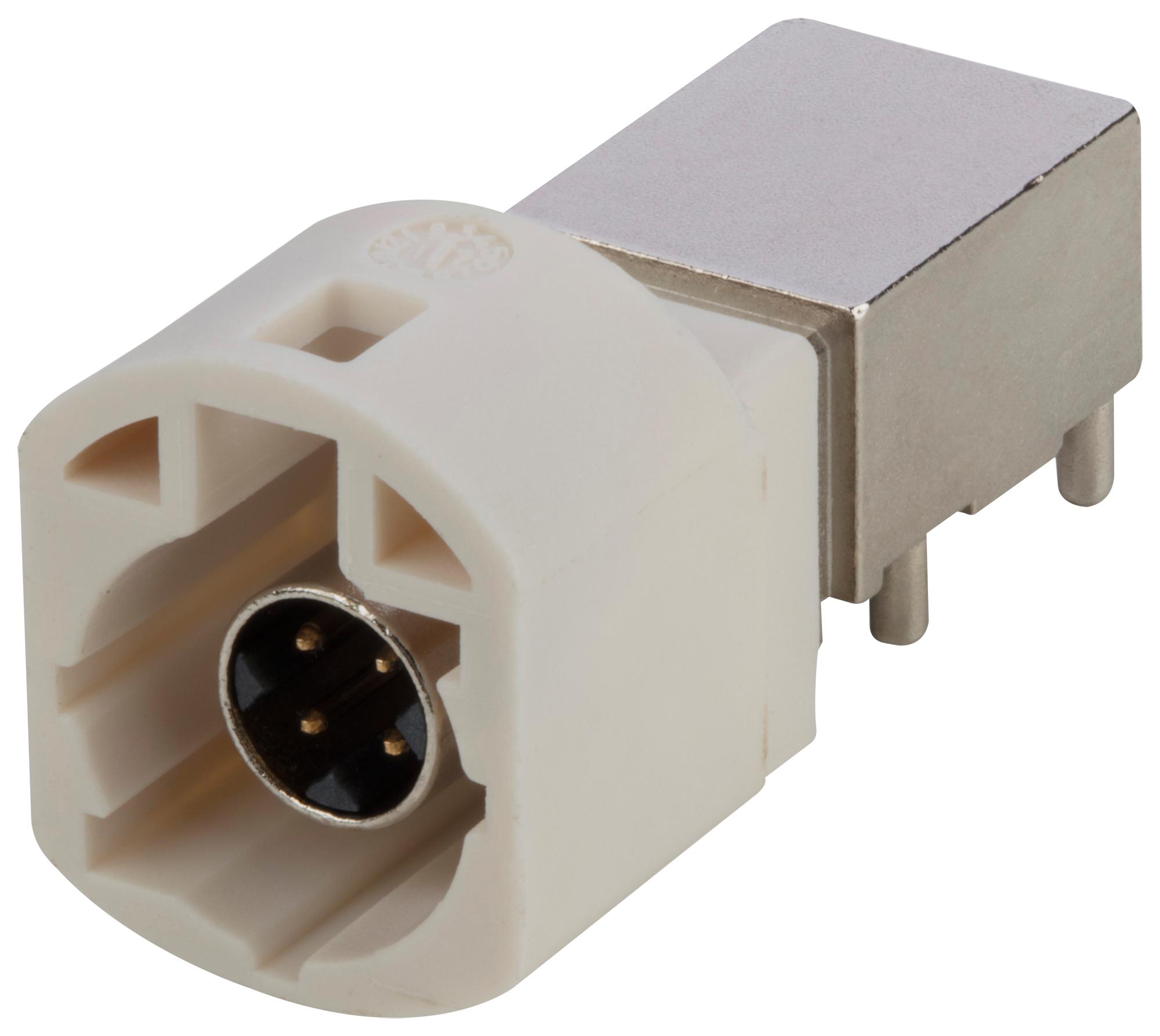

AMPHENOL COMMUNICATIONS SOLUTIONS HSDNBRPPCB12B Automotive Connector System
The HSD connector system by Amphenol is a high-performance, fully shielded interconnect solution designed for automotive applications. Compliant with USCAR-2 standards, it features enhanced retention force, resistance to reflow soldering temperature, and a simple patent-protected assembly design. Suitable for low-voltage differential signals like LVDS camera, USB, and IEEE 1394, it offers high cable retention, effective color coding, and self-aligning molded housings. Compatible with automated assembly and supporting Pin-In-Paste processes, it ensures reliable connections, durability, and seismic stability in demanding automotive environments.
AMPHENOL COMMUNICATIONS SOLUTIONS HSDNBRPPCB12B Automotive Connector System Specifications:
- Housing: High Temperature Polymer, UL94V-0
- Contacts: Copper Alloy
- Die Casting: Zinc Alloy
- Cover: Zinc Alloy
- Baffle: Stainless Steel
- Insertion Force: 35N max.
- Extraction Force without Locking Latch: 5N min.
- Durability: 25 Cycles
- Contact Resistance: 20 mQ max. per pin
- Isolation Resistance: Exceeds 100 mQ at 500 VDC
- Dielectric Withstanding Voltage: AC 250Vrms per minute
- Temperature Range: -40°C to +105°C
- Environmental Resistance: 40 cycles humidity/temp cycling
- Certifications: USCAR-2, ISO/TS, ROHS, REACH/SVHC
- Packaging: Tray or Tape and Reel options
Buy the Buy Amphenol HSD Connector Part Number HSDNBRPPCB12B Online
Purchase the Amphenol HSD connector system online for automotive applications. Designed for low-voltage differential signals with high durability, chemical resistance, and proven USCAR-2 compliance. Suitable for camera modules, infotainment, and ADAS systems, it offers high cable retention, efficient assembly, and housing protection. Compatible with automated manufacturing processes, it ensures secure connections, long service life, and optimal performance in demanding environments. Order now to enhance your automotive wiring and electronic system reliability.
Get Amphenol HSDNBRPPCB12B today—built for automotive durability, high retention, and reliable electrical performance.
