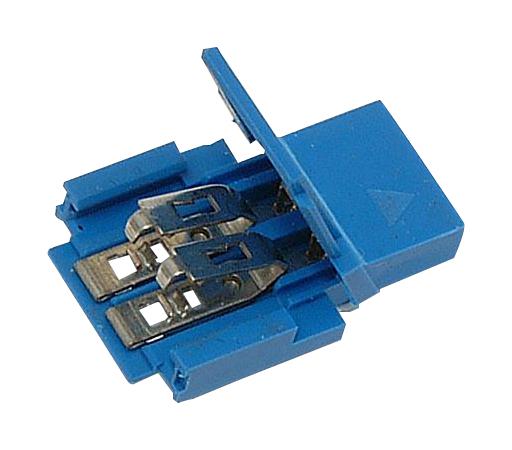

AMPHENOL COMMUNICATIONS SOLUTIONS 65801009LF Flexible Circuit Connectors
The Clincher series CLINCHER™ Connector family includes single-row pin and receptacle connectors designed for termination to flat flexible circuitry. These connectors are suitable for flat flexible cable (FFC), flexible printed circuit (FPC), and conductive ink circuitry (CIC). They feature gas-tight, contamination-free termination to each conductor, ensuring high reliability. The receptacle uses FCI's proven Mini PV™ dual-metal contacts for dependable connectivity. They include housing windows for crimp inspection and beveled lead-ins to facilitate mating and reduce stubbing risk. Available in sizes from 2 to 34 positions, these connectors incorporate polarization options for correct alignment. The design supports mass termination for efficient cable assembly and includes latching features for secure connection in demanding applications. Suitable for consumer electronics, logistics, industrial, sensing and instrumentation, and medical applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 65801009LF Flexible Circuit Connectors Specifications:
- Housing Material: Polypropylene UL 94 V-O, Blue
- Contact Material: Cupro-nickel (receptacles), Phosphor Bronze (headers), Beryllium Copper (spring)
- Plating: 3u Gold/GXT or 10u lead-free
- Electrical Resistance: Max 10 mO main contacts; 20 mO after exposure
- Insulation Resistance: 5000 MO minimum
- Withstanding Voltage: 1000 VAC RMS
- Current Rating: 2.0 amps per contact
- Contact Load Cycles: 100 mating cycles
- Cable Specifications: IPC Standard, FC-220 B type A or B, 0.33mm max thickness, Mylar or KAPTON polyimide insulation
- Cable Conductor Width: 1.57mm +/- 0.07mm
- Conductor Thickness: 0.076mm +/- 0.013mm
- Contact Resistance: 10 mO max, 20 mO after environmental exposure
- Mating Force: 300 grams max per contact
- Latch Retention: Minimum 4 lbs
- Contact Retention: Minimum 30 grams
- Cable Retention: 10 lbs per inch of cable width
Buy the FCI Series CLINCHER Connectors: 65801009LF
Enhance your assembly process with FCI CLINCHER connectors, engineered for high reliability and quick, secure termination of flat flexible circuitry. Featuring gas-tight, contamination-free contacts and polarization options, these connectors are ideal for electronics, medical devices, and industrial applications. Their design supports mass termination, reducing assembly time and costs. Available in multiple sizes from 2 to 34 positions, with gold or lead-free plating, they deliver durable, vibration-resistant connections. Order online now for efficient, dependable flexible circuit connections.
Get FCI CLINCHER 65801009LF today—designed for secure, reliable connections in flexible circuitry applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65801009LF?
You can click on the BUY or RFQ button to purchase 65801009LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65801009LF?
You can download the 65801009LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65801009LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
