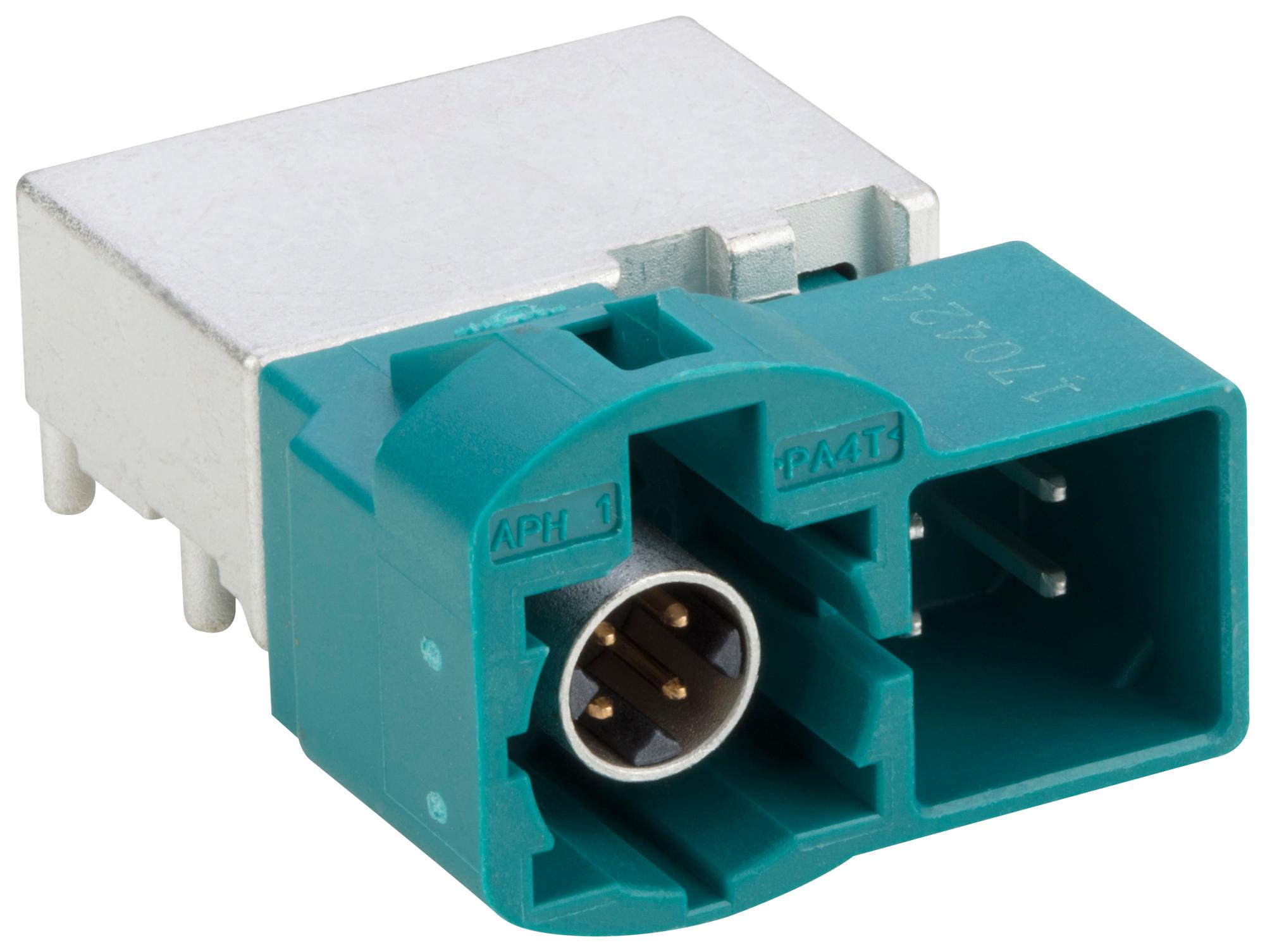

AMPHENOL COMMUNICATIONS SOLUTIONS HSDNBRPPCB7A Automotive Connector
This automotive connector is a high-performance HSD+2 right-angle plug designed for critical vehicle electronic systems. Made with a high-temperature UL94V-0 polymer housing, it ensures durability in demanding environments. The connector features a color-coded design for easy installation, reinforced with high retention force to prevent damage during improper release. It supports automated assembly, with crimped cable connections, and withstands reflow soldering temperatures. Electrical specs include a contact resistance of 20 milli-ohms per pin, insulation resistance over 100 megaohms at 500 VDC, and dielectric withstanding voltage AC 250 VRMS for one minute. Temperature operation ranges from -40°C to +105°C, meeting USCAR-2, ISO/TS, and low halogen standards.
AMPHENOL COMMUNICATIONS SOLUTIONS HSDNBRPPCB7A Automotive Connector Specifications:
- Housing Material: High Temperature Polymer, UL94V-0
- Dielectrics Material: High Temperature Polymer, UL94V-0
- Contacts: Copper Alloy
- Die Casting: Zinc Alloy
- Cover: Zinc Alloy
- Baffle: Stainless Steel
- Insertion Force: 35N max.
- Extraction Force: 5N min.
- Durability: 25 Cycles
- Contact Resistance: 20 mQ max. per pin
- Insulation Resistance: >100 MQ at 500 VDC
- Dielectric Withstanding Voltage: AC 250 VRMS for 1 minute
- Operating Temperature Range: -40°C to +105°C
- Temperature & Humidity Cycling: 40 Cycles at -40°C to +105°C, 90-95% RH
- Reflow Soldering Resistance: Yes
- Low Halogen: Yes
- Certifications: USCAR-2, ISO/TS, ROHS, REACH/SVHC
- Packaging Options: Tray or Tape and Reel
- Physical Dimensions: Suitable for automotive and electronic systems
- Application Compatibility: Automotive infotainment, ADAS systems, camera modules
Buy the Amphenol Series HSD Automotive Connector: HSDNBRPPCB7A
Order the Amphenol HSDNBRPPCB7A high-temperature automotive connector online today. Designed for durability, high retention force, and easy automated assembly, this connector ensures seamless performance in vehicle electronics. Its color-coded system simplifies installation, while the robust materials withstand demanding thermal and electrical environments. With exceptional contact resistance, insulation, and dielectric withstanding voltage, it meets all industry standards including USCAR-2 and ISO/TS. Purchase now to secure a reliable, low-halogen solution that enhances your automotive system's durability and safety.
Buy Amphenol HSDNBRPPCB7A now and experience unmatched reliability and performance for your automotive electronic connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HSDNBRPPCB7A?
You can click on the BUY or RFQ button to purchase HSDNBRPPCB7A from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HSDNBRPPCB7A?
You can download the HSDNBRPPCB7A datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HSDNBRPPCB7A?
AMPHENOL COMMUNICATIONS SOLUTIONS
