AMPHENOL COMMUNICATIONS SOLUTIONS HSDWBRPPCB12B automotive connector
The HSD Connector System is a fully shielded, high-performance automotive connector designed for low-voltage differential signals like LVDS, USB, and IEEE 1394. Built with durable materials such as zinc and stainless steel, it offers high retention force, resistance to reflow soldering, and compliance with USCAR-2. Ideal for automotive infotainment, camera, and ADAS systems, it features color coding, self-aligning housings, and optional tape or tray packaging for automated assembly, ensuring reliable and efficient connections in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS HSDWBRPPCB12B automotive connector Specifications:
- Housing: High Temperature Polymer, UL94V-0
- Contacts: Copper Alloy
- Die Casting: Zinc Alloy
- Cover: Zinc Alloy
- Baffle: Stainless Steel
- Insertion Force: 35N max.
- Extraction Force without Locking Latch: 5N min.
- Durability: 25 Cycles
- Contact Resistance: 20 mQ max. per pin
- Isolation Resistance: Exceed 100 mQ at 500 VDC
- Dielectric Withstanding Voltage: AC 250 Vrms per minute
- Operating Temperature: -40°C to +105°C
- Compliance: USCAR-2, ISO/TS, RoHS, REACH/SVHC
- Packaging: Single, Tray or Tape and Reel
- Environmental: Temperature/Humidity Cycling, High Temp Exposure

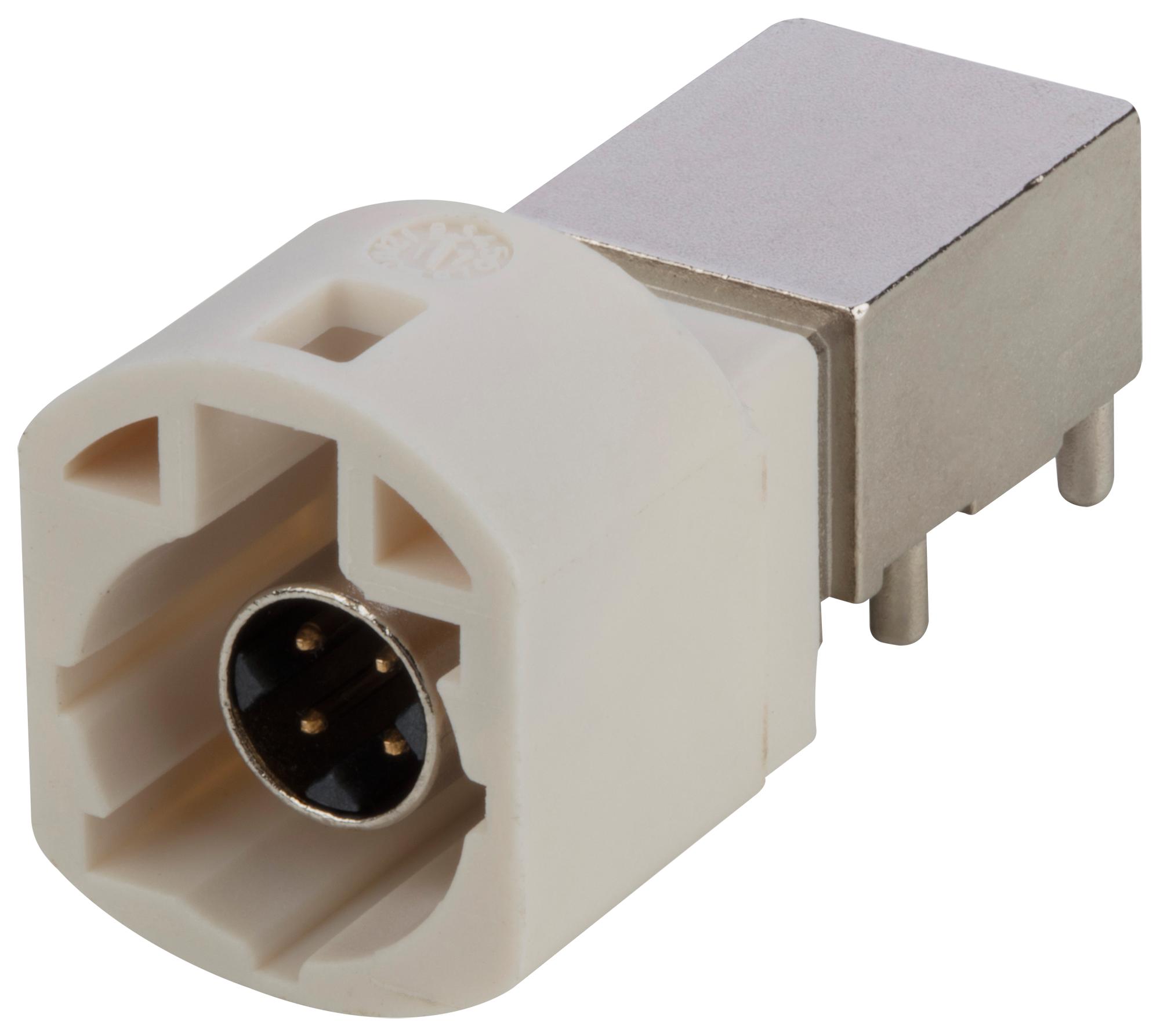

Buy the Buy Amphenol HSD Connector Part Number HSDWBRPPCB12B Online
Enhance your automotive wiring with the high-performance HSD connector, offering shielded, high-retention, and eco-friendly features. Designed for low-voltage systems like LVDS, USB, and IEEE 1394, it withstands temperature extremes and reflow soldering. Suitable for automated assembly, it includes color coding and self-aligning housings for quick, error-free connections. Whether you need a tray or reel package, this connector ensures durability and safety in critical automotive applications, making your installation efficient and reliable. Order online today to upgrade your vehicle's electronic systems with confidence.
Order your Amphenol Series HSDWBRPPCB12B connector today and ensure reliable, automotive-grade connections for your in-vehicle infotainment and ADAS systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HSDWBRPPCB12B?
You can click on the BUY or RFQ button to purchase HSDWBRPPCB12B from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HSDWBRPPCB12B?
You can download the HSDWBRPPCB12B datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HSDWBRPPCB12B?
AMPHENOL COMMUNICATIONS SOLUTIONS
