AMPHENOL COMMUNICATIONS SOLUTIONS HSDWBRPPCB18B HSD Connector System
The HSD Connector System is a fully shielded, high-performance automotive-grade interconnect solution designed for low-voltage differential signals such as LVDS cameras, USB, and IEEE 1394 applications. Compliant with USCAR-2, it features enhanced retention force, resistance to reflow soldering temperatures, and a simple, patent-protected assembly design. Made with high-temperature polymer housings, copper alloy contacts, and zinc alloy die castings, it offers reliable electrical performance, high durability for 25 mating cycles, and environmental resistance suitable for automotive environments including temperature cycling and high humidity. Its self-aligning and coding features ensure easy, damage-free connections, ideal for automated manufacturing processes and critical automotive modules.
AMPHENOL COMMUNICATIONS SOLUTIONS HSDWBRPPCB18B HSD Connector System Specifications:
- Housing: High Temperature Polymer, UL94V-0
- Contacts: Copper Alloy
- Die Casting: Zinc Alloy
- Cover: Zinc Alloy
- Baffle: Stainless Steel
- Insertion Force: 35N max.
- Extraction Force without Locking Latch: 5N min.
- Durability: 25 Cycles
- Contact Resistance: 20 mQ max. per pin
- Isolation Resistance: Exceed 100 mQ at 500 VDC
- Dielectric Withstanding Voltage: AC 250Vrms per min
- Operating Temperature: -40°C to +105°C
- Environmental Resistance: Temperature/Humidity cycling, high-temperature static exposure
- Certifications: USCAR-2, ROHS, REACH/SVHC, Low Halogen
- Packaging: Tray or Tape and Reel

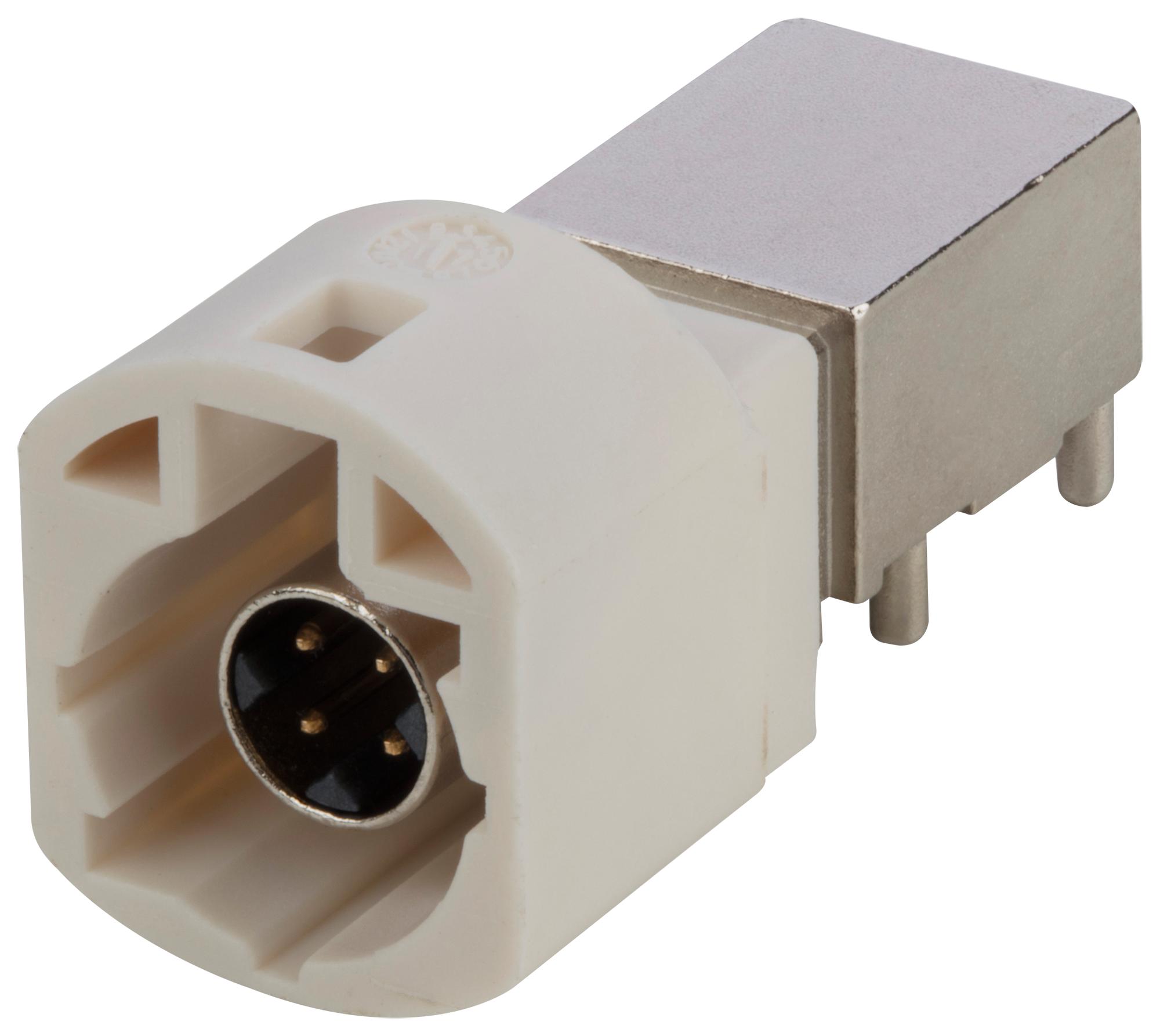

Buy the Amphenol Series HSD Connector: HSDWBRPPCB18B
Purchase the HSD Connector System online today for robust automotive interconnect solutions featuring high retention force, resistance to reflow soldering, and environmental durability. Ideal for applications like in-vehicle infotainment, camera systems, and ADAS modules, this connector ensures secure, high-quality connections with easy assembly and coding features. Reliable for critical automotive modules, it supports automated manufacturing processes and withstands temperature cycling, high humidity, and static high-temperature exposure. Enhance your automotive electronics with this trusted, USCAR-2 compliant connector system optimized for safety, durability, and high electrical performance.
Get Amphenol HSDWBRPPCB18B today—designed for automotive reliability and high-performance low-voltage signal integrity.
