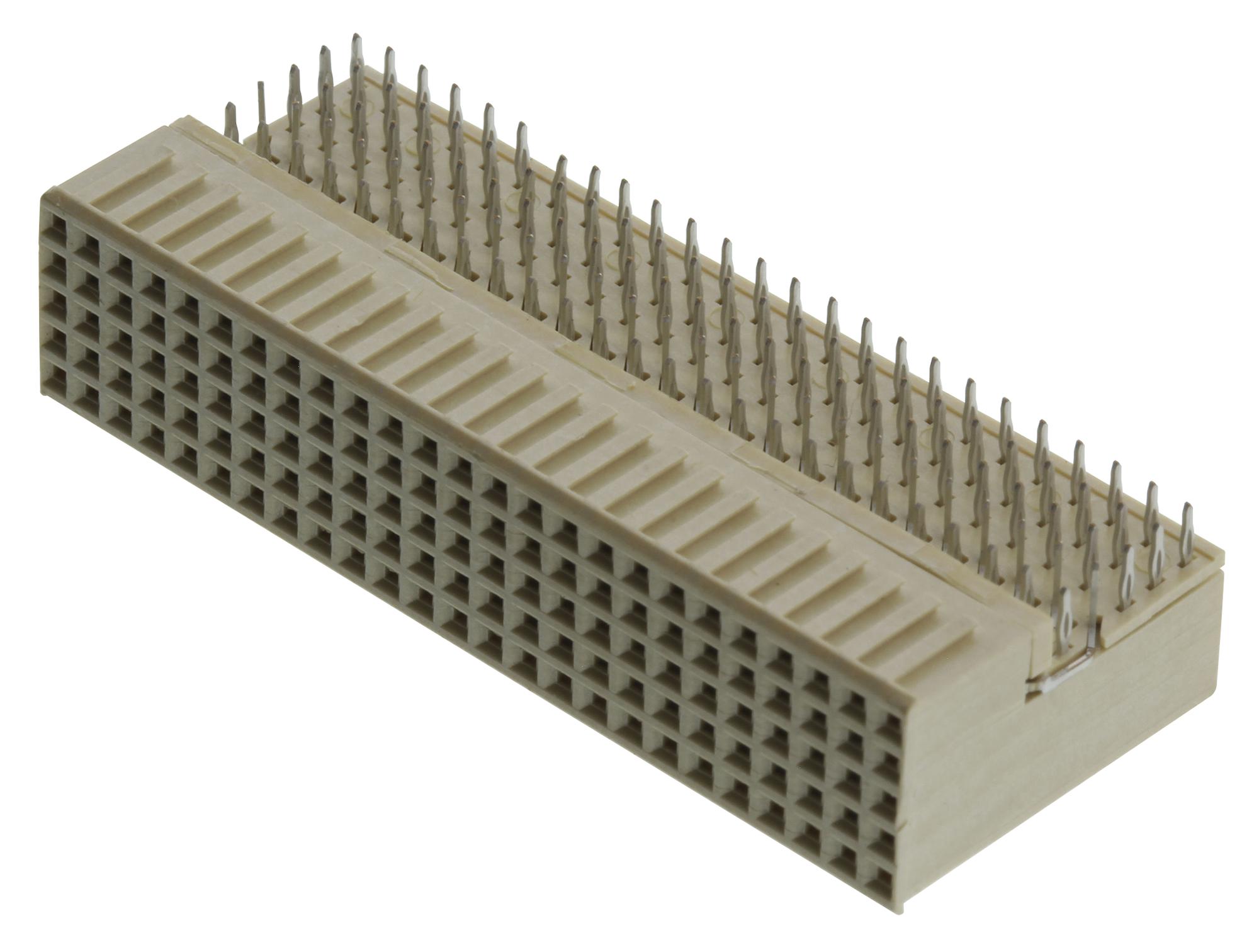

AMPHENOL COMMUNICATIONS SOLUTIONS HM2R02PA5100N9LF Backplane Connectors
The Millipacs 2mm Hard Metric series right angle receptacle connectors are high-reliability, modular interconnects designed according to IEC standards. They feature gold/palladium nickel and tin over nickel plating, and operate at currents up to 1.5A with resistance less than 20 milliohms. Suitable for test, industrial, medical, and communication applications, these connectors provide easy mating with visual guides, high thermal tolerance from -55°C to +125°C, and are compliant with Telcordia and IEC standards, ensuring durability and robust electrical performance for demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS HM2R02PA5100N9LF Backplane Connectors Specifications:
- Material: Copper alloy contact with gold/palladium nickel plating on mating areas and tin over nickel on press-fit areas
- Operating current: 1.5A at 20°C, 1.0A at 70°C
- Test voltage: 750 Vrms
- Contact resistance: 20 mΩ max
- Insulation resistance: 10 MΩ min
- Operating temperature: -55°C to +125°C
- Mating force: 0.75 N max per contact
- Withdrawal force: 0.15 N min per contact
- Misalignment: Longitudinal +2.0mm, Transversal +2.5mm
- Hertz stress: ≥200 Kpsi
- Conforms to IEC 917, IEC 61076-4-101, Telcordia GR-1217-CORE, UL, CSA
- Product specification: GS-12-203, Application specification: GS-20-022
- Durability: 3-500 mating cycles depending on type
- Connector body: High-temperature polymer insulator
- Environment: Suitable for -55°C to +125°C operation
Buy the Millipacs 2mm – Reliable Backplane Connectors for Industrial Applications
Enhance your electronic assemblies with our Millipacs 2mm series backplane connectors, offering modular scalability, reliable high-current performance, and excellent environmental tolerance. Perfect for communication, industrial, and medical applications, these connectors ensure easy mating, precise alignment, and long-lasting durability. Shop online today to get fast delivery and competitive pricing on high-quality backplane interconnects. Ensure optimal performance in your next project with the trusted reliability of Millipacs 2mm connectors.
Order your Millipacs 2mm series backplane connector today and ensure robust, high-performance connections for your industrial and communication projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HM2R02PA5100N9LF?
You can click on the BUY or RFQ button to purchase HM2R02PA5100N9LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HM2R02PA5100N9LF?
You can download the HM2R02PA5100N9LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HM2R02PA5100N9LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
