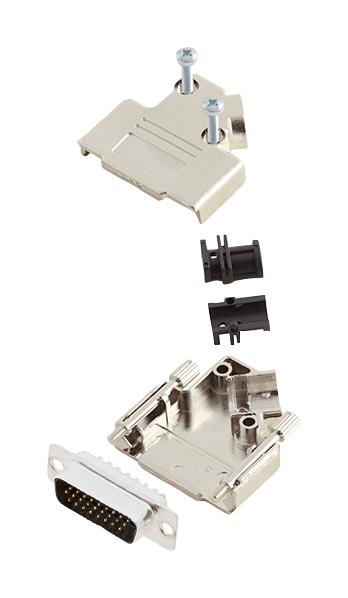

AMPHENOL COMMUNICATIONS SOLUTIONS L17D45PKM15L717HDA26P High Density D-Sub Connector
This high-density D-Sub connector kit features robust construction with UL 94 V-0 plastic, nickel-plated copper, and steel shell with tin plating. It operates within an temperature range of -55°C to +110°C, offers reliable epoxy sealing, and includes high-quality glass-filled thermoplastic insulator with gold flash over nickel plating for contact pins. Designed for rugged industrial applications, it supports cable O.D up to 11.5mm and offers EMI shielding, re-openable grommet sizes, and a maximum withstand voltage over 1000V RMS. Suitable for various sizes from HD 15 to HD 62, it ensures high performance in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS L17D45PKM15L717HDA26P High Density D-Sub Connector Specifications:
- Material: UL 94 V-0 plastic
- Plating: Nickel over Copper
- Operating Temperature: -55°C to +110°C
- Cable Entry: Top Entry
- Cable O.D: Up to 11.5mm
- Shell: Steel, Tin Plated
- Contact pins: Copper Alloy with Gold flash over Nickel plating
- Contact Resistance: < 10 milliohms
- Withstanding Voltage: > 1000V RMS for 1 minute
- Current Rating: 3A
- Insulator Resistance: > 5000MΩ
- Size Options: HD 15, 26, 44, 62
Buy the Amphenol Series High-Density D-Sub Connector: L17D45PKM15L717HDA26P
Purchase the high-density D-Sub connector kit from Amphenol online today and benefit from reliable, shielded connections with robust construction. Designed for demanding industrial environments, it features UL 94 V-0 plastic, nickel-plated copper, and steel shell with tin plating, ensuring durability and excellent electrical performance. Its cable O.D support up to 11.5mm, with EMI shielding and re-openable grommet sizes for flexible installation. This versatile connector supports sizes from HD 15 to HD 62, offering high voltage withstand and long-lasting performance in critical applications.
Buy Amphenol high-density D-Sub connector kit now and experience unmatched reliability and performance for industrial and electronic applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L17D45PKM15L717HDA26P?
You can click on the BUY or RFQ button to purchase L17D45PKM15L717HDA26P from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L17D45PKM15L717HDA26P?
You can download the L17D45PKM15L717HDA26P datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L17D45PKM15L717HDA26P?
AMPHENOL COMMUNICATIONS SOLUTIONS
