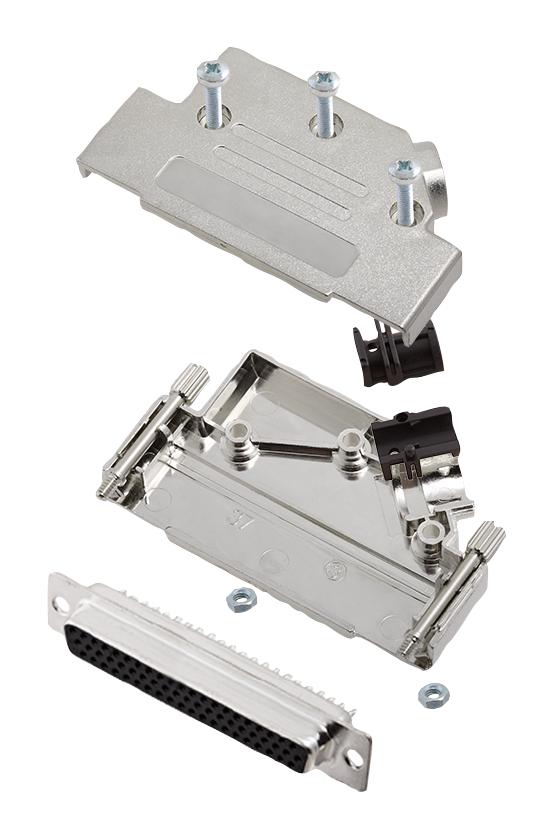

Amphenol-Communications-Solutions L17D45PKM37L77HDC62S High Density D-Sub Connector
The Metalized Plas‘ D-Sub high-density solder cup connectors are designed for reliable, high-performance electrical connections in demanding environments. Crafted with UL 94 V-0 plastic insulators and nickel-over-copper plating, these connectors offer excellent durability and corrosion resistance. They feature glass-filled thermoplastic insulators, steel shells, and copper alloy contact pins with gold flash over nickel for enhanced electrical conductivity. With a voltage withstand of over 1000V RMS, current rating of 3A, and operating temperatures from -55°C to +85°C, these connectors provide versatile solutions for electronic and industrial applications.
Amphenol-Communications-Solutions L17D45PKM37L77HDC62S High Density D-Sub Connector Specifications:
- Material: UL 94 V-0 plastic
- Plating: Nickel over copper, gold flash over nickel
- Operating Temperature: -55°C to +110°C (D-Sub Hood), -55°C to +85°C (High Density Solder Cup)
- Cable Entry: Top Entry, up to 11.5mm diameter
- Shell Material: Steel, tin plated
- Contact Pins: Copper alloy, stamped and formed, class 3, minimum 100 inserts
- Electrical Ratings: Withstanding voltage >1000V RMS, current rating 3A
- Insulator Resistance: >5000 MΩ
- Grommet Sizes: D45PK-P, D45PK-M, 15-way, 25-way, 37-way configurations
- Features: EMI shielding 360°, re-openable grommet, various sizes HD 15-26-44-62
- Dimensions vary: HD 15 (31.0×36.3×15.0mm), HD 26 (39.5×40.3×15.0mm), HD 44 (53.2×40.3×15.0mm), HD 62 (69.7×40.3×15.0mm)
Buy the Amphenol Series High Density D-Sub: L17D45PKM37L77HDC62S
Buy the high-density D-Sub solder cup connector from Amphenol online today. Designed with UL 94 V-0 plastic and gold-plated contacts, it provides excellent corrosion resistance and electrical performance. Its robust steel shell and EMI shielding ensure reliable connections in challenging environments. Suitable for applications requiring high voltage withstand and precision in industrial, electronic, and communication systems. Easy to install, re-openable grommets, and available in various sizes to meet your specific project needs. Order now for superior performance and durability.
Order your Amphenol Series High Density D-Sub L17D45PKM37L77HDC62S today and ensure reliable, high-performance electronic connections for demanding applications.
Frequently Asked Questions
Where can I buy Amphenol-Communications-Solutions L17D45PKM37L77HDC62S?
You can click on the BUY or RFQ button to purchase L17D45PKM37L77HDC62S from an authorized Amphenol-Communications-Solutions distributor.
How do I troubleshoot issues or seek technical support for part L17D45PKM37L77HDC62S?
You can download the L17D45PKM37L77HDC62S datasheet or visit the Amphenol-Communications-Solutions website for support.
Who is the manufacturer of L17D45PKM37L77HDC62S?
Amphenol-Communications-Solutions
