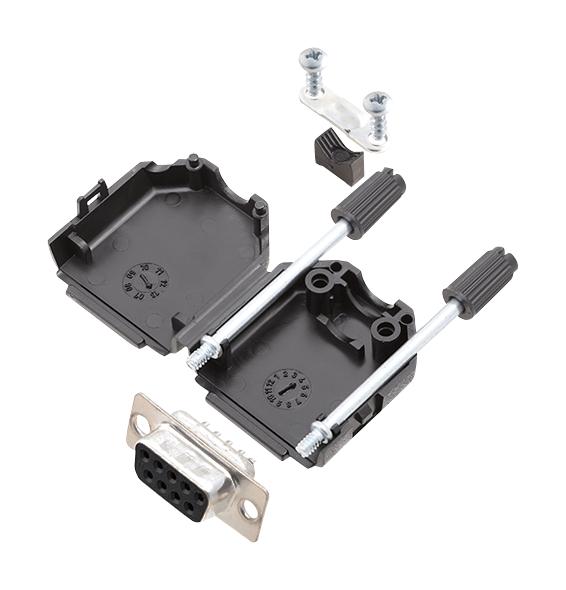

AMPHENOL COMMUNICATIONS SOLUTIONS L17DPPK09BKL77SDE09S D-Sub Connector Kit
This product is a versatile plastic D-Sub connector kit featuring a UL-recognized polyamide housing that withstands temperatures from -55°C to +105°C. The kit includes solder cup contacts with gold flash over nickel plating, rated for over 1000V RMS and 5A current. Suitable for sizes 9, 15, 25, and 37, these re-openable connectors are ideal for cable management in electronic and electrical applications. They offer reliable insulation resistance and standardized dimensions, ensuring robust and secure connections across various technical environments.
AMPHENOL COMMUNICATIONS SOLUTIONS L17DPPK09BKL77SDE09S D-Sub Connector Kit Specifications:
- Housing Material: Polyamid, UL-recognised
- Operating Temperature: -55°C to +105°C
- Cable Entry: Top
- Thumbscrews: UNC 4-40 (Standard)
- Cable O.D: Up to 8mm for 9-way, up to 11.5mm for 15, 25, and 37-way
- Insulator: Glass filled TP, UL94 V-0
- Shell Material: Steel, Tin Plated
- Contact Pins: Stamped & Formed Copper Alloy
- Contact Plating: Gold Flash over Ni.
- Withstanding Voltage: >1000V RMS to 50Hz for 1 minute
- Current Rating: 5A
- Insulator Resistance: >5000MQ min.
- Sizes Available: 9, 15, 25, 37
- Re-openable: Yes
- Dimensions for sizes vary, e.g., 9-way: 31.5 x 15.0 mm, 15-way: 40.0 x 15.0 mm, 25-way: 53.5 x 15.0 mm, 37-way: 70.0 x 15.0 mm
Buy the Amphenol Series D-Sub Connector: L17DPPK09BKL77SDE09S
Purchase the reliable D-Sub connector kit from Amphenol today. Designed with UL-recognised polyamide housing and gold-plated contacts, this versatile kit supports sizes 9, 15, 25, and 37, making it suitable for various industrial and electronic applications. The solder cup contacts provide secure, re-openable connections rated for over 1000V RMS and 5A current capacity. With excellent insulation resistance, high thermal stability, and standardized dimensions, these connectors ensure durable and safe electrical connections in demanding environments.
Buy Amphenol L17DPPK09BKL77SDE09S now and experience unmatched reliability and high-performance electrical connectivity for your electronic projects.
