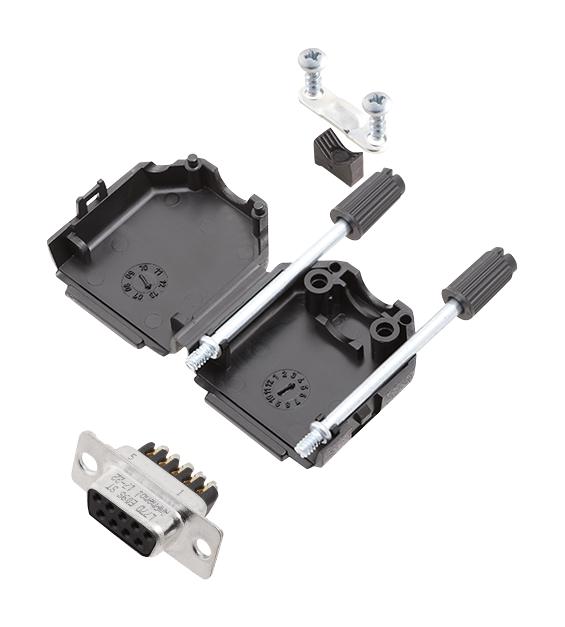

Amphenol-Communications-Solutions L17DPPK25BKL77DB25SST D-Sub Connector
The plastic hood is designed for D-Sub screw connectors, made from UL-recognized polyamide that withstands -55°C to +105°C. It features cable entry up to 11.5mm, with thumbscrews on top for easy installation. The shell is steel, tin-plated, and the insulator is glass-filled thermoplastic UL94 V-0. The connector has machined brass pins with 15 micro-inch gold plating over nickel, supporting AWG 18 wire. It withstands over 1000V RMS, with a current rating of 7.5A, and resistance over 5000MQ. Available in sizes 9, 15, and 25, this re-openable connector ensures reliable, durable connections.
Amphenol-Communications-Solutions L17DPPK25BKL77DB25SST D-Sub Connector Specifications:
- Housing material: Polyamide, UL-recognized
- Operating Temperature: -55°C to +105°C
- Cable Entry: Up to 11.5mm
- Thumbscrews: Top
- Shell: Steel, Tin Plated
- Contact pins: Machined Brass, 15u” Gold plated over Ni.
- AWG Wire Size: 18
- Contact Plating: Gold flash over Nickel
- Withstanding Voltage: >1000V RMS to 50 Hz for 1 minute
- Current Rating: 7.5A
- Insulator Resistance: >5000MQ min.
- Available in sizes: 9, 15, 25
- Re-openable design for easy maintenance
Buy the Buy Amphenol D-Sub Hood Part Number L17DPPK25BKL77DB25SST Online
Purchase the durable Amphenol D-Sub connector online today. With steel housing, brass pins, gold plating, and support for AWG 18 wires, this re-openable connector guarantees robustness and precision. Available in sizes 9, 15, and 25, it features UL-recognized polyamide, withstands high voltage and temperature ranges, and ensures reliable electrical connections. Ideal for industrial, automation, and electronics applications, ordering online provides quick access and dependable delivery for your project needs.
Order your Amphenol Series L17DPPK25BKL77DB25SST connector today and ensure reliable, high-quality connections for your industrial or electronic projects.
Frequently Asked Questions
Where can I buy Amphenol-Communications-Solutions L17DPPK25BKL77DB25SST?
You can click on the BUY or RFQ button to purchase L17DPPK25BKL77DB25SST from an authorized Amphenol-Communications-Solutions distributor.
How do I troubleshoot issues or seek technical support for part L17DPPK25BKL77DB25SST?
You can download the L17DPPK25BKL77DB25SST datasheet or visit the Amphenol-Communications-Solutions website for support.
Who is the manufacturer of L17DPPK25BKL77DB25SST?
Amphenol-Communications-Solutions
