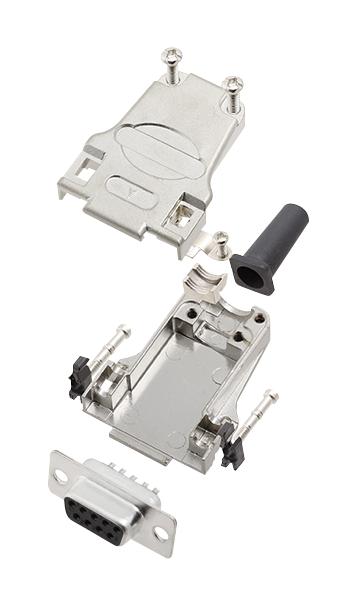

Amphenol-Communications-Solutions L17DTZF09RGL77SDE09S D-Sub Connector
The D-Sub Connector Kit series offers reliable industrial-grade connectivity solutions with zinc, nickel-plated shells, and glass-filled insulators rated for -45°C to +105°C. Designed with thumbscrews, these connectors support top entry cable configurations with compatible O.D. sizes up to 15mm, depending on the model. Featuring solder cup contacts with copper alloy pins and gold flash over nickel plating, the connectors provide excellent EMI shielding and withstand voltages over 1000V RMS. Suitable for various industrial applications requiring durable, re-openable connections with high current capacity and insulating resistance.
Amphenol-Communications-Solutions L17DTZF09RGL77SDE09S D-Sub Connector Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -45°C to +105°C
- Cable Entry: Top Entry, Thumbscrews UNC 4-40 (Standard)
- Cable O.D - Standard: 9-Way up to 6.5mm with grommet, 15-Way up to 6.5mm with grommet, 25-Way up to 8.0mm with grommet, 37-Way up to 9.0mm with grommet
- Insulator: Glass-filled TP, UL94 V-0
- Shell: Steel, Tin Plated
- Contact Pins: Copper Alloy
- Contact Plating: Gold Flash over Nickel
- Operating Voltage: >1000V RMS to 50 Hz for 1 minute
- Current Rating: 5A
- Insulator Resistance: >5000MQ min.
- Connectors Sizes: 9, 15, 25, 37
- Dimensions (DimA, DimB, DimC): 9-way 31.6/39.5/15.2 mm, 15-way 40.0/41.0/15.2 mm, 25-way 53.7/47.5/15.2 mm, 37-way 70.2/48.0/15.2 mm
Buy the Amphenol 09RGL77SDE09S – Reliable D-Sub Connector for Industrial Applications
Purchase the Amphenol D-Sub Connector kit online today for robust, corrosion-resistant connectors with high-temperature and voltage capabilities. These connectors feature zinc shells with nickel plating, glass-filled insulators, and solder cup contacts with gold flash over nickel, providing excellent EMI shielding, re-openable features, and reliable connections. Suitable for industrial automation, control systems, and high-voltage applications, these connectors ensure safe, durable, and high-performance operation. Order now to enhance your projects with quality connectivity solutions designed for challenging environments.
Order your Amphenol SeriesL17DTZF09RGL77SDE09S today and ensure durable, high-performance connectivity for your industrial projects.
