Amphenol-Communications-Solutions L17DTPKP15L77DA15SST D-Sub Connector Kit

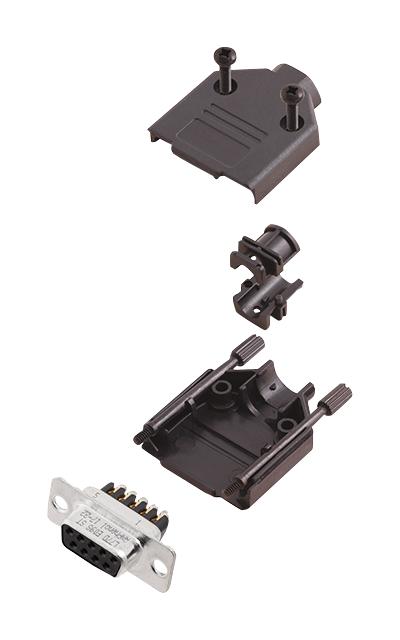

This product features a robust D-Sub hood constructed from UL 94 V-0 plastic material that withstands temperatures from -55°C to +110°C. It provides top cable entry with cable O.D. up to 11.5mm and is secured with UNC 4-40 thumbscrews. The D-Sub screw connector is made of glass-filled thermoplastic insulators, steel shells with tin plating, and machined brass contact pins plated with 15Y gold over nickel, supporting wire sizes up to AWG 18. Designed for reliable connections, it features strain relief inserts and re-openable grommets in sizes 9, 15, and 25, ensuring secure terminations and durability for industrial applications.
Amphenol-Communications-Solutions L17DTPKP15L77DA15SST D-Sub Connector Kit Specifications:
- Material: UL 94 V-0 plastic
- Operating Temperature: -55°C to +110°C
- Cable Entry: Top, Cable O.D. Up to 11.5mm
- Color: Black
- Insulator: Glass filled thermoplastic, UL94 V-0
- Shell: Steel, Tin Plated
- Contact Pins: Machined Brass, 15Y Gold Plated over Nickel
- Contact Rating: 7.5A
- Withstanding Voltage: >1000V RMS to 50 Hz for 1 minute
- Insulator Resistance: >5000 MΩ
- Wire Size: AWG 18
- Feature: Re-openable, Strain relief inserts, Sizes 9, 15, 25
- Grommet Sizes: DTPK-P, Dim A, Dim B, Dim C
- Dimensions: Size DTPK-P, 9-way 31.2 x 39.9 x 15.0 mm, 15-way 39.5 x 41.5 x 15.0 mm, 25-way 53.4 x 48.6 x 15.0 mm
Buy the Buy Amphenol D-Sub Hood Part Number L17DTPKP15L77DA15SST Online
Purchase the Amphenol D-Sub Connector Kit L17DTPKP15L77DA15SST online now for reliable, high-quality connections suitable for industrial applications. Crafted with durable materials, these connectors feature gold-plated contact pins for corrosion resistance, strain relief inserts for secure termination, and re-openable grommets in sizes 9, 15, and 25. Designed to handle voltages over 1000V, support wire sizes up to AWG 18, and operate efficiently from -55°C to +110°C, ensuring optimal performance and longevity. Order today for fast delivery and dependable connectivity solutions.
Get Amphenol L17DTPKP15L77DA15SST today—built for secure industrial connections and long-lasting durability.
