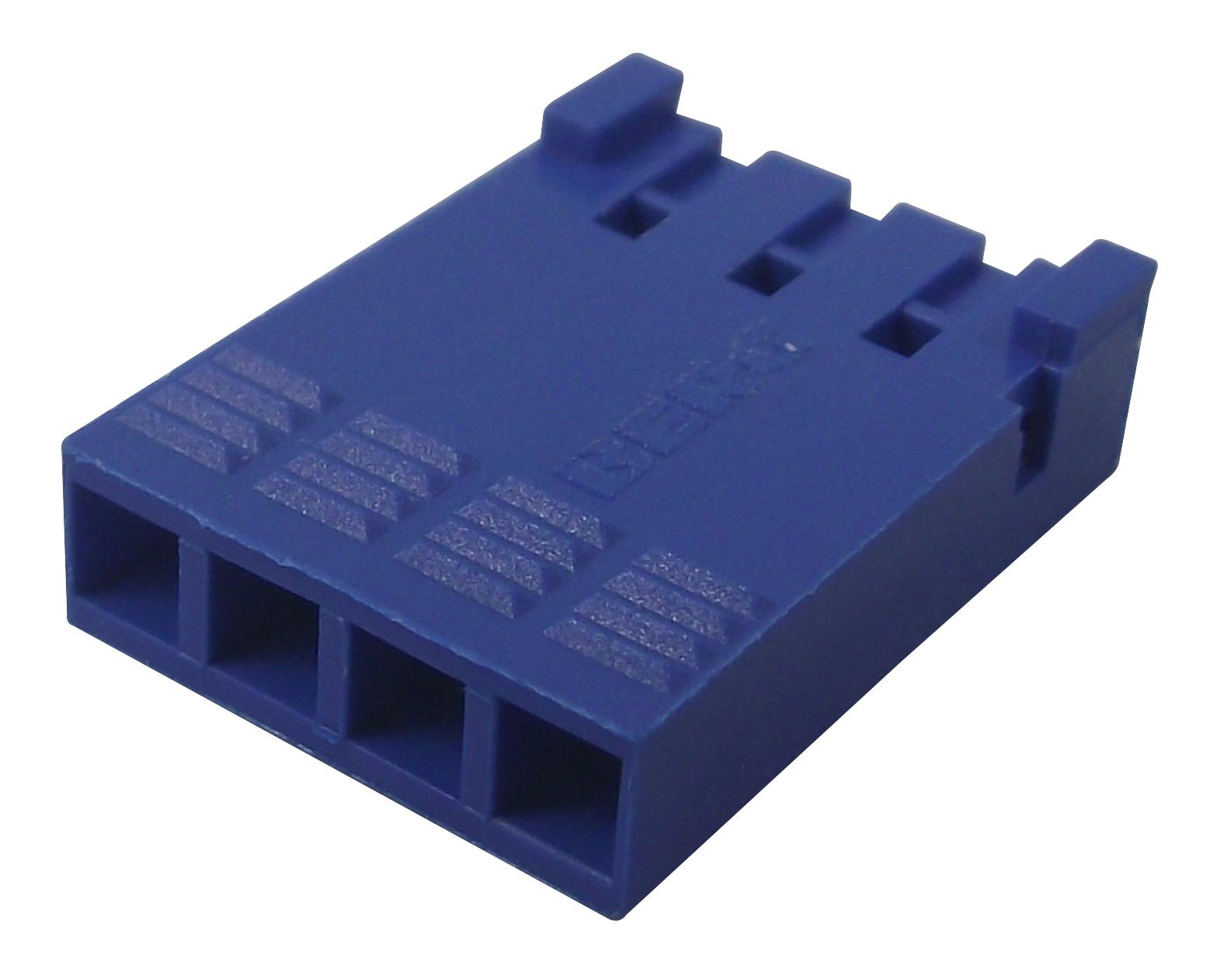

AMPHENOL COMMUNICATIONS SOLUTIONS 65240004LF Wire-to-Board Connector
The AMPHENOL PV[®] wire-to-board connector system provides a robust solution for connecting wires to printed circuit boards. Its innovative design incorporates dual-metal receptacle terminals that plug into standard posts, ensuring consistent contact pressure through numerous mating cycles. The system's versatility is enhanced by a range of containment, protection, and guidance options, making it suitable for applications in instrumentation, medical devices, industrial equipment, automotive electronics, and more. The shrouded header design further enhances retention and reduces the risk of disengagement, while keyed housings prevent mis-mating. The connector system is available in single or double row configurations and supports various wire sizes and plating options.
AMPHENOL COMMUNICATIONS SOLUTIONS 65240004LF Wire-to-Board Connector Specifications:
- Contact material: Brass body and beryllium copper spring
- Housing material: Modified polyphenylene oxide UL94V-0
- Contact plating: Gold or lead-free pure tin over nickel
- Current rating: 3.0A with 32 AWG wire
- Withstanding voltage: 1000V RMS
- Insulation resistance (wire connector): >10000MΩ
- Insulation resistance (PCB header): >5000MΩ
- Contact resistance: <2mΩ
- Product specification: BUS-12-067, BUS-12-075
- Application drawings: TA-75, TA-146, TA-531
- Approvals: UR E66906, CSA LR46923
- Maximum wire diameter: 1.52mm
Buy the 65240-004LF AMPHENOL COMMUNICATIONS SOLUTIONS Wire-to-Board Connector | myMectronic
Securely purchase the 65240-004LF connector and ensure reliable connections for your projects.
