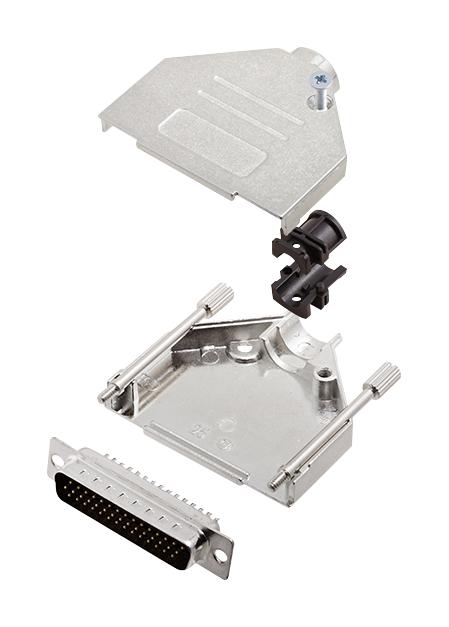

Amphenol Communications Solutions L17DTZK25L717HDB44P High Density D-Sub Connector
The high-density D-Sub connector kit offers robust solder cup connections in sizes HD15, HD26, HD44, and HD62, with top-entry cable management and a zinc nickel-plated shell for durability. Features include 360° EMI shielding, re-openable design, and high-temperature operation range of -55°C to +85°C. Contact pins are copper alloy with gold flash over nickel for excellent conductivity and corrosion resistance. Suitable for applications demanding high density and reliable signal integrity, these connectors provide a secure connection with a current rating of 3A and voltage withstand of over 1000V RMS. Available with male or female solder cup contacts, offering versatile connectivity options.
Amphenol Communications Solutions L17DTZK25L717HDB44P High Density D-Sub Connector Specifications:
- Material: Zinc, Nickel Plated shell
- Operating Temperature: -55°C to +85°C
- Cable Entry: Top Entry, Cable O.D up to 11.5mm
- Contacts: Copper Alloy with Gold flash over Nickel plating
- Contact Resistance: Insulator >5000MQ min.
- Withstanding Voltage: >1000V RMS to 50Hz for 1 minute
- Current Rating: 3A
- Insulator: Glass filled TP, UL94 V-0
- Shell: Steel, Tin Plated
- Contact Pins: Class 3, stamped & formed, 100 inserts min.
- Size Options: HD15, HD26, HD44, HD62
- Grommet Sizes: DTZK, Dimensions vary by size
- Features: EMI shielding 360°, re-openable, robust top entry, multiple sizes
Buy the Buy Amphenol High Density D-Sub Part Number L17DTZK25 Online
Enhance your electronic design with our high-density D-Sub circuit connectors featuring solder cup contacts, EMI shielding, and rugged construction. Designed for demanding applications, these connectors accommodate multiple sizes like HD15, HD26, HD44, and HD62, providing flexibility and high performance. The top-entry cable management and steel shell ensure durability, while gold-plated contacts guarantee excellent conductivity. Perfect for industrial and computing environments, these D-Sub connectors are re-openable, rated for over 1000V, and operate within a temperature range of -55°C to +85°C. Available now for quick online purchase.
Buy Amphenol L17DTZK25 now and experience unmatched reliability and high-density signal integrity for your electronic connections.
