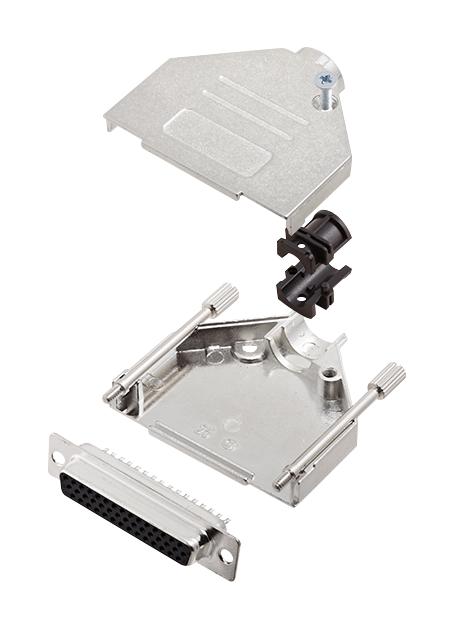

Amphenol-Communications-Solutions L17DTZK25L77HDB44S High Density D-Sub Connector
This high-density D-Sub connector features a zinc nickel-plated shell and glass-filled insulator rated UL94 V-0. It supports operating temperatures from -55°C to +85°C, with a contact rating of 3A and withstand voltage over 1000V RMS at 50Hz for 1 minute. The connector includes gold flash-plated copper alloy contact pins, a top-entry cable connection, and is re-openable. Available in sizes HD15, HD26, HD44, and HD62, it offers 360° EMI shielding, making it ideal for demanding industrial and electronic applications requiring high-density connections.
Amphenol-Communications-Solutions L17DTZK25L77HDB44S High Density D-Sub Connector Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -55°C to +85°C
- Cable Entry: Top Entry
- Cable O.D: Up to 11.5mm
- Insulator: Glass filled TP, UL94 V-0
- Shell: Steel, Tin Plated
- Contact Pins: Copper Alloy with Gold Flash over Nickel
- Contact Resistance: <20 milliohms
- Switching Voltage: >1000V RMS at 50Hz for 1 min
- Current Rating: 3A
- Insulation Resistance: >5000MQ min.
- Grommet Sizes: Size DTZK dimensions vary, e.g., 15-way 39.5 x 41.5 mm
- Available Sizes: HD15, HD26, HD44, HD62
- Features: EMI shielding, re-openable, robust construction
Buy the Umax L17DTZK25 High Density D-Sub Connector for Industrial Applications
Enhance your electronic systems with the Umax High Density D-Sub Connector. Featuring gold-plated copper contacts, robust zinc-nickel shell, and reliable EMI shielding, it provides secure, high-performance connections for industrial and electronic applications. Its top-entry design supports cable O.D. up to 11.5mm, and it is re-openable for maintenance. Available in various sizes including HD15, HD26, HD44, and HD62, this connector ensures durability and high resistance to environmental elements, making it an essential component for demanding industrial use.
Buy Umax L17DTZK25 high density D-Sub connector now and ensure reliable, EMI-shielded connections for your industrial electronics.
Frequently Asked Questions
Where can I buy Amphenol-Communications-Solutions L17DTZK25L77HDB44S?
You can click on the BUY or RFQ button to purchase L17DTZK25L77HDB44S from an authorized Amphenol-Communications-Solutions distributor.
How do I troubleshoot issues or seek technical support for part L17DTZK25L77HDB44S?
You can download the L17DTZK25L77HDB44S datasheet or visit the Amphenol-Communications-Solutions website for support.
Who is the manufacturer of L17DTZK25L77HDB44S?
Amphenol-Communications-Solutions
