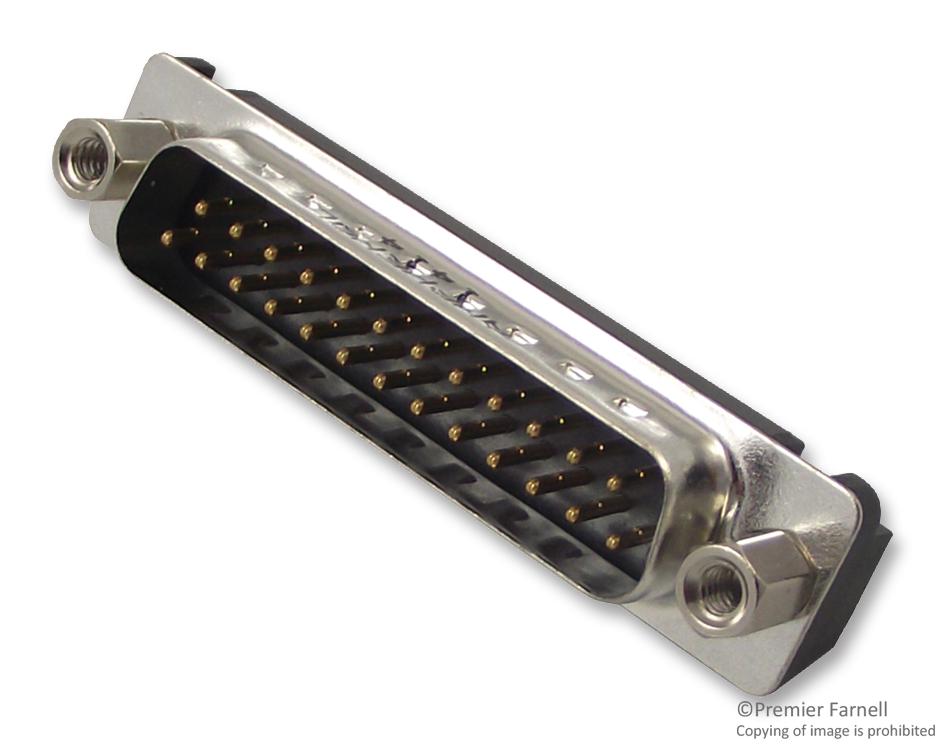

AMPHENOL COMMUNICATIONS SOLUTIONS L717TSBH25POL2RM8C309 D-Sub Connector
The L717TSBH25POL2RM8C309 is a high-quality D-sub connector featuring stamped and formed contacts, with a steel metal shell plated with tin over nickel. It supports board mounting options including #4-40 or M3 threaded inserts and offers RoHS-compliant plating with optional gold flash. Designed for reliable electrical connectivity, it has a current rating of 5A, voltage rating of 600V AC/rms, and withstands voltage up to 1000V AC/rms. Operating temperature ranges from -55°C to +125°C, making it ideal for industrial and communication applications.
AMPHENOL COMMUNICATIONS SOLUTIONS L717TSBH25POL2RM8C309 D-Sub Connector Specifications:
- Current rating: 5A
- Voltage rating: 600V AC/rms
- Withstand voltage: 1000V AC/rms for one minute
- Insulation resistance: 5000MQ
- Contact resistance: 10m max
- Operating temperature: -55°C to +125°C
- Shell material: Steel with tin over nickel plating
- Insulator: Glass-filled thermoplastic, UL 94V-0
- Contacts: Copper alloy with selective gold plating
- Boardlock: Brass with nickel plating
- Mechanical: Mating and unmating force of approximately 2+ kg
- Dimensions vary with shell size, standard dimensions provided
- RoHS compliant plating options available
- Shell size options: 8, 15, 25, 37
- Mounting options include rear insert with threaded or front screw lock
- RoHS compliant plating includes gold flash and tin options
- Connector supports applications up to 125°C temperature range
Buy the Buy Amphenol D-Sub Connector Part Number L717TSBH25POL2RM8C309 Online
Purchase the Amphenol D-Sub Connector Part Number L717TSBH25POL2RM8C309 online today to ensure robust, reliable connections in industrial, communication, and automation systems. Its stamped and formed contacts, high-quality steel shell with tin over nickel plating, and versatile mounting options make it ideal for demanding environments. With RoHS compliance and optional gold flashing, this connector guarantees superior electrical performance over a wide temperature range. Order now for fast delivery and dependable performance in your critical applications.
Buy Amphenol L717TSBH25POL2RM8C309 now and experience unmatched reliability and performance for industrial and communication connections.
