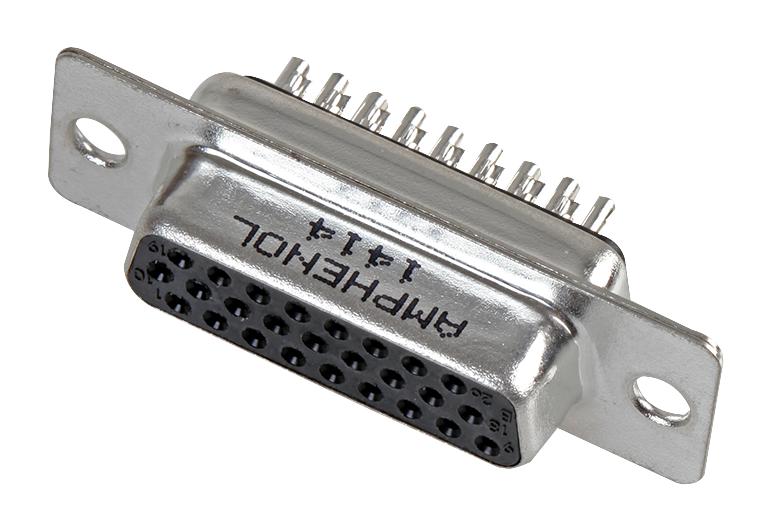

AMPHENOL COMMUNICATIONS SOLUTIONS L77HDC62SD1CH4R D-Sub Connector
The Amphenol SD series connectors feature solder-cup termination, standard and high-density options, stamped and formed contacts, with quality materials including steel shells with tin over nickel plating and brass contacts with gold flash and tin coatings. Designed for reliable performance in industrial and telecom applications, these connectors are rated for 5A or 3A, with a voltage rating of 250V AC and withstand voltage of 1000V AC. Operating in temperatures from -55°C to +125°C, they offer excellent insulation resistance, contact resistance, and rugged mechanical durability across various configurations and mounting options.
AMPHENOL COMMUNICATIONS SOLUTIONS L77HDC62SD1CH4R D-Sub Connector Specifications:
- Shell Material: Steel, tin over nickel plating
- Contacts: Brass with gold flash and tin coatings
- Current Rating: Standard Density 5A, Economical 3A
- Voltage Rating: 250V AC
- Withstanding Voltage: 1000V AC
- Operating Temperature: -55°C to +125°C
- Insulation Resistance: 1000MQ at 500V DC
- Contact Resistance: Max 20mΩ
- Material: UL 94V-0 thermoplastic insulator
- Mounting Options: Rear insert H/G, Female screwlock, panel mounting
- Density: Standard SD and High HD options
- Connector Configurations: varies by number of contacts from 9 to 78
- RoHS Compliant: Yes
- Plating: Gold flash 0.4μm (15μ"), 0.76μm (30μ") for specific parts
Buy the Amphenol Series SD Connectors: L77HDC62SD1CH4R
Order the Amphenol SD series D-Sub connectors online today for high durability, reliable solder-cup termination, and versatile configurations suitable for industrial and telecom environments. These connectors meet strict quality standards, offer excellent electrical performance, and feature rugged construction with steel shells and brass contacts, rated for 5A at 250V AC, with operating temp range from -55°C to +125°C. Perfect for all your electronic connection needs, secure mounting options, and RoHS compliance ensure safe, efficient installation and long-lasting use.
Buy Amphenol SD connectors now and experience unmatched reliability and performance in industrial and telecom applications.
