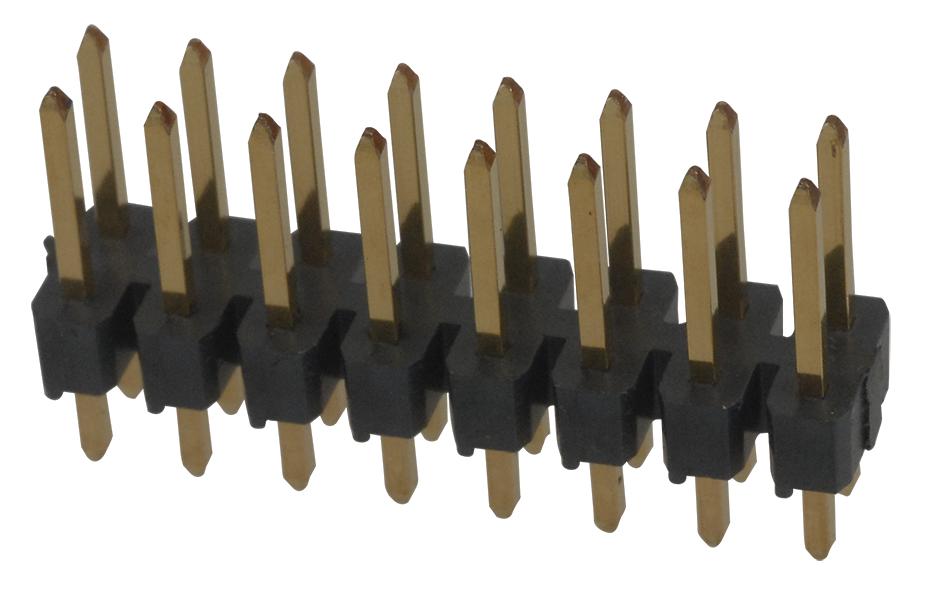

AMPHENOL COMMUNICATIONS SOLUTIONS 67996116HLF Board-to-Board Connectors
The BergStik 2.54mm unshrouded headers are versatile connectors available in surface-mount, through-hole, press-fit, stacking, and pin-in-paste versions. Designed for single and double row configurations, they support flexible mounting options including straight or right-angle orientations for various electronic applications. These headers feature a breakaway design for customizable lengths, high-temperature thermoplastic housing with UL94V-0 rating, and phosphor-bronze pins plated with gold or tin over nickel. Rated for 3A per contact, they withstand operating temperatures from -65°C to +125°C, offering reliable connectivity for industrial, automotive, and electronic device interconnections.
AMPHENOL COMMUNICATIONS SOLUTIONS 67996116HLF Board-to-Board Connectors Specifications:
- Housing: High temperature thermoplastic, Black, UL94V-0
- Pin Material: Phosphor-bronze, Plating: Gold or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Mechanical Retention Force: 9N min
- Retentive Leg Insertion Force: >44.48N max
- Compatibility: Wave, vapor-phase, IR reflow soldering
- Certification: RoHS compliant
- Housing: PCT (Pin-in-Paste version), suitable for exposure to peak temperatures of 260°C for 30 seconds
- Available in various configurations: single/double row, straight/right-angle, surface-mount, through-hole, stacking
- Package Types: Bags, tape-and-reel, tubes, with optional pick-up caps
- Dimensions: Ranges from 2 to 72 positions, with lengths up to 65mm available upon request
Buy the Fci 67996116HLF – Reliable Interconnect for Industrial Applications
Order the Fci 67996116HLF unshrouded headers online today for a dependable, high-quality connection solution suited for industrial, automotive, and electronic device applications. This versatile connector features 2.54mm pitch, high-temperature thermoplastic housing, gold or tin plating, and supports up to 3A per contact. With options for surface-mount, through-hole, and stack configurations, it ensures flexible integration into your PCB designs. Enjoy fast delivery, competitive pricing, and expert support when purchasing online, enhancing your project’s reliability and efficiency.
Buy Fci 67996116HLF now and experience unmatched reliability and performance in your electronic interconnect solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 67996116HLF?
You can click on the BUY or RFQ button to purchase 67996116HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 67996116HLF?
You can download the 67996116HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 67996116HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
