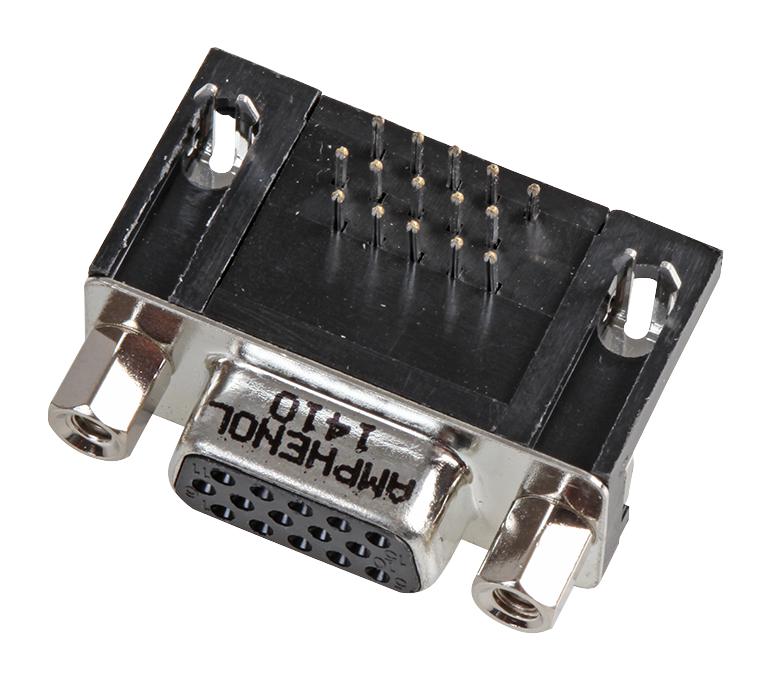

AMPHENOL COMMUNICATIONS SOLUTIONS L77HDE15SD1CH4F High Density D-Sub Connector
Amphenol's high density D-Sub connectors offer reliable signal connections with features like gold-plated contacts and robust thermoplastic shells, designed for high-performance industrial and telecom applications. These connectors support multiple mounting options including front screwlock and rear insert, with high current and voltage ratings up to 3A and 250V AC respectively. Suitable for dense signal environments, they withstand extreme temperatures from -55°C to +125°C and resist salt spray, ensuring durability in harsh conditions. They are compliant with RoHS standards, providing environmentally friendly connectivity solutions with precise specifications for reliable performance.
AMPHENOL COMMUNICATIONS SOLUTIONS L77HDE15SD1CH4F High Density D-Sub Connector Specifications:
- Shell material: Steel, tin over nickel plating
- Insulator: Glass-filled thermoplastic, UL 94V-0
- Pin contact: Brass, gold in mating area, tin on termination
- Socket contact: Phosphor bronze or Brass, gold in mating area, tin on termination
- Current rating: 3A
- Voltage rating: 250V AC rms 50Hz
- Withstanding voltage: 1000V AC rms for one minute
- Insulation resistance: 5000MQ at 500V DC
- Contact resistance: 10mQ max
- Operating temperature: -55°C to +125°C
- Salt spray resistance: 24 hours
- Insertion force: 0.34kg (0.75lb) max.
- Withdrawal force: 0.02kg (0.044lb) min.
- Gold plating options: Flash, 0.4um (15p"), 0.76um (30p")
- Dimensions vary based on shell size, e.g., for 15 contacts: 30.84mm length, 24.99mm width
- RoHS compliant and designed for high signal density applications
Buy the Amphenol L77HDE15SD1CH4F – Reliable High Density D-Sub Connector for Industrial Applications
Order the high-density D-Sub connector from Amphenol today and ensure your industrial or telecom systems benefit from superior signal integrity, robust construction, and reliable performance. Featuring gold-plated contacts, multiple mounting options, and excellent resistance to extreme temperatures and salt spray, this connector guarantees long-lasting durability in harsh environments. Perfect for high signal density environments, it supports RoHS compliance and easy installation. Secure your reliable connectivity solution now by purchasing online and enjoy seamless integration across various industries with top-tier performance and environmentally friendly design standards.
Buy Amphenol L77HDE15SD1CH4F now and experience unmatched durability and high-performance signal connectivity for demanding industrial and telecom projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L77HDE15SD1CH4F?
You can click on the BUY or RFQ button to purchase L77HDE15SD1CH4F from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L77HDE15SD1CH4F?
You can download the L77HDE15SD1CH4F datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L77HDE15SD1CH4F?
AMPHENOL COMMUNICATIONS SOLUTIONS
