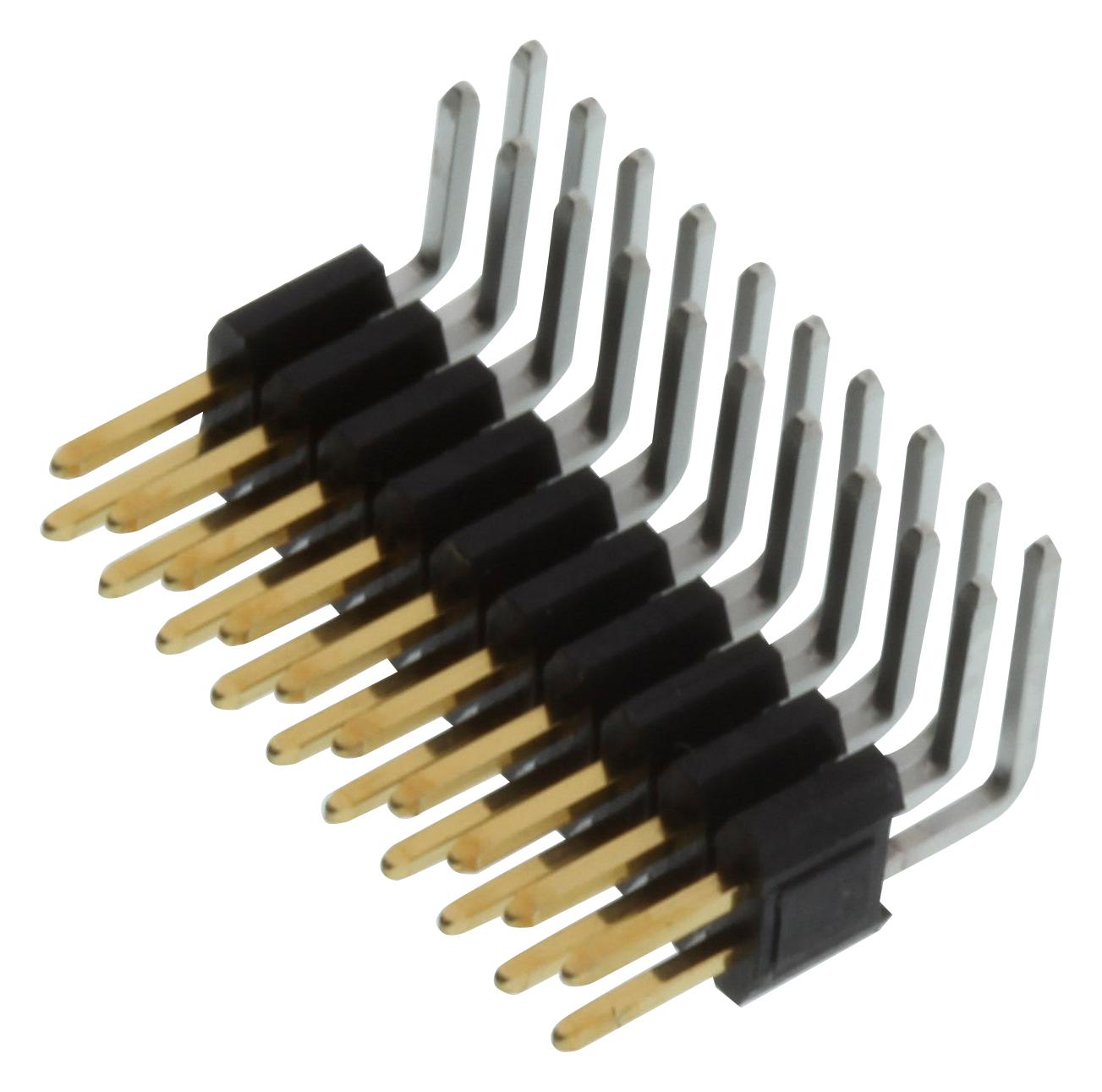

AMPHENOL COMMUNICATIONS SOLUTIONS 2002111200020T4LF Board-to-Board Connector
The Minitek127 standard board-to-board connector is a 1.27mm pitch modular system featuring halogen-free materials, gold flash and matte tin finishes. It includes straight, right-angle, surface mount options, and various plating choices such as 15u”, 30u” GXT. Designed for reliable electrical performance, it supports 1.0A current, operates at 125VAC, and withstands temperatures from -55°C to +125°C. Suitable for industrial controls, medical, data, and communication applications, it offers up to 100 positions with incremental options and customized pin loading for versatile PCB connectivity.
AMPHENOL COMMUNICATIONS SOLUTIONS 2002111200020T4LF Board-to-Board Connector Specifications:
- Pitch: 1.27mm
- Material: Copper Alloy contact base, high temperature resin housing
- Finishes: Gold flash, 10u”, 15u” GXT, 30u” GXT over nickel, matte tin over nickel (solder area)
- Electrical: Contact resistance 30 milliohms, insulation resistance 1000Megohms minimum, current rating 1.0 amp/contact, voltage rating 125VAC
- Temperature Range: -55°C to +125°C
- Environmental: Humidity 95% for 96 hours, class IIA gas
- Mechanical: Durability 100 cycles, mating force 2.2N max/contact, un-mating force 0.2N min/contact
- Packaging: Tape and reel, tube
- Series: 20021121, 20021111, 20021112, 20021311, 20021321
- Certification: UL listed, file no. E66906
Buy the FCI Series Minitek127 Board-to-Board Connector: 2002111200020T4LF
Enhance your electronic assemblies with the FCI Series Minitek127 board-to-board connector, offering 1.27mm pitch, high-quality halogen-free materials, and multiple mounting options. Designed for reliable electrical performance, it handles up to 1.0A and 125VAC, ensuring safe operation across a wide temperature range from -55°C to +125°C. Suitable for industrial controls, medical devices, and communication equipment, this connector supports up to 100 positions with incremental configurations. Order online today to get dependable, versatile PCB connectivity for your projects.
Order your FCI Series Minitek127 Board-to-Board Connector today and ensure reliable PCB connections for your industrial and medical projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 2002111200020T4LF?
You can click on the BUY or RFQ button to purchase 2002111200020T4LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 2002111200020T4LF?
You can download the 2002111200020T4LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 2002111200020T4LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
