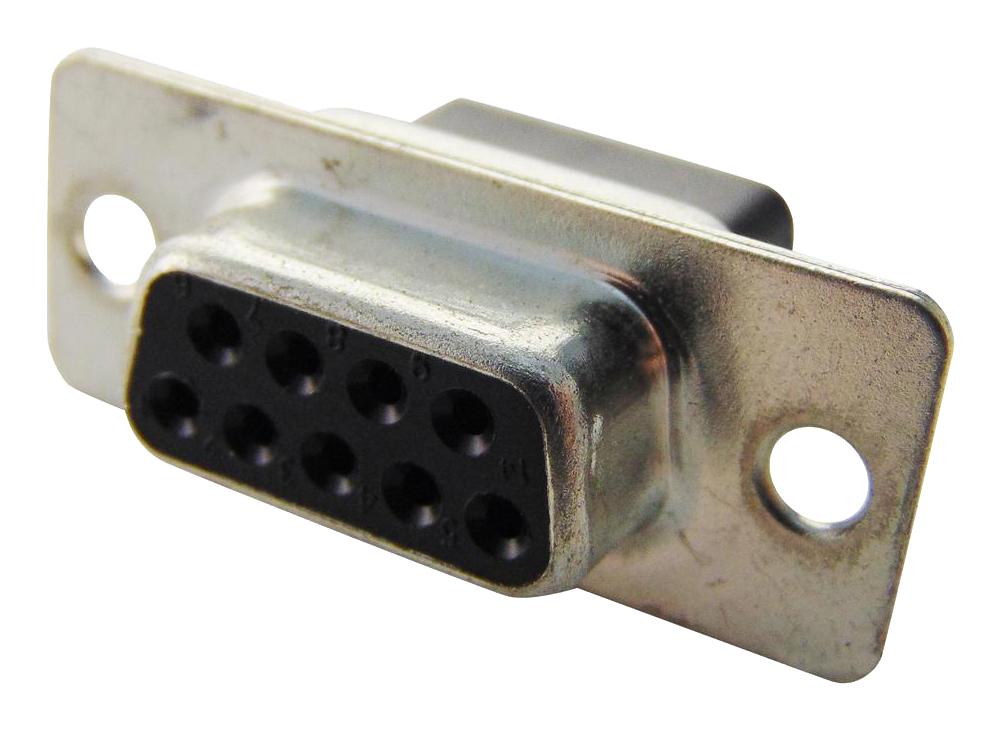

AMPHENOL COMMUNICATIONS SOLUTIONS L77SDEH09SOL2RM5C309 PCB Connector
The Amphenol SD series features precision-formed contacts and insulated closed-entry contact cavities, ensuring high reliability and quality for industrial, telecom, and standard industrial connections. Designed for economical PCB mounting, these connectors come in both standard and high-density versions with various configurations suitable for commercial environments. Made with durable materials, including UL 94V-0 thermoplastic insulators and gold-plated contacts for excellent electrical connectivity, they support high temperature ranges from -55°C to +125°C, with suitable electrical ratings and robust mechanical performance for demanding applications.
AMPHENOL COMMUNICATIONS SOLUTIONS L77SDEH09SOL2RM5C309 PCB Connector Specifications:
- Material: Steel shell, UL 94V-0 thermoplastic insulator
- Contact Material: Brass with gold plating, tin on termination
- Contact Plating Thickness: 0.381 μm (151 mils) gold flash or 0.76 μm (30 mils) gold
- Current Rating: Standard Density 5A, High Density 3A
- Voltage Rating: 250V AC/rms, 1000V AC/rms at 50Hz
- Withstanding Voltage: 1000V AC for one minute
- Insulation Resistance: 1000MΩ at 500V DC
- Contact Resistance: Max 20mΩ
- Operating Temperature: -55°C to +125°C
- Mechanical Force: SD contact insertion 0.06kg to 0.54kg, HD contact 0.02kg to 0.52kg
- Dimensions: Overall length varies by configuration, standard thickness insulator 0.030 inches
- Certifications: RoHS compliant, MIL-C-24308, NFC 93425-HES
Buy the Amphenol Series SD Connectors: L77SDEH09SOL2RM5C309
Order the Amphenol SD series PCB connectors online now for reliable, high-quality industrial and telecom connections. These connectors feature precision-formed contacts, durable materials, and superior electrical ratings, supporting high temperature ranges from -55°C to +125°C. Designed for cost-effective PCB mounting, they come in standard and high-density configurations with various configurations including screwlock, retention clips, and different mounting options. Experience fast delivery and enhance your assembly with these ROHS compliant, UL rated connectors designed to meet industry standards for performance and safety.
Get Amphenol SD series connectors today—built for precise connections and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L77SDEH09SOL2RM5C309?
You can click on the BUY or RFQ button to purchase L77SDEH09SOL2RM5C309 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L77SDEH09SOL2RM5C309?
You can download the L77SDEH09SOL2RM5C309 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L77SDEH09SOL2RM5C309?
AMPHENOL COMMUNICATIONS SOLUTIONS
