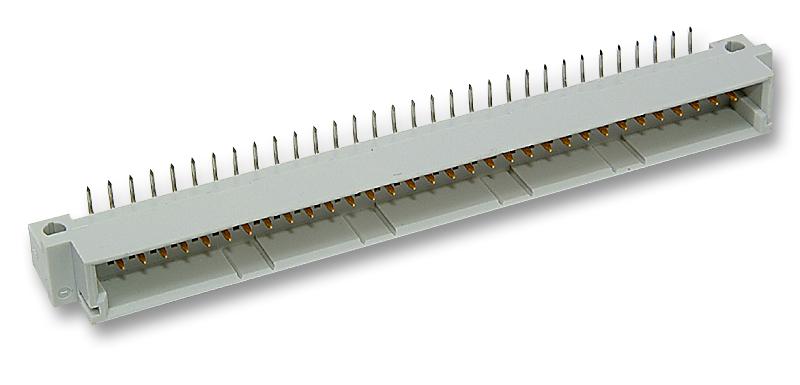

AMPHENOL COMMUNICATIONS SOLUTIONS 86092645113755E1LF DIN 41612 Signal Connectors
DIN 41612 Signal Headers and Receptacles are high-density, cost-effective connectors designed for modular PCB applications in industrial, telecom, and data markets. They feature a 2.54mm pitch, are made from polyester thermoplastic insulators, and use copper alloy contacts with gold over nickel or GXT® over nickel plating. Suitable for solder and press-fit terminations, these connectors withstand temperatures from -55°C to +125°C and are UL and CSA certified, offering reliable electrical performance and mechanical robustness for routing PCB traces and ensuring system flexibility.
AMPHENOL COMMUNICATIONS SOLUTIONS 86092645113755E1LF DIN 41612 Signal Connectors Specifications:
- Pitch: 2.54mm
- Material: Insulator - Polyester Thermoplastic; Contact - Copper Alloy
- Plating: Gold over Nickel or GXT® over Nickel on mated area; Tin over Nickel on solder end
- Temperature Range: -55°C to +125°C
- Current Rating: 1.5A at 20°C, max 2A
- Test Voltage: 1000V (rms)
- Contact Resistance: < 20mΩ
- Insulation Resistance: > 10^9Ω
- Vibration: < 40mΩ
- Shock: < 40mΩ
- Creepage & Clearance: > 1.2mm
- Mating Force: < 0.94N per contact
- Mating Extraction Force: > 0.15N per contact
- Certifications: UL and CSA approved
- Environmental: Damp heat steady state for 56 days (Class 1), 21 days (Class 2); -55°C to +125°C operational temperature
Buy the Amphenol Series DIN 41612 Signal Connectors Part Number 86092645113755E1LF
Enhance your electronic assembly with our high-quality DIN 41612 signal headers and receptacles. Designed with a 2.54mm pitch, they offer excellent modularity, durability, and electrical performance for industrial, telecom, and data applications. Made from thermoplastic insulators and copper alloy contacts with gold or GXT® plating, these connectors support solder and press-fit terminations. Certified by UL and CSA, they withstand harsh temperatures, vibrations, and shocks, ensuring long-term system reliability and flexible routing for high-density PCB configurations.
Buy Amphenol DIN 41612 signal headers and receptacles now and experience unmatched reliability and versatile PCB connectivity.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 86092645113755E1LF?
You can click on the BUY or RFQ button to purchase 86092645113755E1LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 86092645113755E1LF?
You can download the 86092645113755E1LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 86092645113755E1LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
