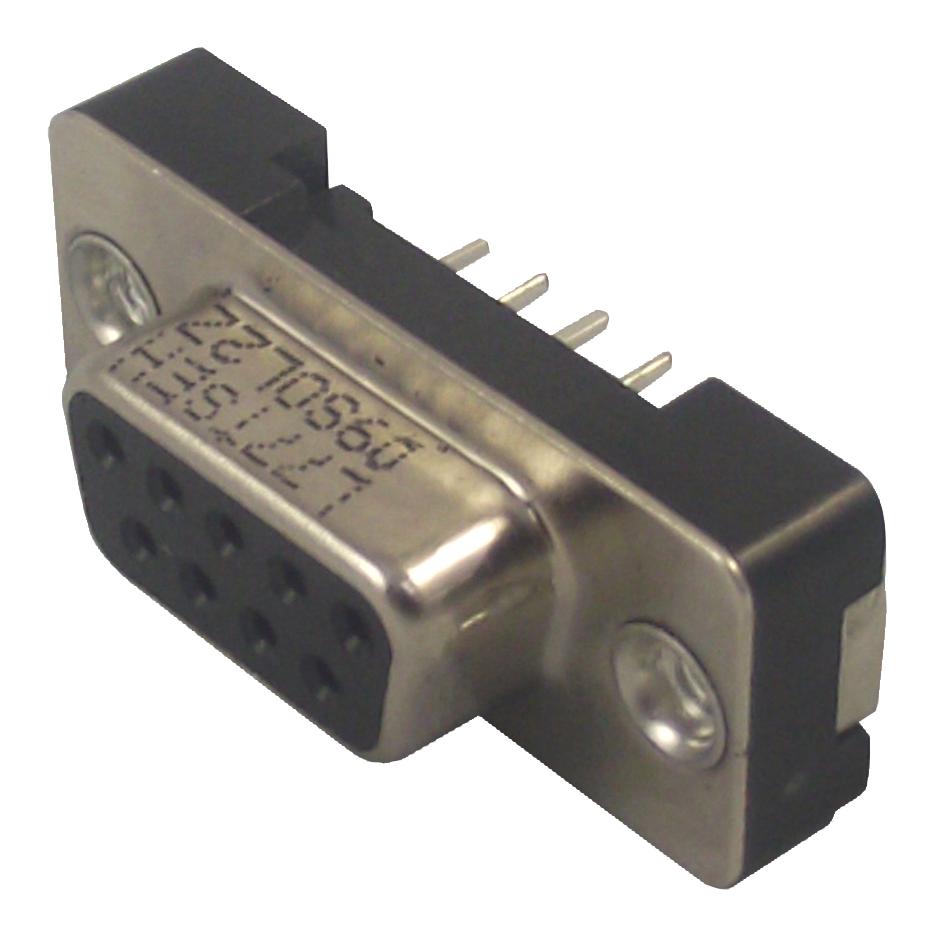

AMPHENOL COMMUNICATIONS SOLUTIONS L77TSEH09SOL2 High-Reliability D-Sub Connector
The L77TSEH09SOL2 is a high-reliability D-sub connector featuring stamped and formed contacts, a steel shell with nickel plating, and a thermoplastic insulator. Designed for PCB termination, it supports up to 9 contacts with a current rating of 5A and a voltage rating of 600V AC, with an insulation resistance of 5000MQ. Suitable for industrial and telecom applications, it operates within -55°C to +125°C. Mechanical design includes various mounting options, with dimensions compatible across multiple shell sizes and contact arrangements, ensuring robust connection performance.
AMPHENOL COMMUNICATIONS SOLUTIONS L77TSEH09SOL2 High-Reliability D-Sub Connector Specifications:
- Material: Steel shell with tin over nickel plating, thermoplastic insulator UL 94V-0, copper alloy contacts with gold plating, brass boardlock and screwlock with nickel plating
- Current rating: 5A
- Voltage rating: 600V AC/rms
- Withstanding voltage: 1000V AC/rms for one minute
- Insulation resistance: 5000MQ
- Contact resistance: 10m max
- Operating temperature: -55°C to +125°C
- Dimensions vary with shell size, typical dimensions include shell size 9 (30.84mm), 15 (39.24mm), 25 (53.04mm), 37 (69.34mm)
- Mating and unmating force: 2 + industrial, with maximum 5 contacts (approximately 3.05 kg / 6.74 lb for 9 contacts)
- RoHS compliant plating options, with optional gold flash and dimples for PCB mounting
- Panel mounting options include #4-40 or M3 threads, with various boardlock configurations
Buy the Amphenol Series High-Reliability D-Sub Connector: L77TSEH09SOL2
Secure your industrial and telecom projects with the high-reliability D-Sub connector offering stamped contacts, steel shell, and versatile mounting options. Rated for 5A and 600V, it withstands harsh environments from -55°C to +125°C, ensuring consistent performance. Easy PCB termination, RoHS compliant plating, and various mounting configurations make this connector perfect for your demanding applications. Whether for rugged equipment or precise wiring, this D-Sub connector provides durability, reliability, and excellent electrical characteristics for long-lasting connections.
Order your Amphenol Series High-Reliability D-Sub Connector L77TSEH09SOL2 today and secure dependable industrial and telecom connectivity.
