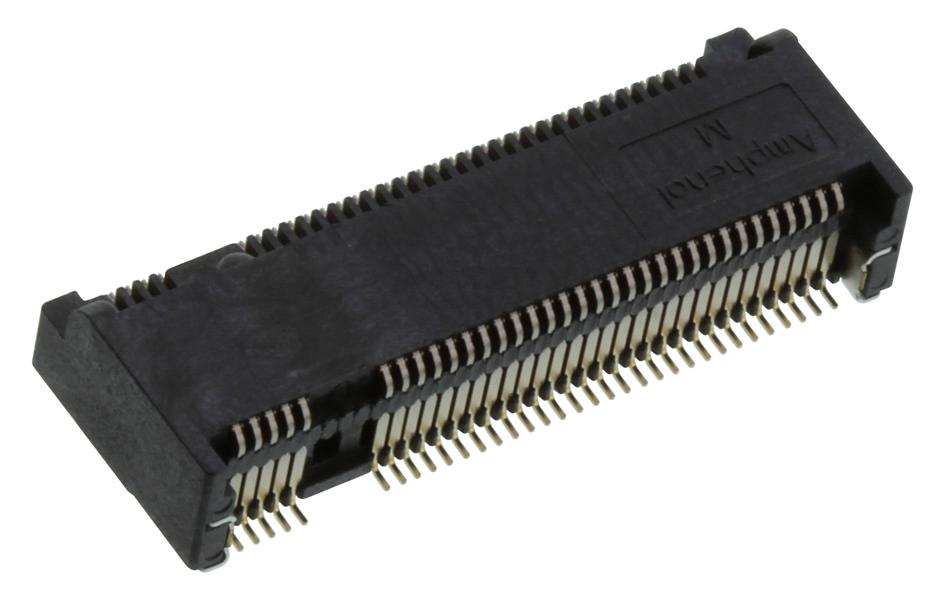

AMPHENOL COMMUNICATIONS SOLUTIONS MDT275M03001 M.2 PCIe Connector
The PCIe M.2 Gen 3 and Gen 4 card edge connectors by Amphenol ICC are high-density, high-performance connectors designed for compact applications such as tablets, laptops, and storage devices. They feature 67 contacts on a 0.50mm pitch, supporting data rates up to 8Gb/s for Gen 3 and 16Gb/s for Gen 4. These connectors accommodate both single and double-sided modules, offer various height options, and support right-angle or vertical orientations. Their robust design ensures durability with up to 5,000 mating cycles, making them suitable for high-speed data transfer and space-constrained environments.
AMPHENOL COMMUNICATIONS SOLUTIONS MDT275M03001 M.2 PCIe Connector Specifications:
- Contact Material: Copper alloy with gold plating
- Contact Finish: Compatible with lead-free soldering
- Housing Material: UL 94 V-0 compliant, lead-free solderable
- Number of Contacts: 67 on 0.50mm pitch
- Electrical Performance: 55mΩ max. initial contact resistance, >5 x 10⁸Ω insulation resistance at 500V DC
- Voltage Rating: 50V AC per contact
- Current Rating: 0.5A per contact, with temperature rise not exceeding 30°C
- Durability: Up to 5,000 mating cycles (gold-plated contacts)
- Operating Temperature: -40°C to +80°C
- Environmental Resistance: Suitable for shock and vibration, compliance with EIA standards
- Mechanical Insertion Force: Max 20N
- Packaging: Tape & Reel
- Compliance: Meets PCI-SIG M.2 specifications, UL 94 V-0
- Application: Suitable for wireless, laptops, tablets, storage devices
Buy the Amphenol Series M.2 PCIe: MDT275M03001
Enhance your system's performance with the high-density M.2 PCIe connectors from Amphenol ICC. Designed for space-constrained applications like laptops, tablets, and storage devices, these connectors support scalable data rates up to 16Gb/s with Gen 4 compatibility. Featuring a durable design, they withstand up to 5,000 mating cycles and offer flexible height and orientation options. Perfect for engineers and designers seeking reliable, high-speed connectivity that maximizes space and performance, these connectors are available for quick online purchase.
Order your Amphenol Series M.2 PCIe MDT275M03001 connector today and ensure reliable, high-speed data transfer for your advanced storage and computing projects.
