AMPHENOL COMMUNICATIONS SOLUTIONS 1014270806100LF Power Connector System
The Minitek Pwr 5.70mm Connector System is a versatile power connection solution designed for wire-to-board applications with high current capacity up to 23A per contact. It features polarized mating geometry, high-conductivity copper contacts, UL94V-0 flame-rated materials, and ensures environmental resistance against corrosion. Suitable for various electronics and household appliances, it offers both vertical and right-angle configurations, making it a reliable choice for high-power, compact, and safety-critical systems. Its durable design supports numerous mating cycles and maintains performance at high temperatures from -40°C to 120°C.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014270806100LF Power Connector System Specifications:
- Current Rating: Up to 23A per contact
- Voltage Rating: 600V AC/DC
- Material: High-conductivity copper with optional tin and gold plating
- Housing Material: LCP and Nylon 66, UL94V-0 & UL94V-2 rated
- Operating Temperature: -40°C to 120°C (gold plated), -40°C to 105°C (tin plated)
- Contact Resistance: 10mΩ max. (tin plated), 5mΩ max. (gold plated)
- Mating Force: Tin plated 6.8N, gold plated 6.0N per circuit
- Unmating Force: Tin plated 6.5N, gold plated 5.6N per circuit
- Durability: 25 cycles (tin plated), 200 cycles (gold plated)
- Insulation Resistance: 1000MΩ min.
- Dielectric Withstand Voltage: 2200V AC
- Dimensions: Includes dual and right-angle headers with UL94V-0 and UL94V-2 housings

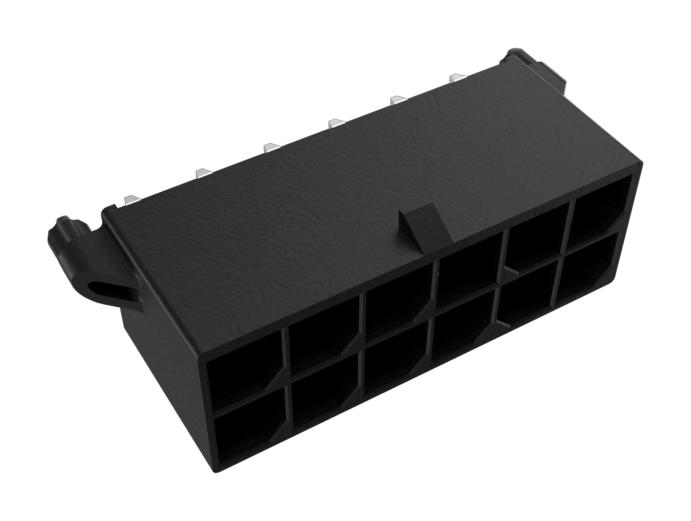

Buy the Buy Amphenol Minitek Pwr 5.70mm Part Number 1014270806100LF Online
Discover the robust Amphenol Minitek Pwr 5.70mm Connector System, engineered for reliable high-current power connections up to 23A per contact. Its polarized, environment-resistant design ensures secure mating and exceptional durability over hundreds of cycles. Suitable for household appliances, industrial equipment, and electronics, it features UL-rated materials, wide temperature tolerance from -40°C to 120°C, and various housing options for versatility. Purchase online today to enhance your power distribution systems with a trusted, high-quality connector designed for safety, efficiency, and longevity.
Get Amphenol Minitek Pwr 5.70mm 1014270806100LF today—designed for high current and secure connections in power electronics.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 1014270806100LF?
You can click on the BUY or RFQ button to purchase 1014270806100LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 1014270806100LF?
You can download the 1014270806100LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 1014270806100LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
