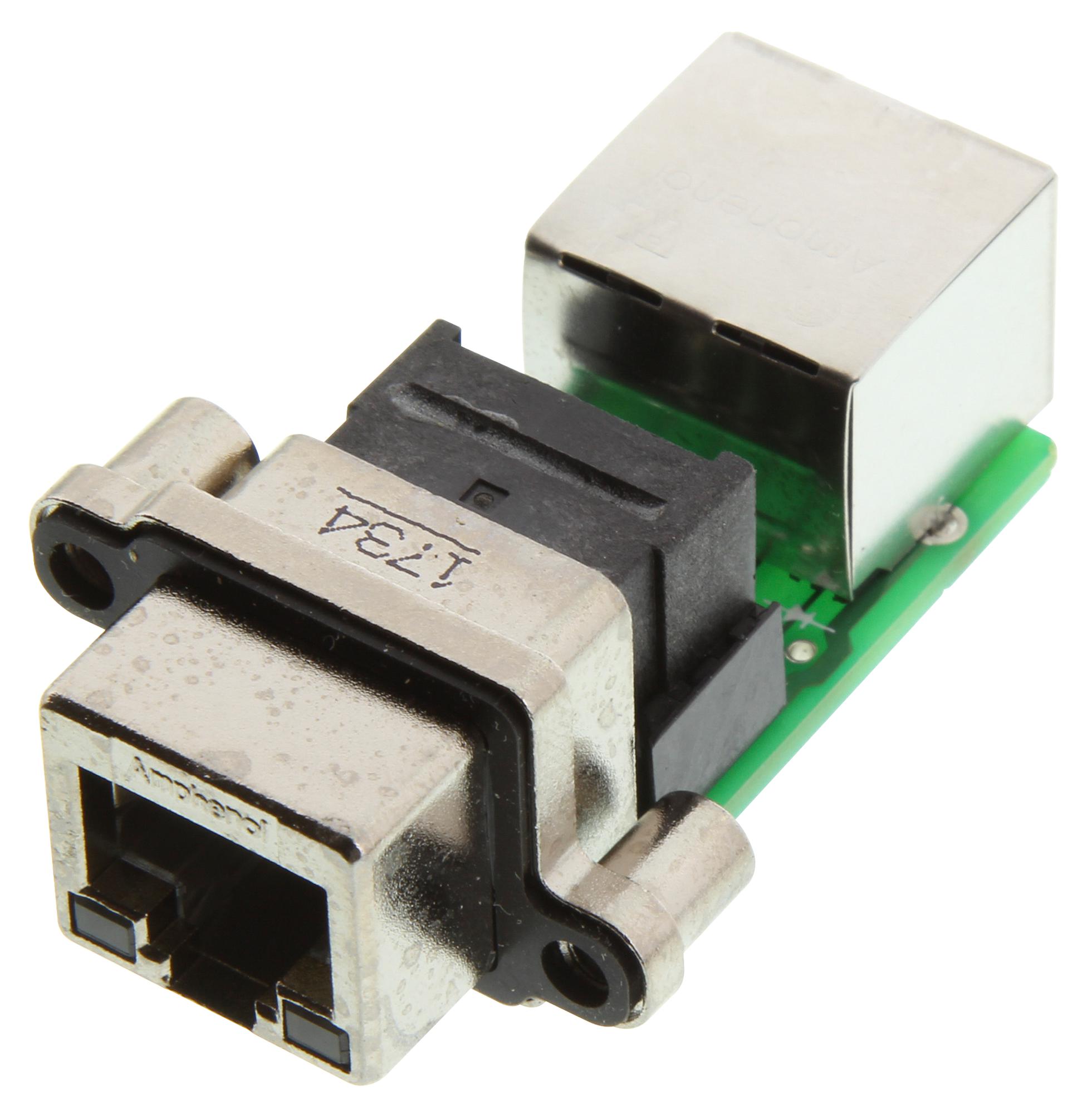

AMPHENOL COMMUNICATIONS SOLUTIONS MRJ578101 Industrial PCB Connector
The MRJ Series connector by Amphenol offers versatile PCB mount options, including vertical and right-angle terminations with 8 or 10 positions. Designed for harsh environments, it provides IP67 protection and supports Ethernet data rates of 10BaseT and 100BaseT. Features include dust covers, optional LEDs, EMI filtering, and compatibility with various mounting and wiring configurations such as cable headers and terminal blocks. Made from durable materials like high-temperature thermoplastics and zinc alloys, this connector is ideal for industrial, military, medical, and telecommunications applications, ensuring reliable connections in demanding conditions.
AMPHENOL COMMUNICATIONS SOLUTIONS MRJ578101 Industrial PCB Connector Specifications:
- Current rating: 1.5A per contact
- Insulation Resistance: 500 MΩ min
- Dielectric Withstand Voltage: 1000/1500 V AC
- Operating temperature: -40°C to +105°C
- Material: Phosphor Bronze contacts, high-temp thermoplastic housing, zinc alloy shell
- Contact resistance: 30 mΩ max
- Mating cycles: 2500
- Humidity: per EIC512-6 / EIA364-11A
- Vibration resistance: per EIA364-28, Condition 5A
- Salt spray: per EIA364-26, 250 hours
- Recommended torque: 0.45 to 0.65 Nm
- Ingress Protection: IP67 standard
- Soldering: wave or hand at 150°C for 180 sec, and 265°C for 8 sec
Buy the Amphenol Series MRI: Waterproof Industrial Connector MRJ578101
Purchase the Amphenol Series MRI MRJ578101 connector online now to ensure reliable and durable connections in industrial, military, and telecommunications projects. Featuring IP67 protection, 8 or 10 contact options, LED indicators, EMI filtering, and robust construction, this connector is ideal for harsh environments. Easy to install with various termination styles such as vertical, right-angle, and cable headers. Trust in Amphenol's high-quality design to deliver secure and long-lasting performance for professional applications. Buy online today for fast, convenient delivery and support.
Order your Amphenol Series MRI MRJ578101 connector today and equip your projects with reliable, durable connectors suitable for harsh environments and demanding applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS MRJ578101?
You can click on the BUY or RFQ button to purchase MRJ578101 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MRJ578101?
You can download the MRJ578101 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of MRJ578101?
AMPHENOL COMMUNICATIONS SOLUTIONS
