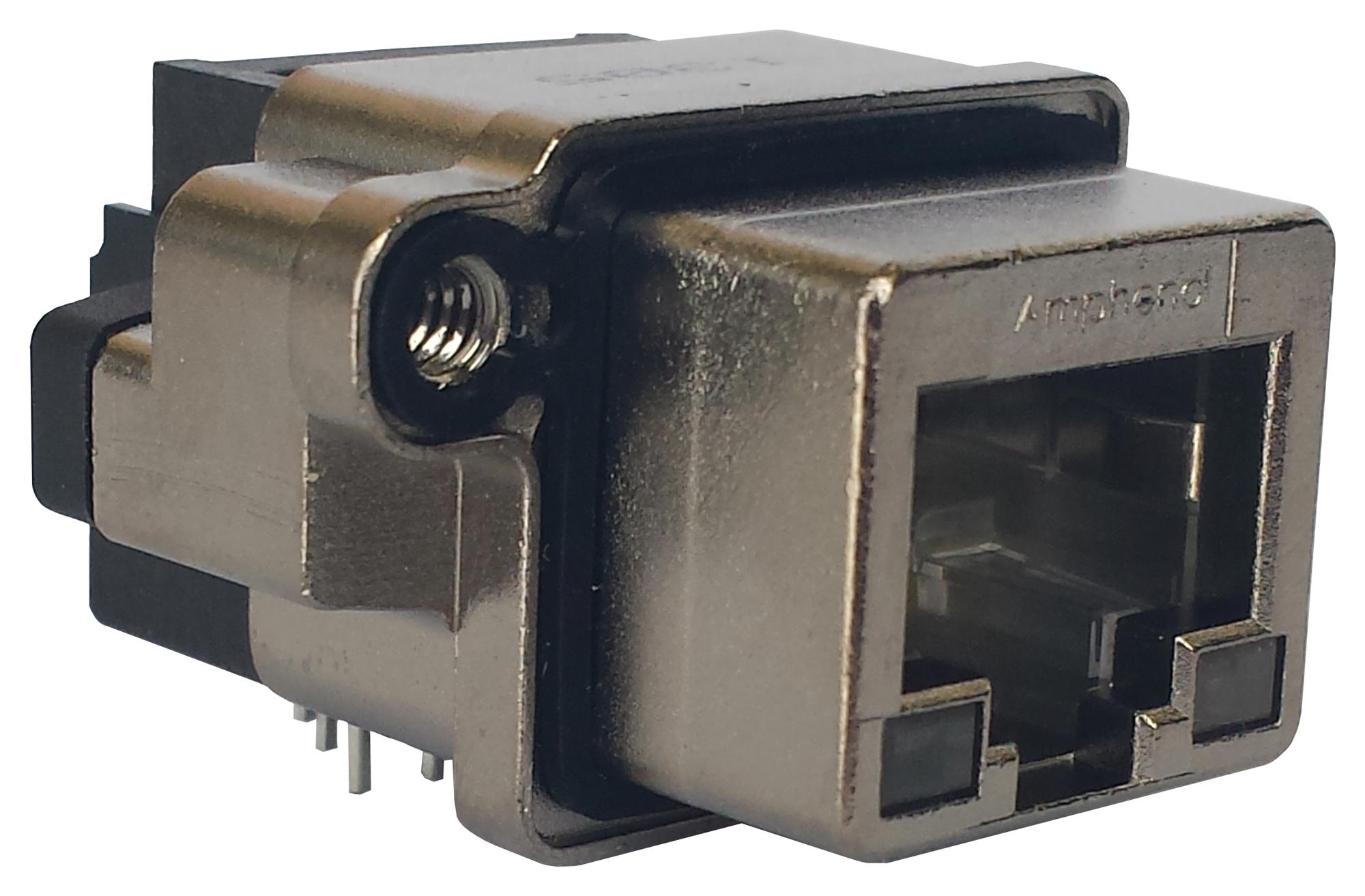

AMPHENOL COMMUNICATIONS SOLUTIONS MRJR5380M1 Rugged Ethernet Connector
The MRJR series Rugged RJ45 connectors by Amphenol are designed for harsh environments, providing IP67 sealing and protection against water, dust, shock, vibration, and impact. Made with die cast zinc housings and flexible silicone rubber seals, these connectors support Ethernet data rates up to 100BaseT and operate over a temperature range from -55°C to +105°C. They are ideal for industrial, automotive, medical, military, and communication applications, offering high durability, multiple mounting options, and RoHS compliance for environmentally friendly use.
AMPHENOL COMMUNICATIONS SOLUTIONS MRJR5380M1 Rugged Ethernet Connector Specifications:
- External Shell: Die Cast Zinc, Nickel Plated
- Front Insert: Clear Polycarbonate, UL94V-0
- Rear Inserts: High Temperature Resistant Nylon, Glass Reinforced, UL94V-0
- Contacts: Phosphor Bronze, Gold over Nickel, Matte Tin over Nickel
- Operating Temperature Range: -55°C to +105°C
- Water & Dust Protection Level: IP67 per IEC 60529
- Durability: 2500 Mating Cycles
- Current Rating: 1.5A max per Contact
- Dielectric Withstanding Voltage: 1000 VAC rms between adjacent contacts, 1500 VAC rms to ground
- Vibration: EIA 364-28 Random Condition II, 10g, 10-500Hz, 6 Hours
- Shock: EIA 364-27, 50g, 11 ms, No Discontinuity
- Insertion & Withdrawal Force: Max 20N per EIA-364-13
- Temperature Life: 70°C, 500 Hours with load; 105°C, 1000 Hours without load
- RoHS compliant, UL Recognized, conforming to IEC 60603-7
Buy the Amphenol MRJR Series Rugged RJ45 Connectors – Reliable Ethernet for Industrial Applications
Secure your industrial network with the durable Amphenol MRJR Series Rugged RJ45 connectors, designed for tough environments requiring water, dust, shock, and vibration resistance. Featuring IP67 sealing, high-temperature operation, and multiple mounting options, these connectors ensure reliable Ethernet connectivity in demanding applications like automotive, medical, military, and industrial automation. RoHS compliant, with a long durability cycle of 2500 mating cycles, they are the trusted choice for industrial projects needing robust, high-performance network connections. Order online today for fast delivery!
Order your Amphenol MRJR5380M1 Series Rugged RJ45 Connector today and ensure your equipment is protected with reliable, high-performance connectivity for harsh environments.
