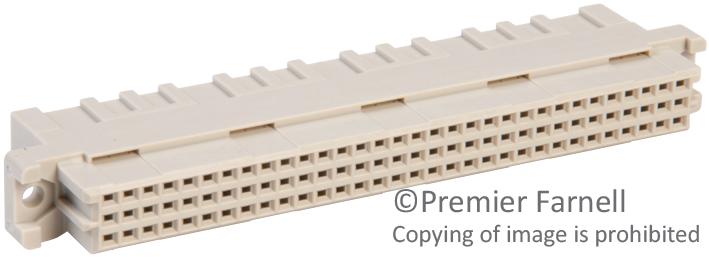

AMPHENOL COMMUNICATIONS SOLUTIONS 86094648114755V1LF DIN Connector
This high-quality DIN 41612 connector features lead-free construction with gold-over-nickel contact plating, rated for exposure to peak soldering temperatures of 260°C for 3.5 seconds. Designed for PCB mounting on 1.6 mm minimum thickness boards, it supports a maximum current of 2A and operates within a temperature range of -55°C to +125°C. The connector includes 3 rows of female insulators, with contact options including straight spill terminations available in both long and short versions. Its reliable mechanical and electrical specifications ensure durability and compliance with RoHS and EU standards, suitable for various industrial automation and electronic applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 86094648114755V1LF DIN Connector Specifications:
- Housing withstands exposure to 260°C peak temperature for 3.5 seconds in wave soldering
- Contact Material: Copper Alloy with gold-over-nickel plating (lead-free version uses Tin matte over nickel)
- Electrical current: Max 2A
- Voltage Rating: 1000V RMS
- Temperature Range: -55°C to +125°C
- Insulation Resistance: 12 MΩ
- Test Voltage: 1000V rms
- Insertion Force per contact: < 0.94N
- Extraction Force per contact: 0.18N
- Number of contacts: 64 (rows a-b and a-c)
- Mounting Style: Standard PCB with 1.6 mm minimum thickness
- Type: 3-row female insulator, straight spill termination (long or short)
- Standards: DIN 41612 class 3, RoHS compliant, UL listed
- Pitch per row: 2.54 mm
- Compatible with wire sizes: 8-10.6 AWG
- Dimensions and physical features: housing supports 3 rows, contact spacing of 2.54 mm, suitable for industrial automation
Buy the Buy INDUSTRIAL CONNECTOR DIN 41612 Part Number 86094648114755V1LF Online
Purchase the reliable DIN Connector today online to ensure quality and compliance with industry standards. Featuring lead-free design, gold-over-nickel contacts, and rated for exposure to 260°C peak temperature, this connector guarantees durability and safety. With a maximum current of 2A, it supports industrial automation and electronic applications, providing excellent electrical performance and mechanical stability. Easy to mount on PCB with 1.6 mm minimum thickness, and compliant with RoHS and EU directives, making it an ideal choice for professional engineers and technicians.
Order your INDUSTRIAL CONNECTOR DIN 41612 Part Number 86094648114755V1LF today and ensure reliable connections with durable, high-performance features suitable for industrial automation.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 86094648114755V1LF?
You can click on the BUY or RFQ button to purchase 86094648114755V1LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 86094648114755V1LF?
You can download the 86094648114755V1LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 86094648114755V1LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
