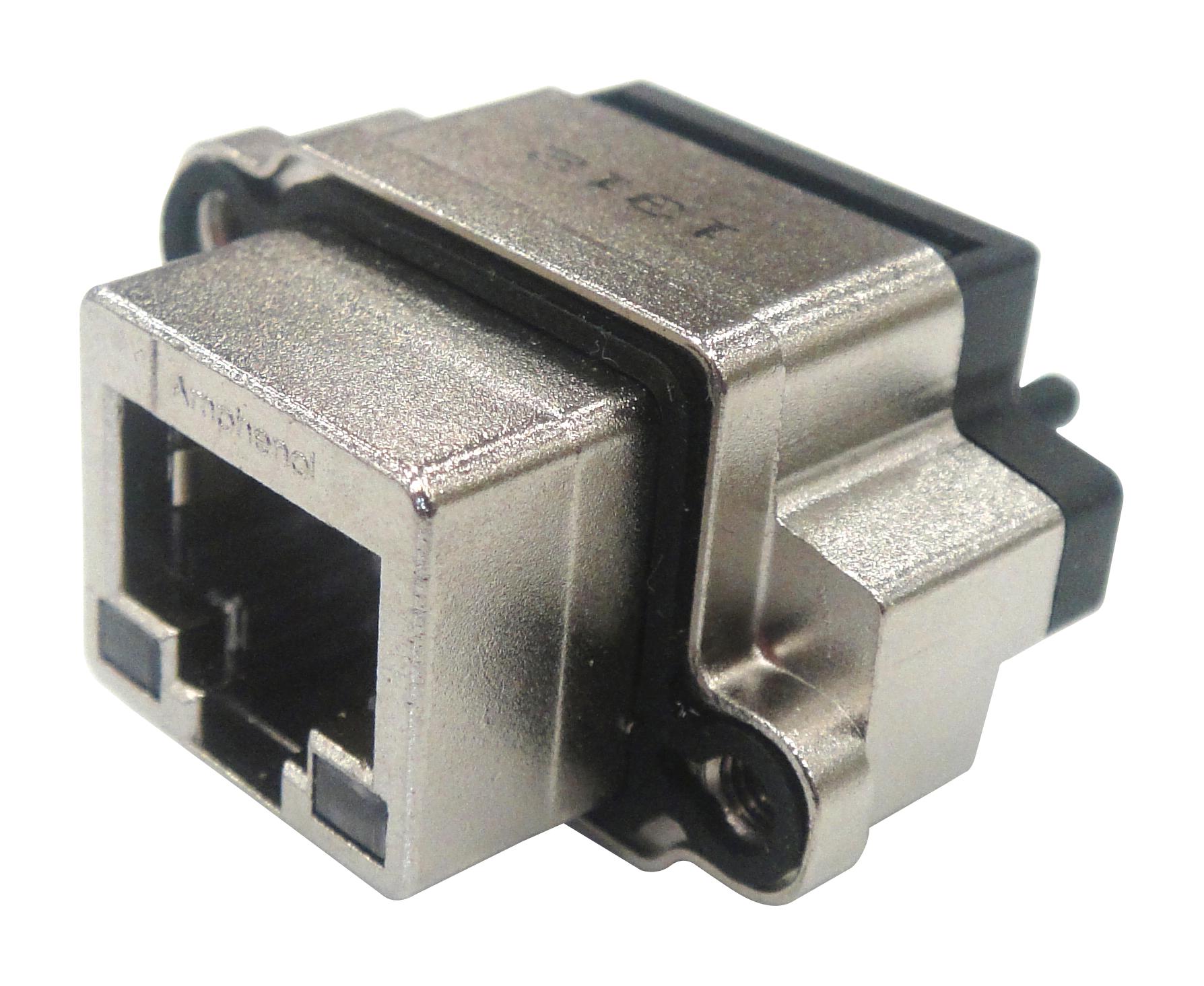

AMPHENOL COMMUNICATIONS SOLUTIONS MRJR54800F Rugged RJ45 Connector
The Rugged RJ45 connector by Amphenol Series II is designed for harsh environments, offering IP68 protection, durable thermoplastic housing, and high-performance electrical characteristics. Suitable for industrial, military, and networking applications, it features modular, right-angle, and vertical termination options with LED indicators, EMI filtering, and robust construction for reliable data transfer up to 100BaseT Ethernet. Crafted for extreme temperature ranges from -40°C to +105°C, it includes features like epoxy-free seals, high shock and vibration resistance, and compatibility with various mounting configurations, ensuring longevity and dependable connectivity in demanding conditions.
AMPHENOL COMMUNICATIONS SOLUTIONS MRJR54800F Rugged RJ45 Connector Specifications:
- Current rating: 1.5A per contact
- Contact resistance: 30 mΩ max
- Insulation Resistance: 500 MΩ min
- Dielectric Withstand Voltage: 1000/1500 V AC
- Operating temperature: -40°C to +105°C
- Material: Phosphor Bronze contacts, high-temp thermoplastic housing, die-cast Zine alloy shell
- Mating cycles: 2500
- Soldering: Hand or wave at 150°C for 180 sec and 265°C for 8 sec
- Solder tails compatible with PCB thickness of 1.57-3.18 mm
- RoHS compliant
- Vibration, shock, humidity, and salt spray resistant
- Termination styles include right angle and vertical mounting
- LED options with DC current up to 25mA and voltage up to 2.5V
- Locking features for secure connections
- Compatible with RJ45 Ethernet systems, supporting 10BaseT and 100BaseT
Buy the Amphenol Series II Rugged RJ45 Connector: MRJR54800F
Discover the reliable performance of the Rugged RJ45 connector by Amphenol Series II, engineered for harsh environments. Featuring IP68 protection, durable thermoplastic housing, and EMI filters, it ensures secure, high-speed Ethernet connections in industrial, military, and outdoor applications. Its robust design withstands extreme temperatures from -40°C to +105°C, with high shock and vibration resistance, and up to 2500 mating cycles for extended use. Choose this connector for dependable, high-quality data transfer in demanding conditions, order online today to experience durability and performance.
Order your Amphenol Series II Rugged RJ45 connector today and ensure reliable, high-performance connectivity in demanding industrial and military applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS MRJR54800F?
You can click on the BUY or RFQ button to purchase MRJR54800F from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MRJR54800F?
You can download the MRJR54800F datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of MRJR54800F?
AMPHENOL COMMUNICATIONS SOLUTIONS
