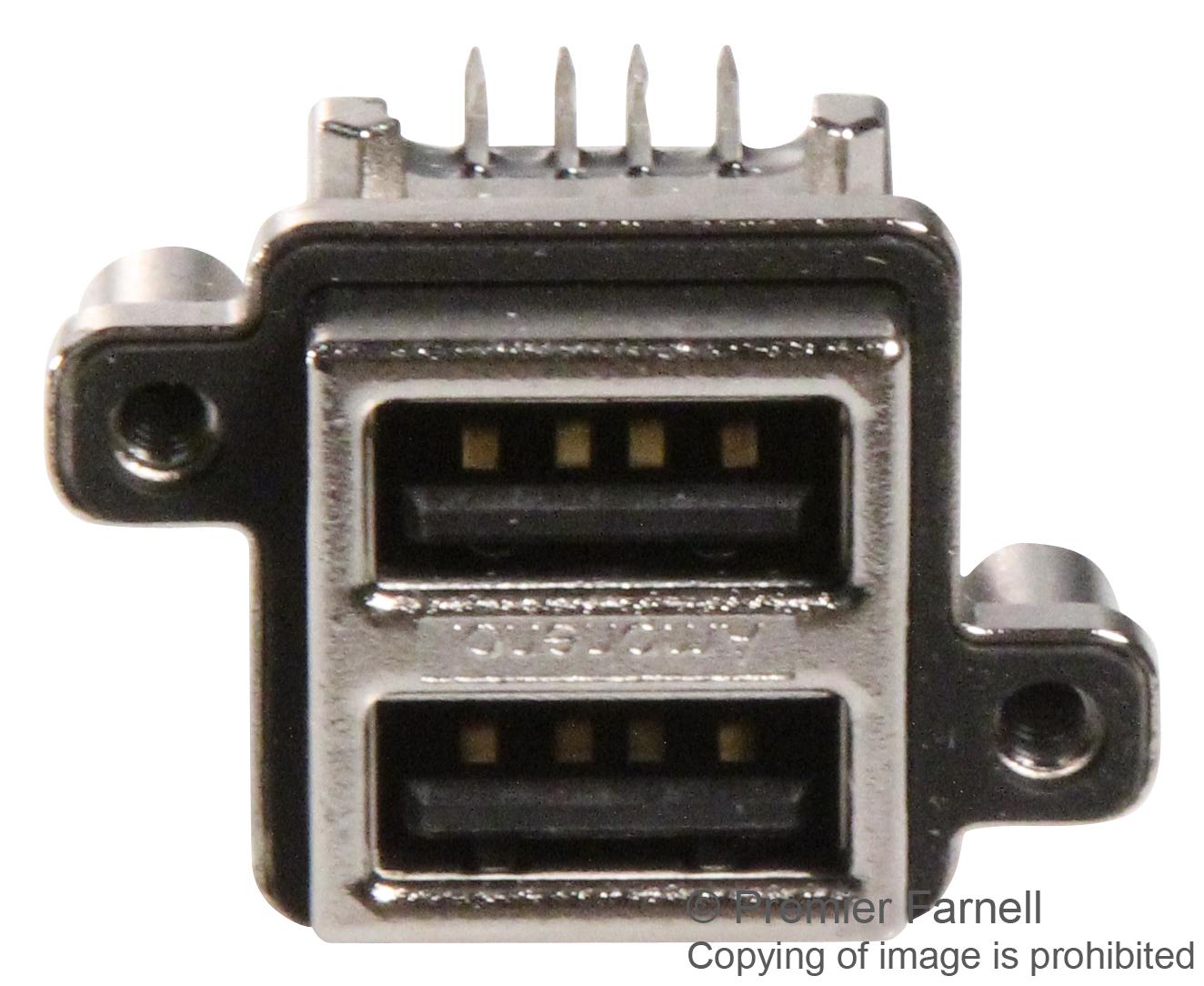

AMPHENOL COMMUNICATIONS SOLUTIONS MUSBC111M0 Rugged USB Receptacle
The rugged USB receptacle designed for harsh environments offers a robust, waterproof, and vibration-resistant connection compliant with USB 2.0 standards, achieving data transfer rates up to 480 Mb/s. It features multiple series options, including Series A, B, Mini-B, Mini-AB, and Micro-AB, with right-angle and vertical PCB mounting styles. Constructed with durable thermoplastic housings, nickel-plated die-cast shells, and phosphor bronze contacts with gold over nickel plating, these connectors are suitable for military, industrial, and commercial applications such as medical devices, test equipment, and military vehicles. They withstand shock, vibration, humidity, and salt spray testing, ensuring reliable operation in extreme conditions.
AMPHENOL COMMUNICATIONS SOLUTIONS MUSBC111M0 Rugged USB Receptacle Specifications:
- Receptacle Type: USB 2.0 A, B, Mini-B, Mini-AB, Micro-AB
- Termination Style: Right Angle, Vertical, with options for cable headers and terminal blocks
- Housing Color: Black (Types A, B, C, E), White (Type D), Grey (Type K)
- Material: Thermoplastic housing, die-cast zinc shell, phosphor bronze contacts with gold over nickel plating
- Current Rating: 1.5A per contact (Series A & B), up to 1.8A (Series Micro-AB), 1.0A (Series Mini-B & Mini-AB)
- Insulation Resistance: ≥1000 MΩ
- Contact Resistance: ≤30 mΩ
- Mechanical Durability: 1500 to 10,000 mating cycles depending on series
- Operating Temperature: -40°C to +105°C
- Environmental Resistance: IP67, shock, vibration, humidity, salt spray
- Assembly: Hand or wave soldering at 260°C for 8 seconds maximum
- Thread Options: M3x0.5 and #2-56 UNC, with rear shield options
- Solder Tails: Suitable for PCB thickness of 1.52mm (.062")
Buy the Amphenol MUSBC111M0 – Reliable Rugged USB for Industrial Applications
Purchase the Rugged USB Receptacle from Amphenol online today and equip your industrial, military, or harsh environment application with a highly durable, waterproof, and vibration-resistant USB connector. Designed to meet demanding standards, this connector offers reliable data transfer rates up to 480 Mb/s, IP67 sealing for protection against dust and water, and resistance to shock, vibration, humidity, and salt spray. Available in various series and mounting styles, it ensures seamless integration into your equipment for steady, secure connections in extreme conditions.
Buy Amphenol MUSBC111M0 now and experience unmatched reliability and performance in harsh environments with IP67 protection and multiple mounting options.
