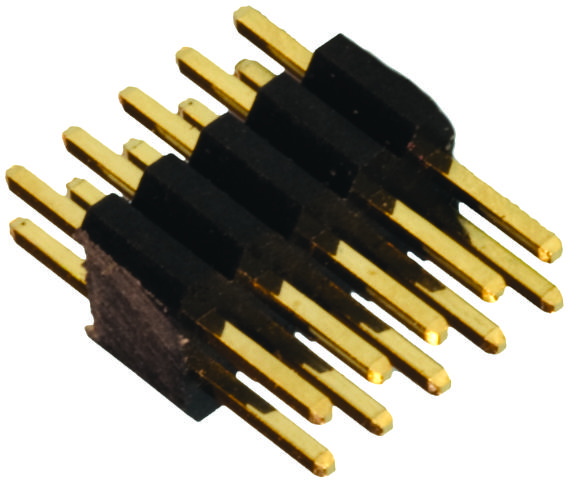

AMPHENOL COMMUNICATIONS SOLUTIONS 2002111100080T4LF Board-to-Board Connector
The Minitek127® standard board-to-board connector is a reliable, halogen-free modular system with a 1.27mm pitch, available in straight, right-angle, and surface mount options. It supports up to 100 positions with various plating choices, making it ideal for industrial controls, medical, data, communication, and measuring equipment applications. Constructed with high-temperature resin housing and copper alloy contacts finished with gold, tin, or GXT plating, it offers excellent electrical and mechanical performance, including high insulation resistance and durability for up to 100 cycles. Certified by UL and available in tape and reel packaging, this connector ensures secure, space-saving connections between PCBs or cables.
AMPHENOL COMMUNICATIONS SOLUTIONS 2002111100080T4LF Board-to-Board Connector Specifications:
- Housing: High-temperature halogen-free resin
- Contact Material: Copper Alloy
- Contact Finishes: Gold flash, 10u" Gold, 15u" GXT, 30u" GXT over nickel
- Solder Finish: Matte tin over nickel
- Electrical Resistance: 30 milliohms
- Insulation Resistance: 1000 Megohms minimum
- Current Rating: 1.0 amp per contact
- Voltage Rating: 125VAC
- Temperature Range: -55°C to +125°C
- Durability: 100 mating cycles
- Environmental: 95% humidity for 96 hours, Mixed Flowing Gas Class IIA
- Mechanical: Mating force maximum 2.2N/contact, un-mating force minimum 0.2N/contact
- Packaging: Tape and reel, tube
Buy the Buy FCI Board-to-Board Connector Part Number 2002111100080T4LF Online
Order the FCI Board-to-Board Connector online today for reliable, space-efficient PCB connections with up to 100 positions, durable gold and GXT plating options, and UL certification. This high-performance connector, designed with high-temperature resin and copper alloy contacts, ensures excellent electrical conductivity and mechanical durability. Perfect for industrial controls, medical devices, data, and communication systems, it features easy tape and reel packaging for quick deployment. Enhance your electronic assembly with this space-saving, environmentally robust solution.
Get FCI 2002111100080T4LF today—built for precision and long-lasting durability in industrial and medical electronic connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 2002111100080T4LF?
You can click on the BUY or RFQ button to purchase 2002111100080T4LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 2002111100080T4LF?
You can download the 2002111100080T4LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 2002111100080T4LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
