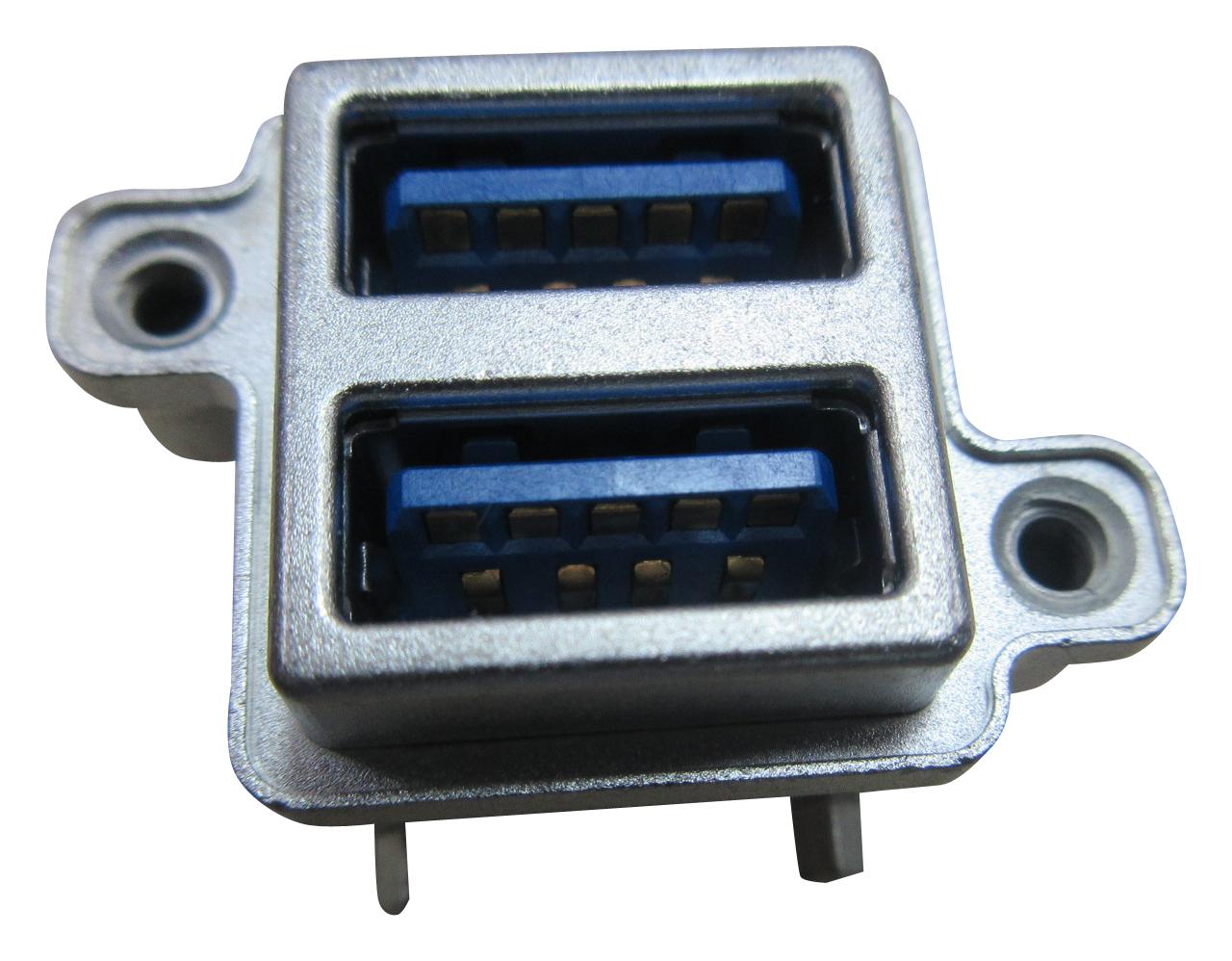

AMPHENOL COMMUNICATIONS SOLUTIONS MUSBR4593M0 Rugged USB Connector
Amphenol's MUSBR series USB connectors are Generation 2 ruggedized USB interfaces with die cast housings and IP67 sealing, designed for harsh environment applications. They provide reliable performance in extreme conditions, with features including water and dust resistance, mechanical protection, compact design for space-saving, and an operating temperature range from -55°C to +105°C. These non-polarized Type C connectors allow for easy mating in either orientation and are suitable for industrial, automotive, communications, networking, consumer electronics, and medical applications.
AMPHENOL COMMUNICATIONS SOLUTIONS MUSBR4593M0 Rugged USB Connector Specifications:
- External Shell: Die Cast Zinc, Nickel Plated
- Contacts: Phosphor Bronze with 30u’’ min Gold over 50u” min Nickel
- Housing: Engineering Thermoplastic, UL94V-0 Rated, Blue
- Durability: 1500 Mating Cycles
- Current Rating: 1.5A per contact
- Contact Resistance: 30mQ max
- Insulation Resistance: 1000MQ
- Dielectric Withstanding Voltage: 500VAC @ sea level
- Operating Temperature Range: -55°C to +105°C
- Water and Dust Resistance: IP67 compliant
- Mechanical Protection: Certified for Shock & Vibration
- Connection Type: Non-polarized Type C, mating in either orientation
- Environmental Resistance: Humidity, salt spray, thermal shock, suitable for severe conditions
Buy the Amphenol Series MUSBR USB 3.0 Connectors: MUSBR4593M0
Purchase the Amphenol MUSBR4593M0 rugged USB connector online today and benefit from a robust, IP67 sealed, industrial-grade interface. Designed to operate reliably between -55°C and +105°C, this connector offers superior water and dust resistance, making it ideal for harsh environments such as medical, industrial, automotive, and telecommunication applications. Its durable construction supports up to 1500 mating cycles and features a compact, space-saving design. Ensure optimal device performance and protection by ordering now from our secure online store for fast delivery.
Buy Amphenol MUSBR4593M0 rugged USB 3.0 connector now and ensure reliable performance in extreme environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS MUSBR4593M0?
You can click on the BUY or RFQ button to purchase MUSBR4593M0 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MUSBR4593M0?
You can download the MUSBR4593M0 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of MUSBR4593M0?
AMPHENOL COMMUNICATIONS SOLUTIONS
