AMPHENOL COMMUNICATIONS SOLUTIONS ND9BCA2B0B industrial Ethernet connector
The ix Industrial Connector series by Amphenol provides compact, high-performance Ethernet and industrial protocol connections. These connectors support 10GBASE-T performance, PoE capability, and offer excellent EMI shielding through 360° shielded mated pairs, making them ideal for noisy industrial environments. With a robust 5000 mating cycle rating, two-point metal latches, and field terminable IDC options, they enhance port density and durability. Suitable for industrial IoT, factory automation, robotics, and healthcare applications, they ensure secure, reliable connections across a wide temperature range from -55°C to +85°C.
AMPHENOL COMMUNICATIONS SOLUTIONS ND9BCA2B0B industrial Ethernet connector Specifications:
- Material: Stainless steel, nickel or tin plated shields; Thermoplastic, UL94V-0 insulators; Copper alloy contacts with gold over nickel
- Electrical: 1.5A current @ 40°C, 50V AC/DC voltage; Contact resistance 30mΩ; Shielding resistance 100mΩ; Insulation resistance 500MΩ; Dielectric voltage 500V DC
- Mechanical: Mating cycles 5000, Insertion/Withdrawal force max 25N, Pull-Out Force min 80N, Shock resistance 300m/s², Vibration 10-500Hz, 0.35mm
- Environmental: Operating temperature -55°C to +85°C, thermal shock cycles, humidity 93%, RoHS compliant, UL pending
- Connectors: Receptacles and plugs with various plating options, right angle or vertical mounting, IDC or solder termination, compatible with Ethernet/IP and protocols like Profinet, Modbus

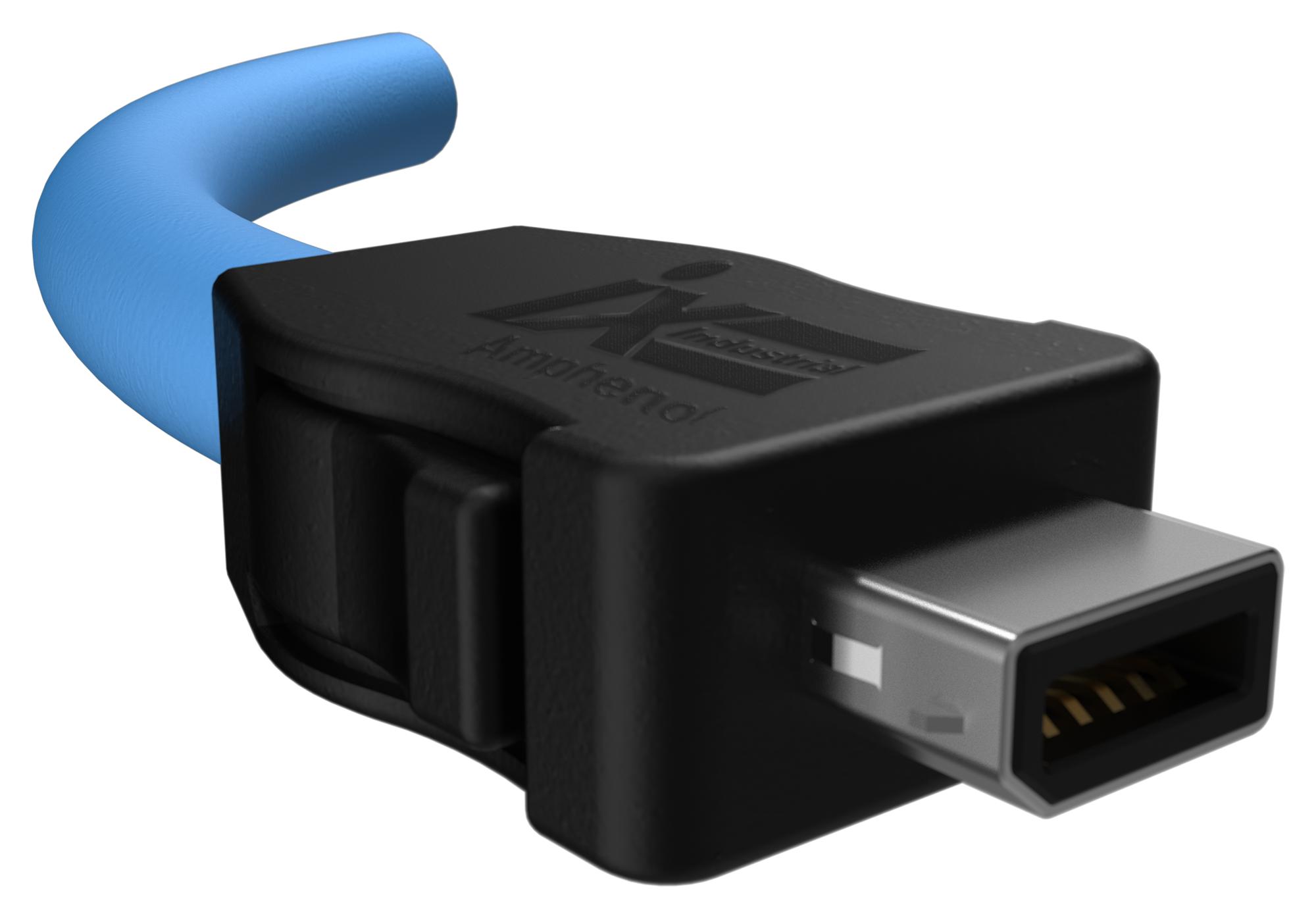

Buy the Buy Amphenol ix Industrial Connectors Part Number ND9BCA2B0B Online
Order the Amphenol ix Industrial connector Part Number ND9BCA2B0B online today and enhance your industrial connectivity solutions. These high-performance connectors support 10GBASE-T, PoE, and offer superior EMI shielding, ensuring reliable data transmission in electrically noisy environments. Designed for 5000 mating cycles, they provide durability and secure locking with robust metal latches. Suitable for industrial IoT, automation, healthcare, and robotics where high-speed, secure, and stable connections are essential. Easy to select with multiple configurations for various applications, making your setup efficient and future-proof.
Buy Amphenol ND9BCA2B0B industrial Ethernet connector now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS ND9BCA2B0B?
You can click on the BUY or RFQ button to purchase ND9BCA2B0B from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part ND9BCA2B0B?
You can download the ND9BCA2B0B datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of ND9BCA2B0B?
AMPHENOL COMMUNICATIONS SOLUTIONS
