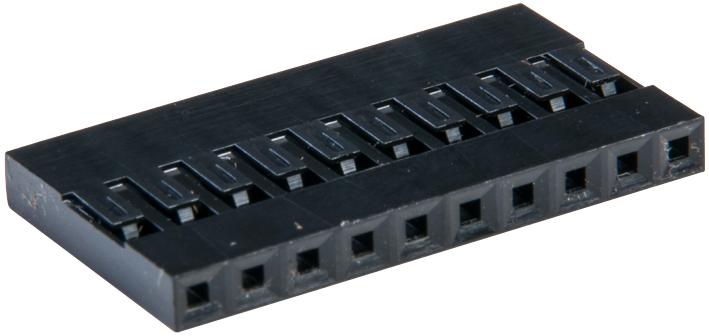

AMPHENOL COMMUNICATIONS SOLUTIONS 65039027LF PV Wire Connector
The PV Wire-to-Board Connector System by Amphenol ICC offers a versatile, high-performance modular solution suitable for demanding applications. It features dual-metal receptacle contacts, brass bodies, and beryllium copper springs ensuring durability up to 1000 cycles. The system includes polarized MINI-LATCH housings, shrouded headers, and options for gold or lead-free tin plating. Designed for electrical performances up to 3A per circuit and withstand voltage of 1000V, it caters to automotive, industrial, and medical markets with reliable gas-tight crimps and environmental compliance.
AMPHENOL COMMUNICATIONS SOLUTIONS 65039027LF PV Wire Connector Specifications:
- Contact Material: Brass body and beryllium copper spring
- Contact Plating: Gold or lead-free pure tin over nickel
- Housing Material: Modified polyphenylene oxide UL94V-0, Glass filled nylon UL94V-0
- Current Rating: 3.0A per circuit
- Withstanding Voltage: 1000V RMS
- Insulation Resistance: >10000MQ (wire connector), >5000MQ (header)
- Contact Resistance: <2mQ
- Temperature Range: -40°C to +105°C
- Mechanical Durability: Up to 1000 mating cycles
- Mating Force: 450g (high force spring), 100g (ultra-high force spring)
- Un-mating Force: 75g (high force), 175g (ultra-high force)
- Connector Pitch: 0.100 inches / 2.54 mm
- Certifications: UL and CSA approved
- Suitable for wire diameters up to 152mm
- RoHS compliant parts with 'LF' suffix
Buy the Buy Amphenol PV Wire-to-Board Part Number 65039027LF Online
Secure your electronic projects with the reliable PV Wire Connector from Amphenol ICC. Featuring durable dual-metal contacts, polarized housings, and high current capacity, this system is ideal for automotive, industrial, and medical applications. It ensures up to 1000 mating cycles, gas-tight crimps, and operates within a temperature range of -40°C to +105°C. Purchase online today for quick delivery and trusted performance in demanding environments, with RoHS compliance and customizable insertion forces for your specific needs.
Order your Amphenol Series65039027LF PV Wire-to-Board Connector today and ensure reliable, high-quality electrical connections in your demanding projects.
