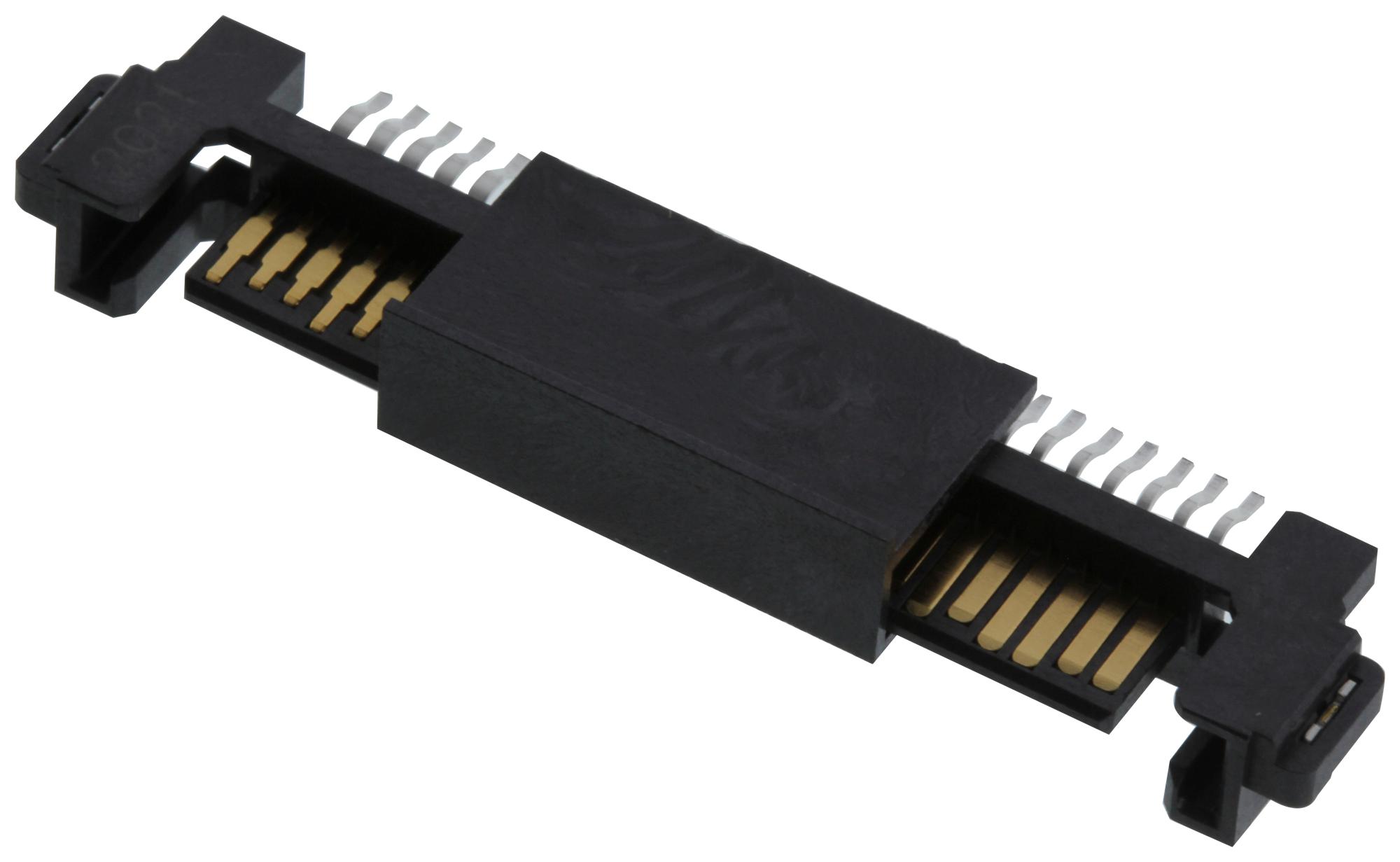

AMPHENOL COMMUNICATIONS SOLUTIONS PSAS4M2130081TR SAS PCIe Connector
SAS/PCIe 4.0 connectors offer high-speed data transfer with 16GT/s (PCIe lanes) or 24Gb/s (SAS lanes), suitable for next-generation servers. Designed with a 68-position receptacle and header, these connectors support high-speed SAS HDDs and PCIe-based devices, ensuring versatile application compatibility. Made from halogen-free thermoplastic, they feature self-aligning molded guide posts, staggered contacts for hot plugging, and robust design for 500 mating cycles. They provide reliable performance for mission-critical storage solutions, supporting SSDs and HDDs with mechanical strength and electrical durability.
AMPHENOL COMMUNICATIONS SOLUTIONS PSAS4M2130081TR SAS PCIe Connector Specifications:
- Connector material: Copper alloy with gold over nickel contact plating
- Housing: Halogen-free thermoplastic, UL94V-0, black
- Electrical rating: 1.5A per contact, contact resistance max 30mΩ
- Durability: 500 mating cycles, mating force 59N max, un-mating force 6N min
- Environmental: 96 hours at 40°C with 90-95% humidity, temperature life at 85°C for 500 hours
- Mechanical: Staggered contacts, molded guide posts, stamped clips for PCB attachment
- Compatibility: Backward compatible with 12G, 6G, 3G SAS and SATA, supports PCIe® 4.0 and SAS 3.0/4.0
- Connector capacity: Supports up to 4 port 16GT/s PCIe devices, SAS and SATA drives
Buy the Amphenol Series SAS/PCIe 4.0 Connectors: PSAS4M2130081TR
Discover the high-performance SAS PCIe connector designed for next-generation storage systems. With support for 16GT/s PCIe speeds and 24Gb/s SAS lanes, this connector ensures rapid data transfer for SSDs and HDDs. The durable design supports 500 mating cycles, featuring staggered contacts and self-aligning guide posts for easy mating and high reliability. Its halogen-free thermoplastic housing offers robustness and environmental resistance, suitable for mission-critical enterprise storage applications. Upgrade your system now with this versatile and high-speed connector to improve performance and expand storage capabilities.
Buy Amphenol SAS/PCIe 4.0 connectors now and experience unmatched high-speed performance and reliable data transfer for advanced storage systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS PSAS4M2130081TR?
You can click on the BUY or RFQ button to purchase PSAS4M2130081TR from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part PSAS4M2130081TR?
You can download the PSAS4M2130081TR datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of PSAS4M2130081TR?
AMPHENOL COMMUNICATIONS SOLUTIONS
