AMPHENOL COMMUNICATIONS SOLUTIONS RJCSE538A01 Ethernet Jack
The RJCSE series surface mount modular jacks are designed for Ethernet networking, supporting high EMI performance with shielding. They feature LED options for link activity and network speed verification, making them ideal for consumer electronics, networking, telecom, and industrial applications. Made with high-temperature thermoplastic and durable gold-plated contacts, these connectors withstand 750 mating cycles and operate from -55°C to +85°C, meeting RoHS standards. Compatible with IR reflow soldering, they offer reliable mechanical and electrical performance for versatile use in modern network and multimedia equipment.
AMPHENOL COMMUNICATIONS SOLUTIONS RJCSE538A01 Ethernet Jack Specifications:
- Contact resistance: 20 mΩ max
- Insulation resistance: 500 MΩ minimum at 500V DC for 2 minutes
- Current rating: 1.5 Amps
- Voltage rating: 125 Volts AC, 1000 VAC DWV
- LED forward voltage: 1.9 V max. @ 2mA, 2.6 V max. @ 20mA
- Operating temperature: -55°C to +85°C
- Durability: 750 mating cycles
- Material: High Temp thermoplastic, gold-plated phosphor bronze contacts
- Mating force: 5.0 lbs. maximum
- Pull retention force: 20 lbs. minimum
- RoHS compliant
- Suitable for IR reflow at 245°C for up to 10 seconds

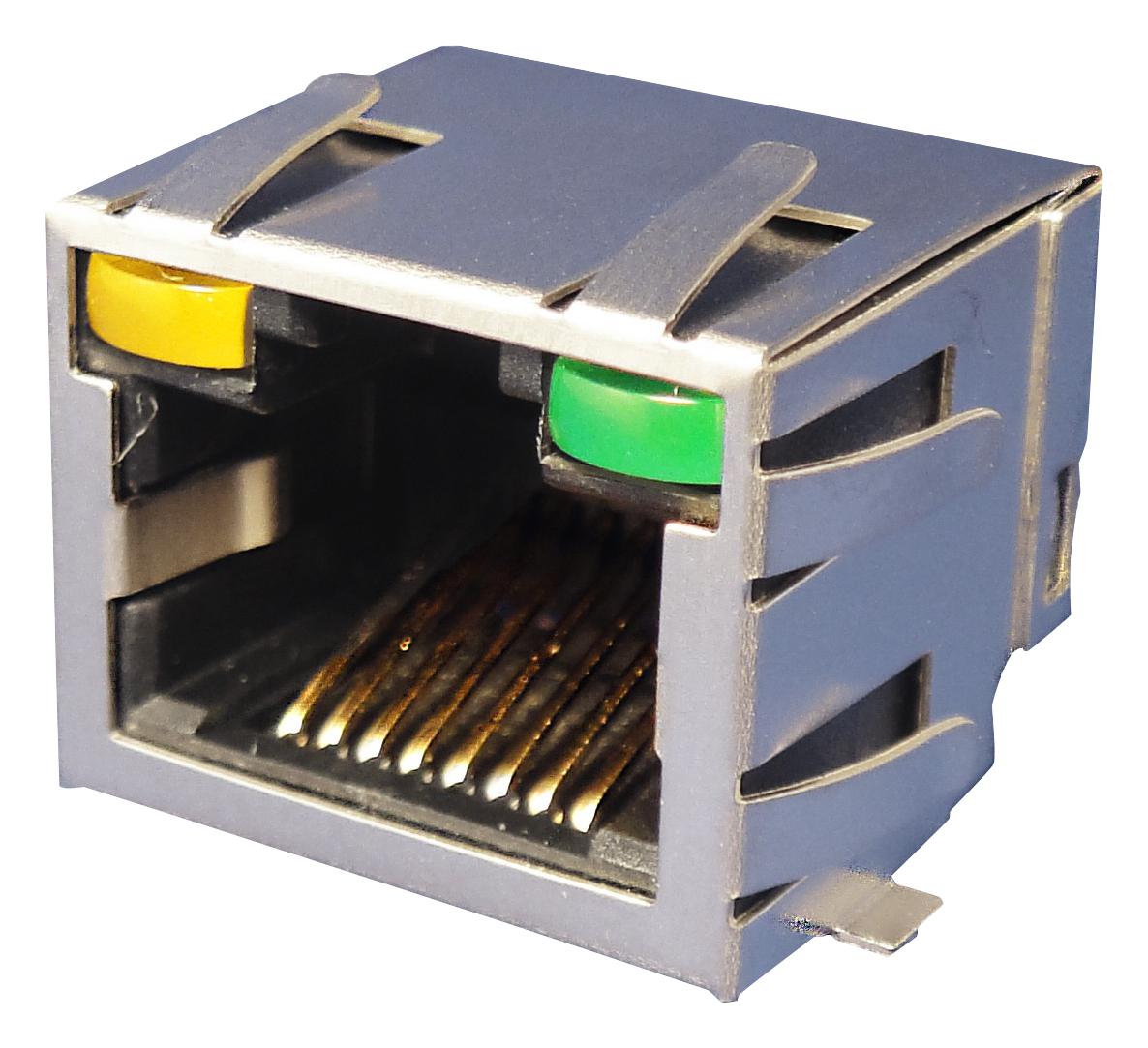

Buy the Amphenol Series RJCSE Ethernet Jacks: RJCSE538A01
Purchase the reliable Amphenol Ethernet Jack online today for advanced network connectivity. Featuring EMI shielding, LED indicators for link and speed, and a durable high-temp thermoplastic body, this connector is perfect for networking, telecom, and industrial applications. With a rated current of 1.5A and operating temperature range from -55°C to +85°C, it offers excellent resilience and performance. Easy IR reflow compatible, RoHS compliant, and capable of 750 mating cycles, ensuring long-term use for professional and industrial projects.
Order your Amphenol Series RJCSE Ethernet jack today and ensure reliable network connections with EMI shielding and LED indicators for modern networking needs.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS RJCSE538A01?
You can click on the BUY or RFQ button to purchase RJCSE538A01 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part RJCSE538A01?
You can download the RJCSE538A01 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of RJCSE538A01?
AMPHENOL COMMUNICATIONS SOLUTIONS
