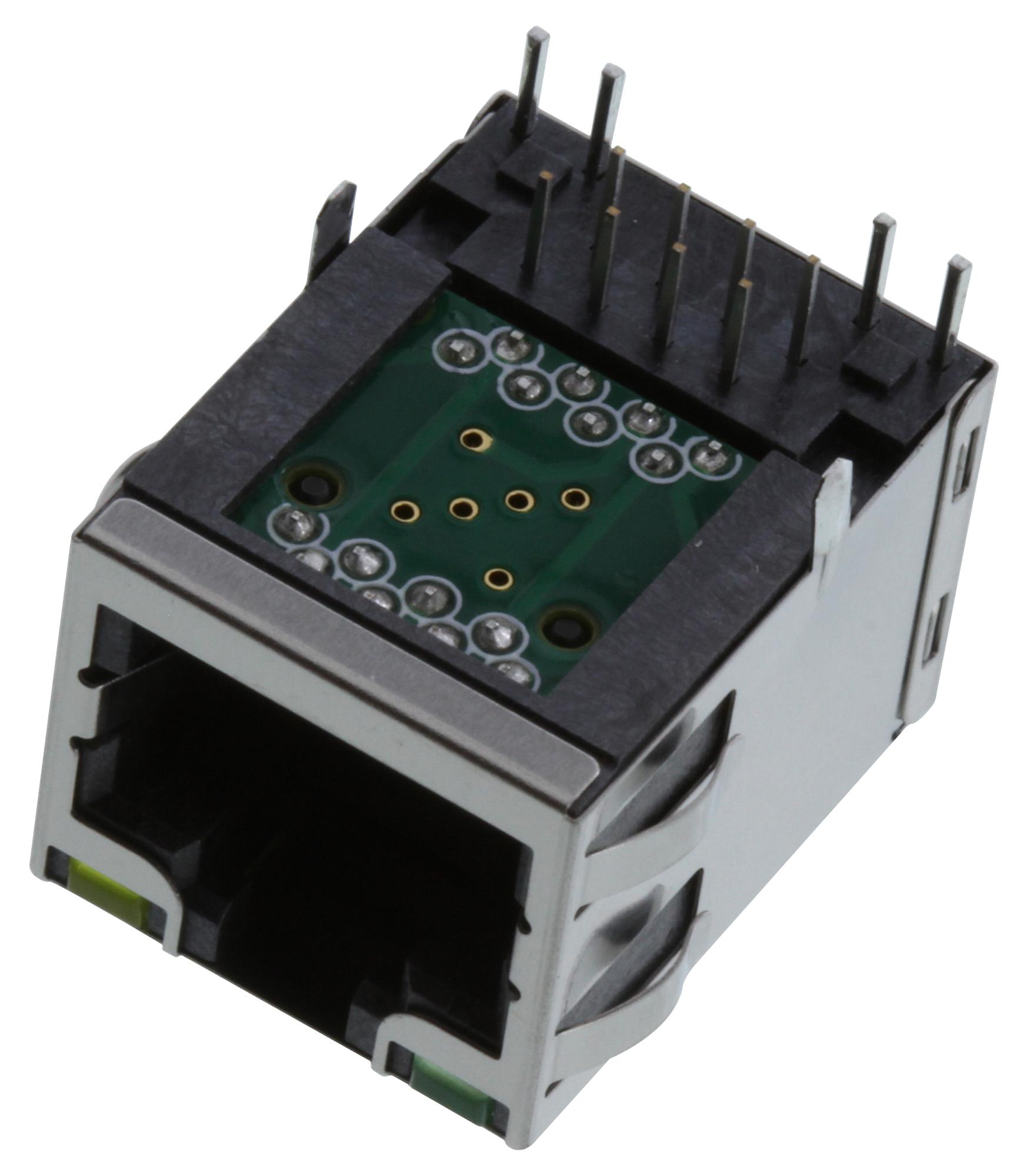

AMPHENOL COMMUNICATIONS SOLUTIONS RJE1A1885441 Ethernet Jack
The RJE1A series is a modular RJ45 jack suitable for gigabit Ethernet and high-performance networking applications. Featuring shielded design and green LEDs for link activity and network speed indication, these connectors support CAT5e and CAT6 standards. Designed for industrial, telecom, data, and consumer electronics, they provide reliable EMI protection, excellent durability with 750 mating cycles, and operate within -55°C to +85°C temperature range. Made from high-temperature thermoplastic and corrosion-resistant materials, they ensure robust performance in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS RJE1A1885441 Ethernet Jack Specifications:
- Contact Resistance: 20 mΩ maximum
- Insulation Resistance: 500 MΩ minimum at 500V DC for 2 minutes
- Current Rating: 1.25 Amps per contact
- Voltage Rating: 125 Volts AC
- Contact to Contact Resistance: 20 mA typical
- LED Forward Voltage: 2.4 Volts max. @ 20mA
- LED Reverse Voltage: 5 Volts maximum
- Operating Temperature: -55°C to +85°C
- Materials: High-temperature thermoplastic insulator, stainless steel shield, gold-plated contacts, LED components
- Durability: 750 mating cycles
- Shielding: Top and side EMI shields for improved EMI performance
- Mechanical Insertion Force: Max 5.0 lbs
- Mating Force: Min 20.0 lbs
- Compliance: RoHS, UL 94V-0 insulator, IEC 60529 IP20 rated
- Supports PoE standards 1-4, ensuring compatibility with power over Ethernet applications
Buy the Amphenol RJE1A – Reliable Ethernet Jack for Industrial Applications
Secure your network connectivity with the high-performance Amphenol Ethernet Jack. Designed for industrial, telecom, and consumer use, it features shielding, LEDs for link activity, and supports gigabit Ethernet speeds. With a robust construction, long-lasting durability of over 750 mating cycles, and operation across -55°C to +85°C, this connector ensures reliable performance in demanding environments. Perfect for enhancing your networking infrastructure with a trusted, industry-standard RJ45 module. Buy online now for fast delivery and quality assurance.
Get Amphenol RJE1A today—built for high reliability, EMI shielding, and fast network connection in industrial and enterprise environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS RJE1A1885441?
You can click on the BUY or RFQ button to purchase RJE1A1885441 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part RJE1A1885441?
You can download the RJE1A1885441 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of RJE1A1885441?
AMPHENOL COMMUNICATIONS SOLUTIONS
