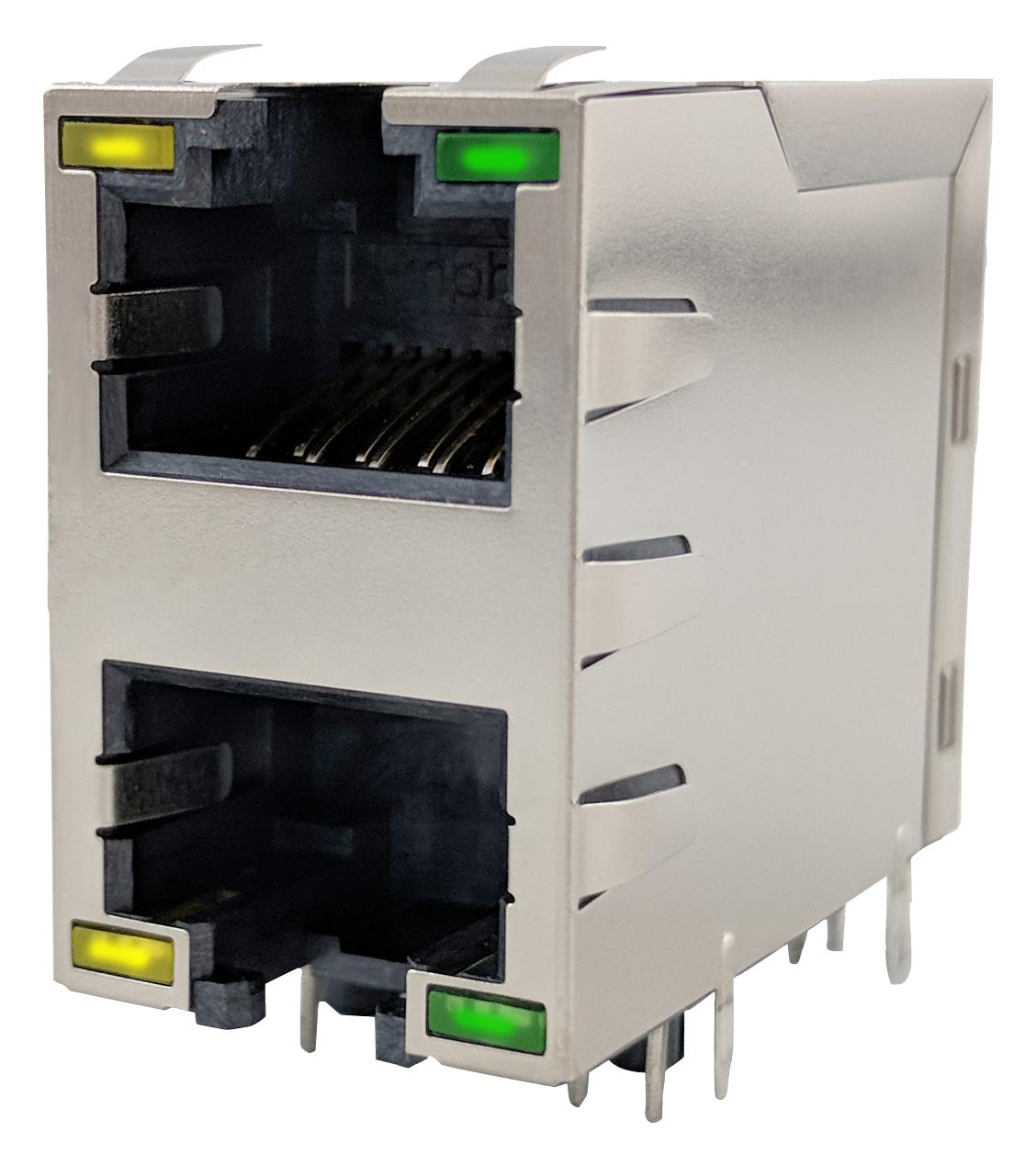

AMPHENOL COMMUNICATIONS SOLUTIONS RJE1R288225413 Modular Jack
The RJE1R series modular jack connectors feature two 8P8C ports with options for CATS, CAT5e, or CAT6 performance. These connectors support 750 mating cycles and operate in a wide temperature range from -55°C to +85°C. They are designed with high-quality materials including thermoplastic insulators, gold-plated phosphor bronze contacts, and shield options for EMI protection. Suitable for industrial and networking applications, they support up to 10G Ethernet, with integrated LED options for visual status indication. The connectors are RoHS, REACH, and UL certified, ensuring compliance with industry standards.
AMPHENOL COMMUNICATIONS SOLUTIONS RJE1R288225413 Modular Jack Specifications:
- Material: High-temperature thermoplastic insulator, UL94V-0, black
- Contacts: Phosphor bronze, gold or matte tin plated
- Shield: Copper alloy or stainless steel, nickel plated with tin dipped tail
- Electrical Performance: Contact Resistance 20 mΩ max, Insulation Resistance 500 MΩ min at 500V DC
- Current Rating: 1.5 Amps
- Voltage Rating: 125VAC
- Dielectric Withstanding Voltage: 1000V AC, 1 minute
- LED: Forward Voltage max 2.6V, Forward Current 20mA, Light Intensity 0.4-1.5 mcd
- Environmental: Operating temperature -55°C to +85°C, RoHS, REACH, UL certified
- Durability: 750 mating cycles
- Packaging: Tray and tape and reel available
Buy the Amphenol Series RJE1R Modular Jack: RJE1R288225413
Experience the high reliability of the Amphenol RJE1R modular jack, designed for industrial, networking, and communications markets. Featuring two ports supporting CAT5e, CAT6, or CATS performance, these modular connectors are built for durability with a wide temperature range from -55°C to +85°C. Equipped with optional LEDs and shielding options, they support up to 10G Ethernet for fast data transmission. Their robust construction ensures up to 750 mating cycles, making them suitable for demanding environments and critical applications requiring stable, high-speed network connections. Purchase online today to upgrade your connectivity solutions.
Buy Amphenol RJE1R modular jack now and ensure high-performance connectivity with durable, shielded ports supporting up to 10G Ethernet.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS RJE1R288225413?
You can click on the BUY or RFQ button to purchase RJE1R288225413 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part RJE1R288225413?
You can download the RJE1R288225413 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of RJE1R288225413?
AMPHENOL COMMUNICATIONS SOLUTIONS
