AMPHENOL COMMUNICATIONS SOLUTIONS 10037909101LF Guidance Modules

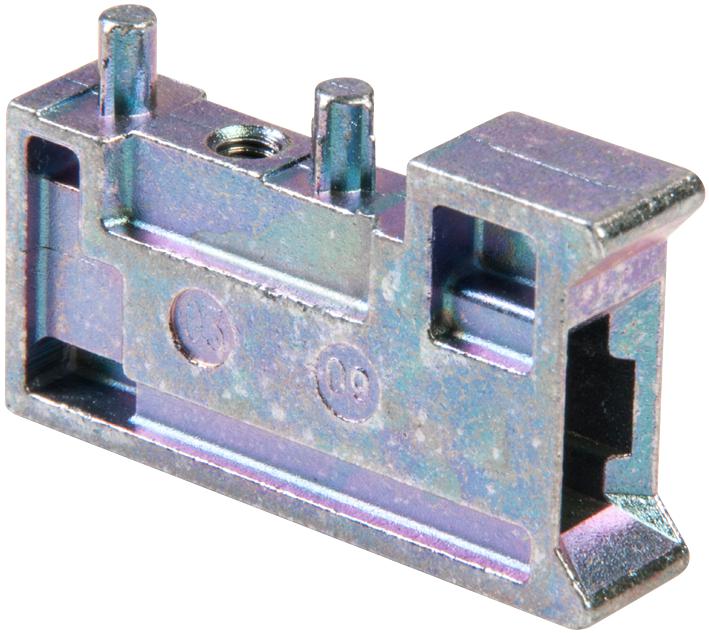

Mechanical guidance modules ensure precise alignment of backplane and midplane connectors in harsh industrial environments, featuring rugged zinc alloy construction, color zinc yellow chromate finish, and ESD contact nickel. They accommodate various misalignment corrections—pin-style modules correct up to ±3.5mm, while blade-style modules correct up to ±2.9mm—supporting flexible applications with full guidance clearance. Suitable for high-reliability industrial and manufacturing projects, these modules support RoHS compliance, are available in trays or tubes for easy integration, and enable optimal board real estate use for enhanced system robustness.
AMPHENOL COMMUNICATIONS SOLUTIONS 10037909101LF Guidance Modules Specifications:
- Base Metal: Zinc alloy
- Finish: Zinc yellow chromate (body), Nickel (ESD contact)
- Misalignment correction: Pin-style: ±3.5mm; Blade-style: ±2.9mm
- Full guidance clearance: Pin-style: 0.35mm; Blade-style: 0.25-0.30mm
- Application specification: GS-20-045
- Lead-free and RoHS compliant
- Packaging: Trays for guide pins, tubes for guide modules
- Material: Metal components with external/internal threads
- Suitable for backplane, midplane applications
- Designed for flexible right-angle and coplanar configurations
