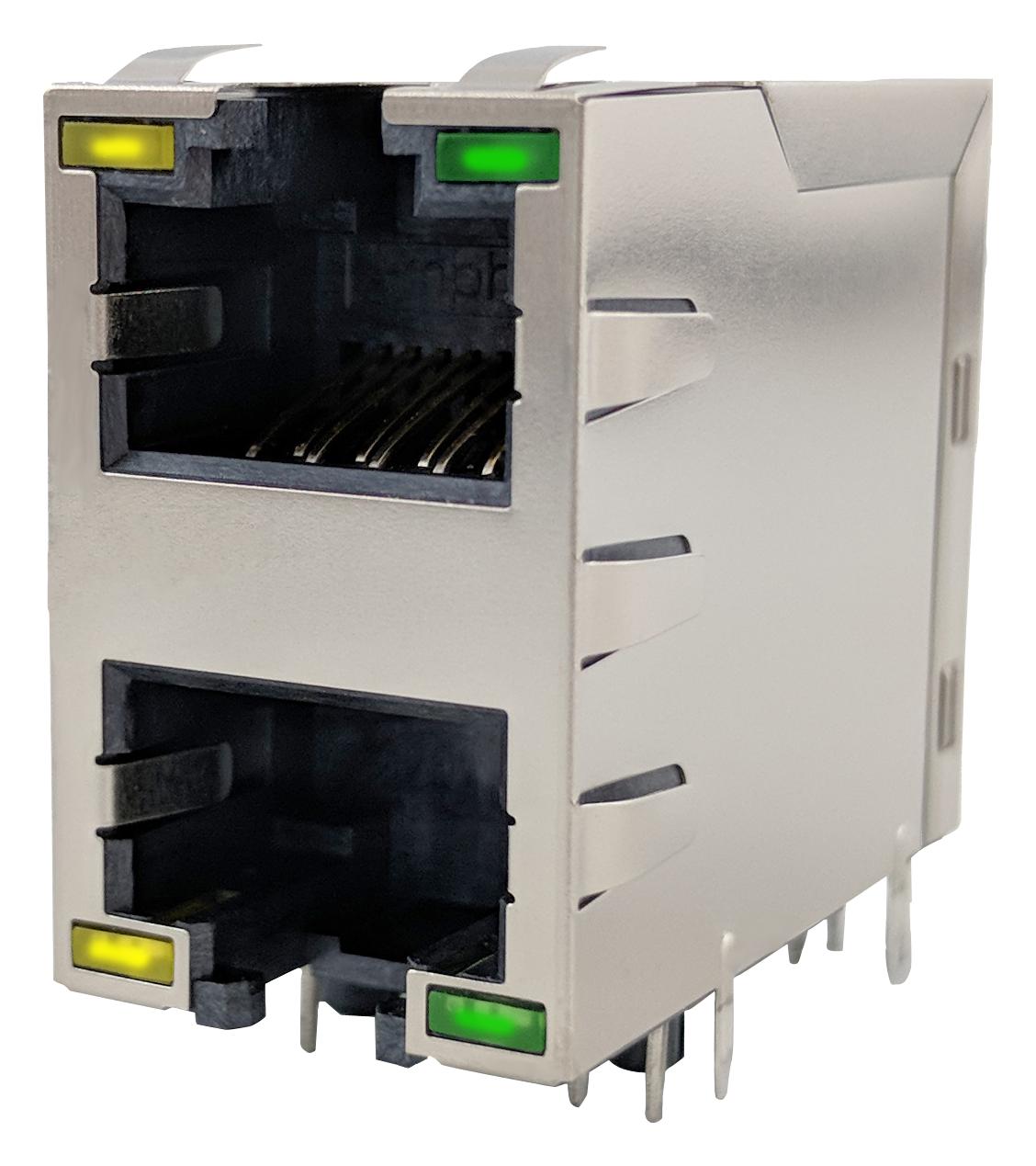

AMPHENOL COMMUNICATIONS SOLUTIONS RJE1R288335413 Modular Jack
The RJE1R series modular jack is a versatile, high-performance connector designed for industrial and communication applications. It features a 2x1 stacked design with ports supporting CAT5e, CAT6, or CATS performance levels, ensuring compatibility across networks and industrial setups. With durable construction rated for 750 mating cycles and operating temperatures from -55°C to +85°C, it offers excellent resistance to harsh environments. It accommodates industry standard plugs, includes options for shielded variants, and supports multiple LED color indicators for status monitoring, making it ideal for networking, industrial, and medical markets.
AMPHENOL COMMUNICATIONS SOLUTIONS RJE1R288335413 Modular Jack Specifications:
- Material: Insulator: High temperature engineering thermoplastic; Contacts: Phosphor bronze with gold and nickel plating; Shield: Copper alloy or stainless steel with tin dip; LED: Tin plated
- Electrical Performance: Contact Resistance: 20 mΩ max; Insulation Resistance: 500 MΩ min at 500V DC; Current Rating: 1.5 Amps; Voltage Rating: 125VAC; Dielectric Withstanding Voltage: 1000V AC; LED Forward Voltage: 1.9V max. @ 2mA; LED Forward Current: 20mA; Reverse Voltage: 5V min.
- Mechanical Performance: Mating Cycles: 750; Insertion Force: Max 5 lbs; Pull Retention Force: Min 20 lbs.
- Environmental: Operating Temperature: -55°C to +85°C; Soldering Temperature: Max 260°C for 5 seconds; Certifications: RoHS, REACH, UL.
Buy the Amphenol RJE1R – Reliable Modular Jack for Industrial Applications
Experience top-tier performance with the Amphenol RJE1R modular jack. Designed for industrial, communication, and medical applications, it offers durable construction, multiple port options supporting CAT5e, CAT6, or CATS standards, and robust environmental resistance. With a rated 750 mating cycles and operating temperature from -55°C to +85°C, it ensures long-lasting performance in harsh conditions. Ideal for networking, industrial automation, and high-speed data transfer, this connector provides flexible options with shielded variants and LED indicators to suit diverse application needs.
Buy Amphenol RJE1R modular jack now and ensure reliable connectivity in harsh industrial environments with versatile port options and LED indicators.
