AMPHENOL COMMUNICATIONS SOLUTIONS T816116A1R101CEU Latch Header Connector
The phenol latch header is a 2.54mm pitch connector product featuring various housing colors and configurations, including straight, right-angled, and long latch options. Constructed with a UL 94V-0 insulator material (PBT+25% G.F) and brass contacts plated with gold or tin over 50u" Ni, it offers reliable electrical performance with a contact resistance of max 20 mΩ at 1A. It supports a voltage rating of 250V AC/DC, with insulation resistance of 1000 MΩ min at 500V/DC, and a maximum current of 3A. Suitable for PCB mounting, it is ROHS compliant, RoHS, and designed for environments with a temperature range of -40°C to +105°C, ensuring durability in industrial applications.
AMPHENOL COMMUNICATIONS SOLUTIONS T816116A1R101CEU Latch Header Connector Specifications:
- Material: PBT+25% G.F insulator, Brass contacts
- Insulation Resistance: 1000 MΩ min at 500V/DC
- Dielectric Withstanding Voltage: 500 VAC RMS 60Hz for one minute
- Contact Resistance: Max 20 mΩ at 1A
- Current Rating: 3.0A
- Voltage Rating: 250V AC/DC
- Operating Temperature: -40°C to +105°C
- Dimensions: PINS vary from 6 to 64 positions, pin pitch 2.54mm, detailed size per configuration
- Housing Color: Grey or black
- Plating Options: Gold flash over 50u" Ni, full tin over 50u" Ni
- Termination: Straight, right-angled, long latch options
- Environmental Compliance: ROHS compliant

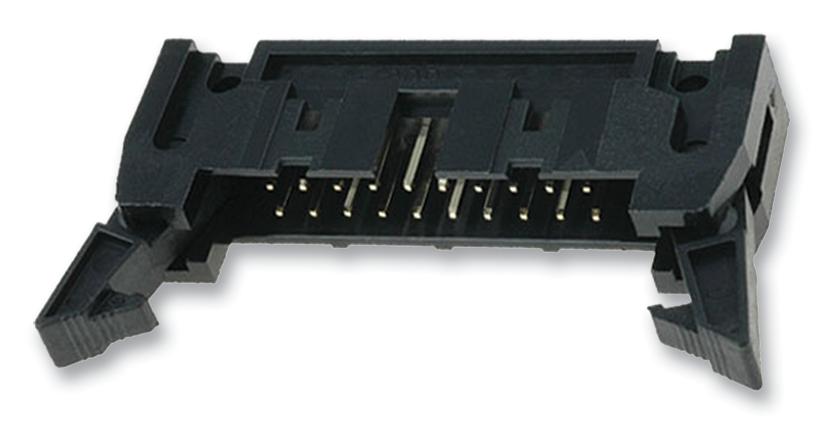

Buy the Berg Series 7816 Latch Header: T816116A1R101CEU
Enhance your electronic assemblies with the Berg Series latch header connector. Featuring a 2.54mm pitch, gold or tin plating, and multiple configurations such as straight, right-angled, and long latch, it provides reliable electrical contact up to 250V and 3A. Made with durable UL 94V-0 insulative material and brass contacts, it withstands temperature ranges from -40°C to +105°C. Perfect for industrial PCBs, it ensures secure connections with ROHS compliance, making it an essential component for robust, high-quality electronic projects.
Buy Berg Series 7816 latch headers now and experience unmatched reliability and performance in your PCB connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T816116A1R101CEU?
You can click on the BUY or RFQ button to purchase T816116A1R101CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T816116A1R101CEU?
You can download the T816116A1R101CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T816116A1R101CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
