AMPHENOL COMMUNICATIONS SOLUTIONS RJE231660413T Ethernet Connector
The RJE23 Series is a high-performance ethernet connector featuring a top entry, surface-mount design with shielded and unshielded options. These connectors support Ethernet protocols with increased EMI performance thanks to optional shielding. Designed for applications in networking, telecom, servers, CCTV, industrial IoT, and consumer electronics, they are durable up to 750 mating cycles, operate from -40°C to +85°C, and support IEEE PoE standards. Made from high-temperature thermoplastic with gold-plated contacts for reliable electrical connections.
AMPHENOL COMMUNICATIONS SOLUTIONS RJE231660413T Ethernet Connector Specifications:
- Current Rating: 1.5 Amps per contact
- Voltage Rating: 125 Volts AC, 1000 VAC, 60 HZ for 1 min
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 500 MΩ min at 500V DC for 2 minutes
- Mating Connector Insertion Force: 5.0 lbs max
- Mating Connector Pull Retention: 20.0 lbs min
- Durability: 750 mating cycles
- Operating Temperature: -40°C to +85°C
- Material: High-temperature thermoplastic, stainless steel shield, gold-plated contacts
- Soldering: Wave soldering at 260°C for 5 seconds max, IR reflow compatible
- ROHS compliant, designed for Ethernet, PoE, industrial, telecom, server, consumer electronics
- Shield option available for better EMI performance with side EMI tabs
- Connector type: Surface Mount, Shielded/Unshielded, 8P8C, 4P4C, 6P6C

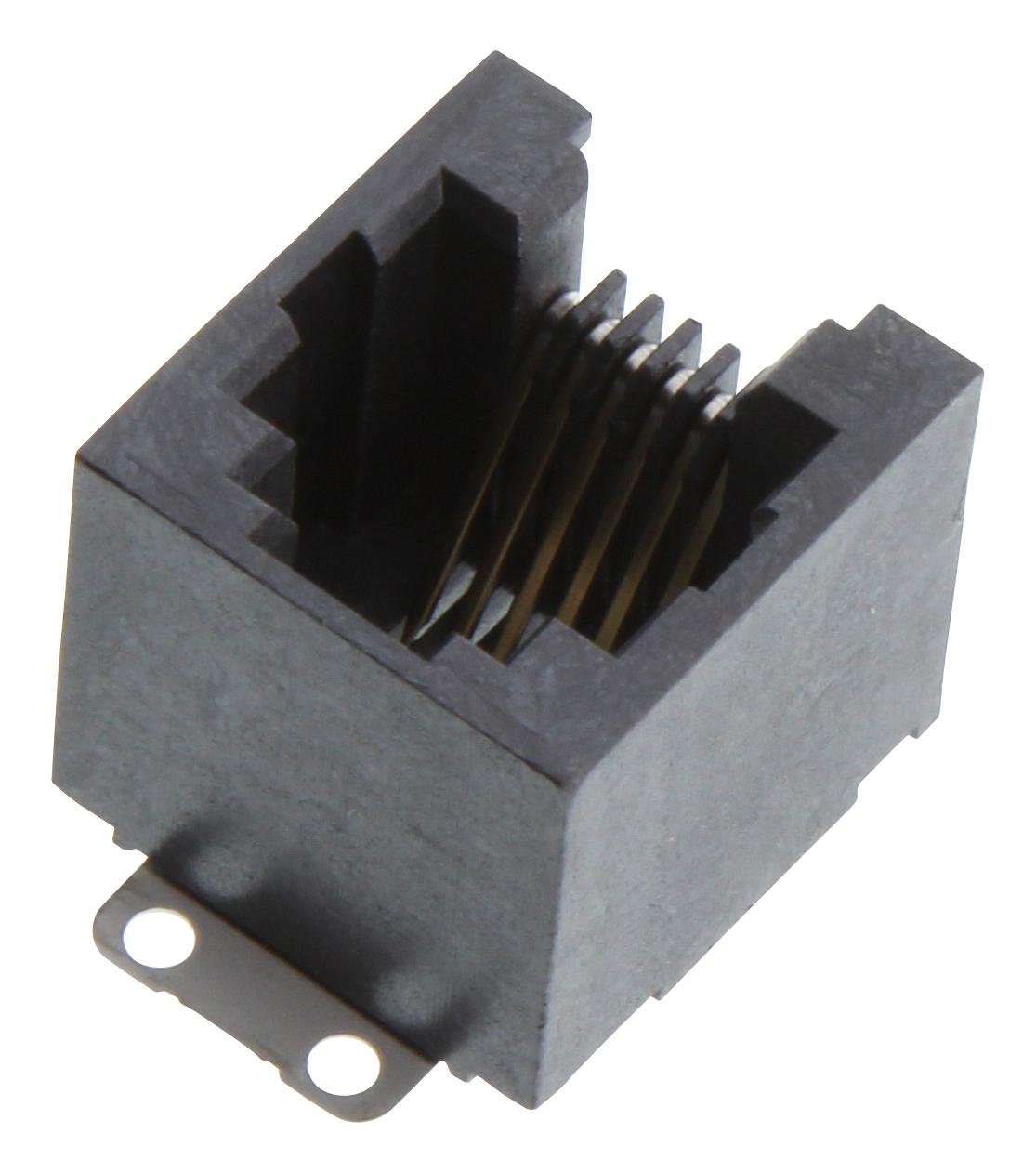

Buy the Buy Amphenol RJE23 Series 8P8C Part Number RJE231660413T Online
Discover the high-quality Amphenol Ethernet Connector from the RJE23 Series, designed for industrial, networking, and telecom applications. With robust shielding options, excellent EMI performance, and a durable construction supporting up to 750 mating cycles, this surface mount connector operates efficiently within a temperature range of -40°C to +85°C. Its gold-plated contacts and compliance with RoHS standards guarantee reliable electrical connections. Purchase online now for fast delivery and ensure your networking projects meet high standards of performance and reliability.
Order your Amphenol Series RJE23 8P8C connector today and ensure reliable high-speed data connections with excellent EMI shielding.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS RJE231660413T?
You can click on the BUY or RFQ button to purchase RJE231660413T from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part RJE231660413T?
You can download the RJE231660413T datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of RJE231660413T?
AMPHENOL COMMUNICATIONS SOLUTIONS
