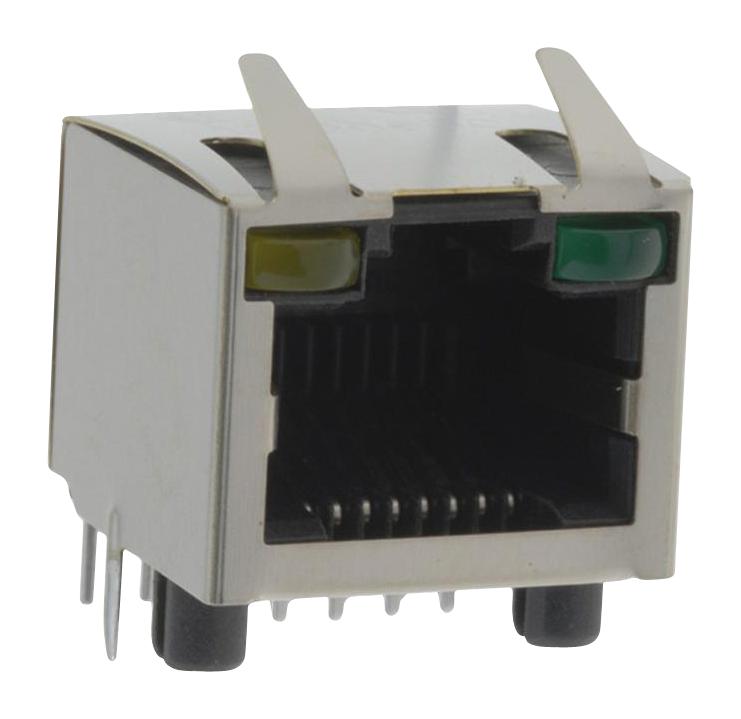

AMPHENOL COMMUNICATIONS SOLUTIONS RJHSE5385 Ethernet Jack
The high-speed shielded RJ45 modular jack features 8 gold-plated contacts with optional LED indicators, molded in high-temperature thermoplastic with UL 94V-0 flammability rating. Designed for Ethernet connections, it includes a robust stainless steel shield and precise PCB layout guidance. Compatible with wave soldering at 260°C, this RJ45 module ensures reliable performance in networking applications. Its compact design supports panel mounting with a recommended cutout, making it an ideal choice for high-speed data transmission, industrial Ethernet, and networking system integration requiring shielded and RoHS-compliant components.
AMPHENOL COMMUNICATIONS SOLUTIONS RJHSE5385 Ethernet Jack Specifications:
- Housing Material: High temperature thermoplastic, UL 94V-0 flammability rating, color black
- Contacts: Phosphor bronze with 50 μm gold plating over nickel underplate, matte tin on contact tails
- Number of Contacts: 8, with optional LED indicators
- Dimensions: Panel cutout approximately 16.26 mm x 13.46 mm, recommended PCB layout with specific hole spacing
- Mounting: Panel mount with optional LED indicator holes, PCB hole layout specified
- Soldering: Recommended wave soldering temperature at 260°C for 5 seconds maximum
- Shield: Stainless steel with tin finish on solder tail, provides EMI shielding
- Compliance: RoHS compliant, UL 94V-0 flammability rating
- Environmental: Designed for industrial networking, supporting high-speed Ethernet data transfer
- Notes: Optional LED configurations available, refer to LED options drawing for ordering codes
Buy the Amphenol Series RJ45 Ethernet: RJHSE538X
Secure your networking setup today by ordering the Amphenol Series RJHSE538X Ethernet jack online. This shielded, high-performance RJ45 module features durable gold-plated contacts, a robust thermoplastic housing, and optional LED indicators, making it perfect for industrial Ethernet applications. Designed for easy PCB mounting and shielded against EMI, it guarantees reliable data transfer in demanding environments. Available with detailed PCB layout guidance, RoHS compliance, and safe wave soldering parameters, this module is ideal for professionals seeking dependable connectivity solutions.
Order your Amphenol SeriesRJHSE538X shielded RJ45 Ethernet jack today and ensure high-speed, reliable network connections for your industrial projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS RJHSE5385?
You can click on the BUY or RFQ button to purchase RJHSE5385 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part RJHSE5385?
You can download the RJHSE5385 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of RJHSE5385?
AMPHENOL COMMUNICATIONS SOLUTIONS
