Amphenol-Communications-Solutions L17D45PKM25L77DB25SST D-Sub Connector

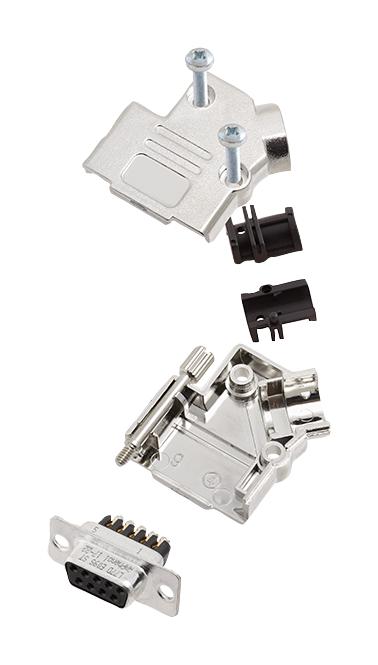

This metalized plastic hood and screw type connector set combines durability and high performance for industrial applications. Made from UL 94 V-0 plastic with nickel over copper plating, the hood features a top entry cable management system and supports cable OD up to 11.5mm. The steel shell is tin-plated, with glass-filled thermoplastic insulators. Designed for robust electrical connections, it withstands voltage over 1000V RMS, with a current rating of 7.5A. Suitable for sizes 9, 15, and 25, it offers EMI shielding, re-openable features, and compatibility with AWG 18 wire size, operating within -55°C to +110°C temperature range.
Amphenol-Communications-Solutions L17D45PKM25L77DB25SST D-Sub Connector Specifications:
- Material: UL 94 V-0 Plastic Hood, Steel Shell Tin Plated
- Plating: Nickel over Copper, Gold flash over Nickel on contact pins
- Cable Entry: Top entry, Supports cable O.D up to 11.5mm
- Operating Temperature: -55°C to +110°C (hood), -55°C to +85°C (connector)
- Voltage Rating: >1000V RMS to 50 Hz for 1 minute
- Current Rating: 7.5A
- Insulator Resistance: >5000MQ min.
- Contact Pins: Machined Brass, Gold plated over Ni
- Features: EMI shielding, re-openable, available in sizes 9, 15, 25
- Grommet Sizes: D45PK-P, D45PK-M
- Dimensions: 9-way - 31.0x36.3x15.0mm, 15-way - 39.5x40.3x15.0mm, 25-way - 53.2x40.3x15.0mm
Buy the Amphenol L17D45PK – Reliable Connector for Industrial Applications
Order the Amphenol L17D45PK screw type D-Sub connector kit online today for dependable performance across multiple sizes. Crafted with high-quality materials, it offers EMI shielding, corrosion resistance, and robust operation within a wide temperature range. Suitable for industrial, aerospace, and instrumentation applications, this connector ensures secure connections with re-openable features and supports wire sizes up to AWG 18. Make your purchase now to benefit from fast shipping, quality assurance, and long-term durability for your electrical needs.
Get Amphenol L17D45PK connector today—designed for high durability and reliable electrical connections in industrial environments.
Frequently Asked Questions
Where can I buy Amphenol-Communications-Solutions L17D45PKM25L77DB25SST?
You can click on the BUY or RFQ button to purchase L17D45PKM25L77DB25SST from an authorized Amphenol-Communications-Solutions distributor.
How do I troubleshoot issues or seek technical support for part L17D45PKM25L77DB25SST?
You can download the L17D45PKM25L77DB25SST datasheet or visit the Amphenol-Communications-Solutions website for support.
Who is the manufacturer of L17D45PKM25L77DB25SST?
Amphenol-Communications-Solutions
