AMPHENOL COMMUNICATIONS SOLUTIONS T816106A1S101CEU Latch Header
The T816 series latch header is a 2.54mm pitch connector suitable for PCB applications, available in 6 to 64 positions with various plating options including gold flashing and full tin. Made with PBT+25%G.F insulators and brass contacts plated with gold or tin over 50 micro-inches of nickel, it ensures reliable electrical connection with low contact resistance and high insulation resistance. It features straight, right-angled, or long latch options, with a maximum current rating of 3.0A. Operating temperature ranges from -40°C to +105°C, and it complies with RoHS standards, making it ideal for automation and control systems.
AMPHENOL COMMUNICATIONS SOLUTIONS T816106A1S101CEU Latch Header Specifications:
- Pitch: 2.54mm
- Number of Positions: 6, 8, 10, 14, 16, 18, 20, 24, 26, 35, 40, 48, 60, 64
- Housing Material: PBT+25%G.F, UL 94V-0
- Contact Material: Brass, Gold or Tin Plated over 50u" Ni
- Contact Resistance: 20 mΩ max at 1A
- Insulation Resistance: 1000 MΩ min at 500V/DC
- Dielectric Withstanding Voltage: 500VAC RMS, 60Hz for one minute
- Current Rating: 3.0A max
- Voltage Rating: 250V AC/RMS 60Hz, DC
- Operating Temperature: -40°C to +105°C
- Plating Options: Gold flash over 50u" Ni, Full Tin over 50u" Ni
- Termination: Straight THT, Right Angled, Long Latch
- RoHS Compliant
- Dimensions: PINS width varies from 5.08mm to 78.74mm depending on pin count.

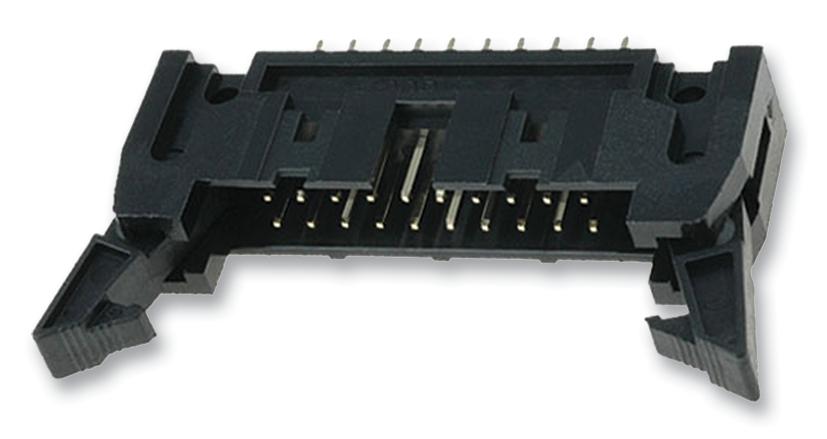

Buy the Buy Berg T816 Series Part Number T816106A1S101CEU Online
Discover the high-quality Berg T816 latch headers with 2.54mm pitch, available in various pin counts and plating options. These connectors feature reliable brass contacts, insulation resistance of over 1000 MΩ, and are suitable for operating temperatures from -40°C to +105°C. Ideal for automation and control systems, they comply with RoHS standards, offering models with straight, right-angled, and long latch styles. Order online today to secure dependable PCB connections for your electrical and electronic projects.
Order your Berg T816 series latch header with 6 to 64 positions today and ensure reliable PCB connections for automation and control projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T816106A1S101CEU?
You can click on the BUY or RFQ button to purchase T816106A1S101CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T816106A1S101CEU?
You can download the T816106A1S101CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T816106A1S101CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
